Mesh cable tray GR 55 FT
Type GR 55 50 FT
|Item no. 6000117
|EAN 4012196997992
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
m
Description

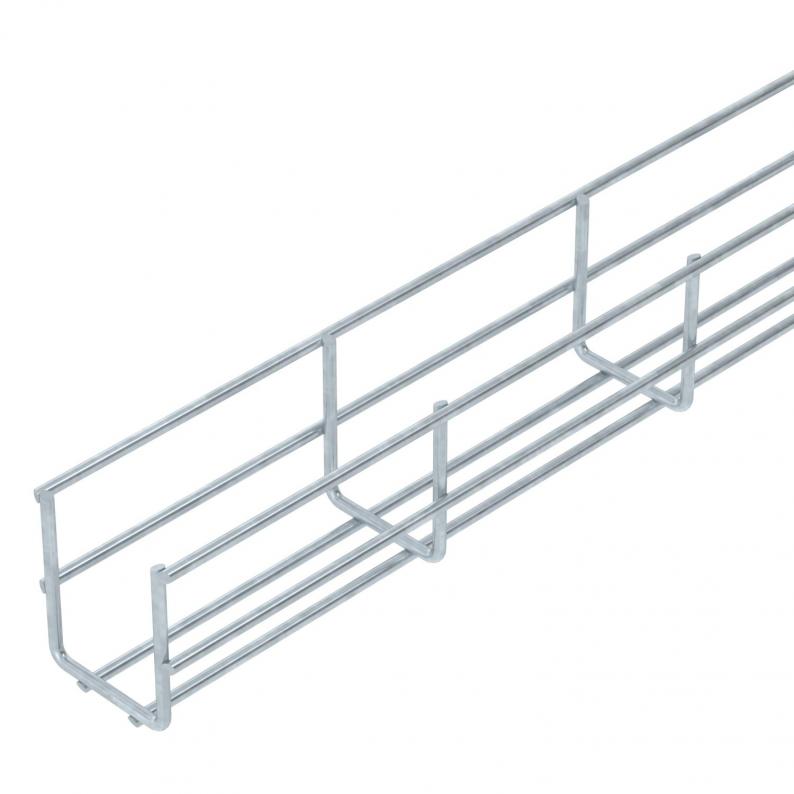

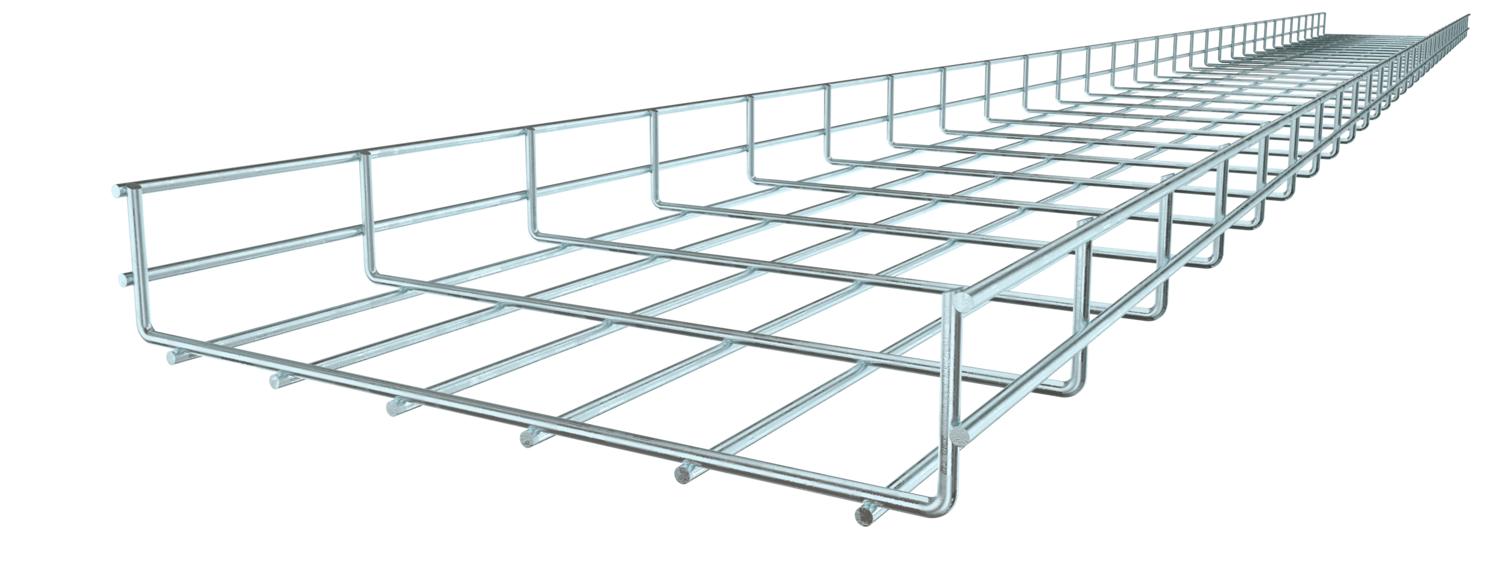

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

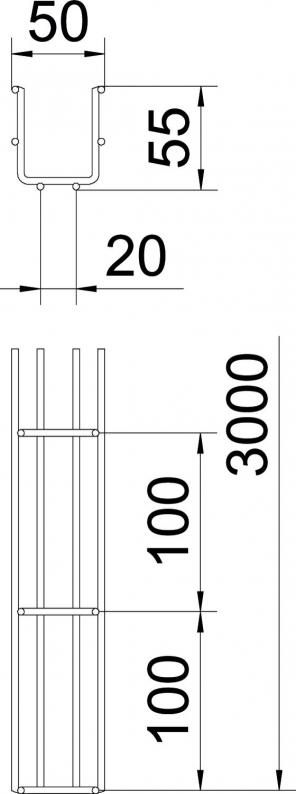

The grid dimension is 20 x 100 mm in the width 50 mm and 50 x 100 mm in the widths 100-600 mm.
Joint connectors GSV 34 should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 55 mm |
| Dimension B | 50 mm |
| Dimension H | 58 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 16 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 1600 mm² |
| Screwless connector | no |
| Wire diameter | 3,9 mm |
| Dimension | 55x50x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,1 kN/m |
|---|---|
| Support spacing 2.5 m | 0,1 kN/m |
| Support spacing 1.0 m | 0,35 kN/m |
| Support spacing 1.5 m | 0,2 kN/m |

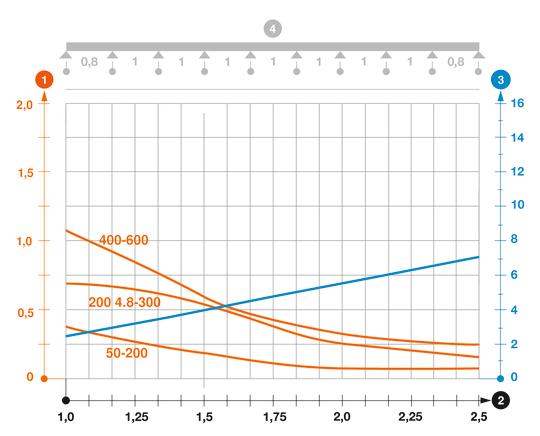

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (1)
Certificates (1)
Instructions and Aid (2)
Product images (3)
Tender specifications (2)
Variants
Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
Item no.
GR 55 100 FT
3000
100
55
no
40
3,9
6000118
GR 55 150 FT
3000
150
55
no
63
3,9
6000150
GR 55 300 FT
3000
300
55
no
129
4,8
6000304
GR 55 400 FT
3000
400
55
no
175
4,8
6000401
GR 55 500 FT
3000
500
55
no
220
4,8
6000509
GR 55 600 FT
3000
600
55
no
265
4,8
6000606
GR 55 200V FT
3000
200
55
no
87
4,8
6005039
GR 55 50 FT
3000
50
55
no
16
3,9
6000117
