Mesh cable tray GR 55 A2
Type GR 55 100 A2
|Item no. 6000908
|EAN 4012196000371
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Smallest selling unit: 3 m
3m
m
Description

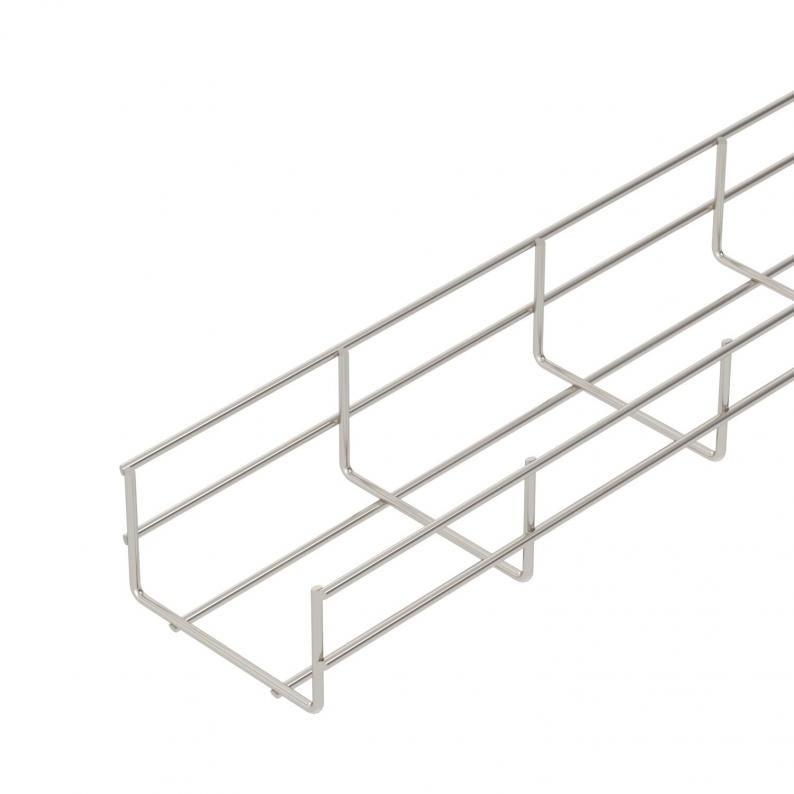

Mesh cable tray made of spot-welded steel wire of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

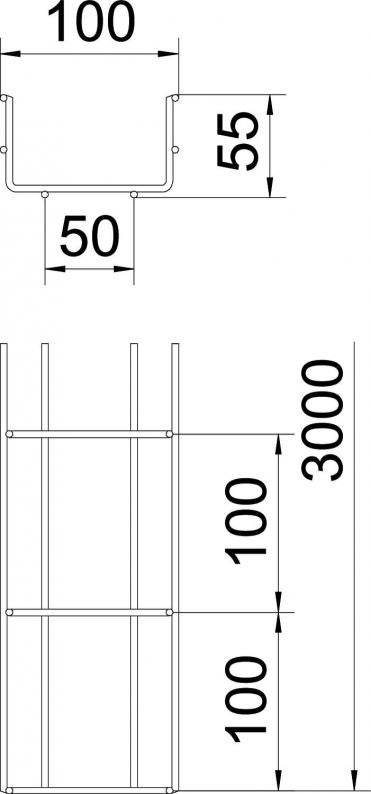

The grid dimension is 20 x 100 mm in the width 50 mm and 50 x 100 mm in the widths 100-600 mm.
Joint connectors GSV 34 should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 58 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 40 cm² |
| Rustproof steel, pickled | yes |
| Usable cross-section | 3900 mm² |
| Integrated partition | Without |
| Profile shape | U-shaped |
| Wire diameter | 3,8 mm |
| Dimension | 55x100x3000 |
| Surface | Pickled |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 1.0 m | 0,35 kN/m |
|---|---|
| Support spacing 1.5 m | 0,2 kN/m |
| Support spacing 2.0 m | 0,1 kN/m |
| Support spacing 2.5 m | 0,1 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (3)
Certificates (1)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
Item no.
GR 55 100 A2
3000
100
58
no
40
3,8
6000908
GR 55 150 A2
3000
150
58
no
63
3,8
6000912
GR 55 200V A2
3000
200
58
no
87
4,8
6000916
GR 55 300 A2
3000
300
58
no
129
4,8
6000924
GR 55 400 A2
3000
400
58
no
175
4,8
6000932
GR 55 500 A2
3000
500
58
no
220
4,8
6000940
GR 55 600 A2
3000
600
58
no
265
4,8
6000959
GR 55 050 A2
3000
50
58
no
19
3,8
6000904
