Mesh cable tray GR 105 FT
Type GR 105 100 FT
|Item no. 6003109
|EAN 4012196002412
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no
Smallest selling unit: 3 m
3m
m
Description

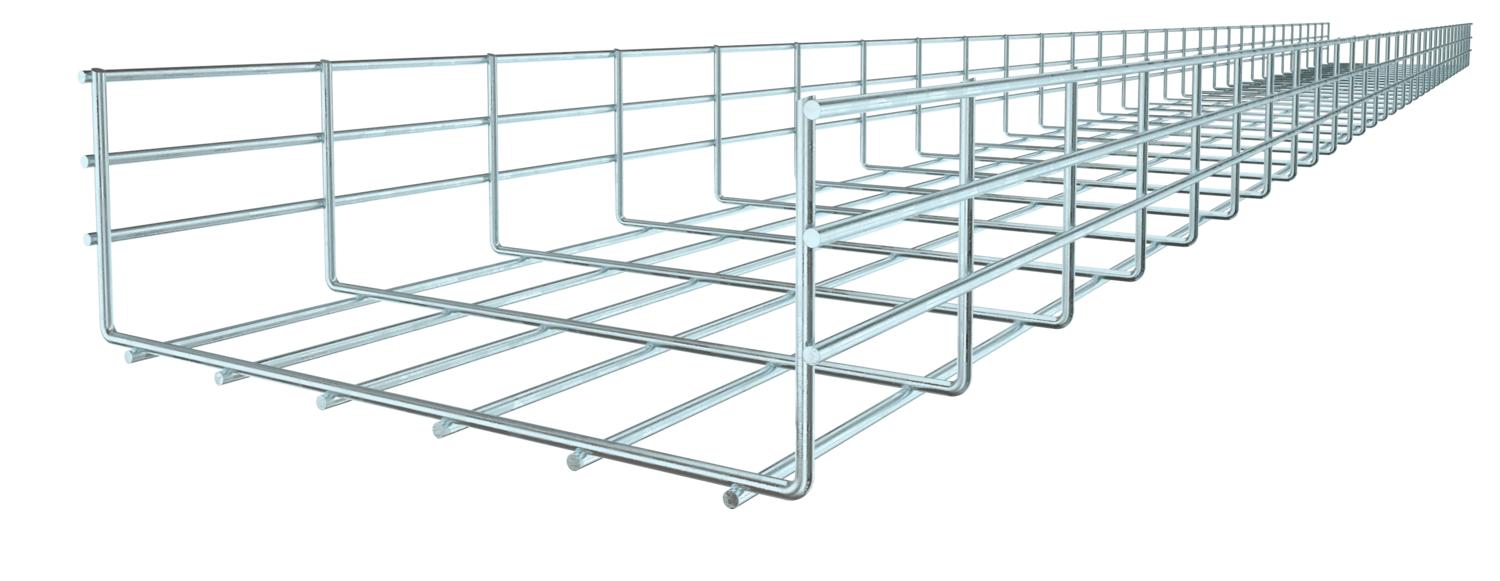

Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.
The grid dimension is 50 x 100 mm.
Joint connectors GSV 34 should be ordered separately and in the appropriate quantity.
Technical data

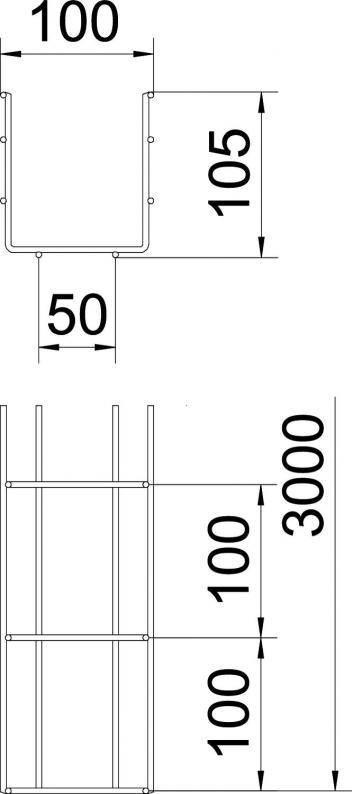

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 105 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 82 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 8200 mm² |
| Integrated partition | Without |
| Profile shape | U-shaped |
| Wire diameter | 3,9 mm |
| Dimension | 105x100x3000 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,15 kN/m |
|---|---|
| Support spacing 2.5 m | 0,15 kN/m |
| Support spacing 1.0 m | 0,55 kN/m |
| Support spacing 1.5 m | 0,35 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (7)
Declarations (1)
Certificates (1)
Instructions and Aid (3)
Product images (3)
Tender specifications (2)
Variants
Type
Length
Width
Height
Maintain electrical functions
Usable cross-section
Wire diameter
Item no.
GR 105 100 FT
3000
100
105
no
82
3,9
6003109
GR 105 150 FT
3000
150
105
no
130
3,9
6003168
GR 105 200 FT
3000
200
105
no
175
4,8
6003206
GR 105 300 FT
3000
300
105
no
268
4,8
6003303
GR 105 400 FT
3000
400
105
no
363
4,8
6003400
GR 105 500 FT
3000
500
105
no
459
4,8
6003508
GR 105 600 FT
3000
600
105
no
554
4,8
6003605
Width
Usable cross-section
Wire diameter
GR 105 100 FT
Item no.
6003109
Length
3000
Width
100
Height
105
Maintain electrical functions
no
Usable cross-section
82
Wire diameter
3,9
GR 105 150 FT
Item no.
6003168
Length
3000
Width
150
Height
105
Maintain electrical functions
no
Usable cross-section
130
Wire diameter
3,9
GR 105 200 FT
Item no.
6003206
Length
3000
Width
200
Height
105
Maintain electrical functions
no
Usable cross-section
175
Wire diameter
4,8
GR 105 300 FT
Item no.
6003303
Length
3000
Width
300
Height
105
Maintain electrical functions
no
Usable cross-section
268
Wire diameter
4,8
GR 105 400 FT
Item no.
6003400
Length
3000
Width
400
Height
105
Maintain electrical functions
no
Usable cross-section
363
Wire diameter
4,8
GR 105 500 FT
Item no.
6003508
Length
3000
Width
500
Height
105
Maintain electrical functions
no
Usable cross-section
459
Wire diameter
4,8
GR 105 600 FT
Item no.
6003605
Length
3000
Width
600
Height
105
Maintain electrical functions
no
Usable cross-section
554
Wire diameter
4,8
