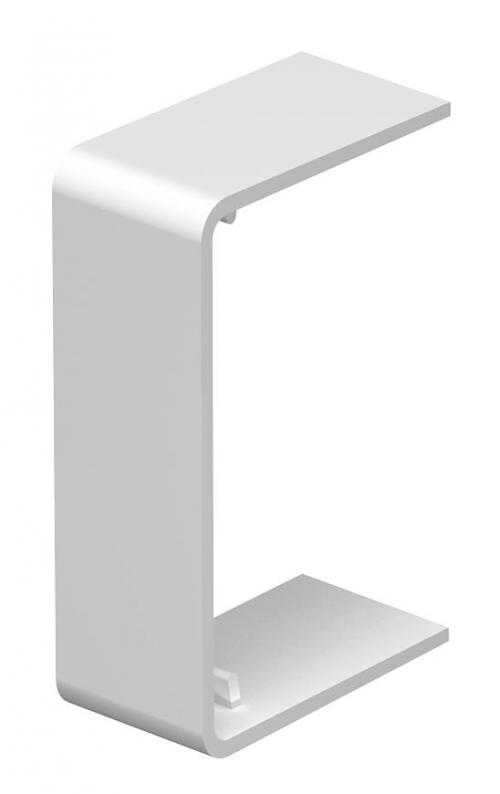

Joint cover, for trunking, type WDK 60090

Joint cover, for trunking, type WDK 60090

Type WDK HS60090RW
|
Item no. 6193590
|
EAN 4012195461838
Show all variants
Item no. / Type
Colour

Smallest selling unit: 20 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Joint cover for hiding cut edges and for smooth connection of trunking segments.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length18 mm
Width94 mm
Height62 mm

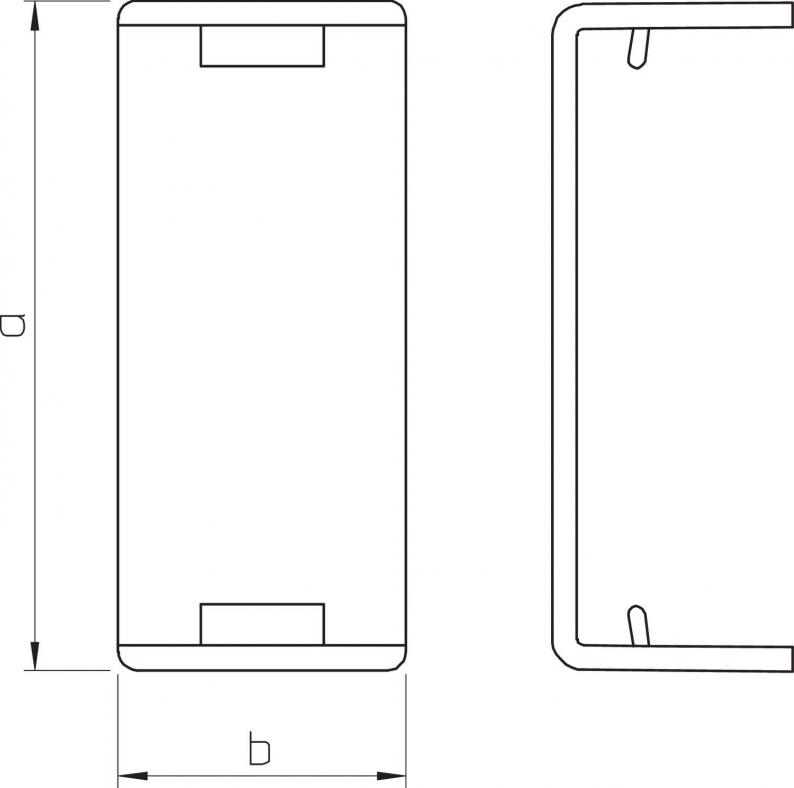

Dimension b18 mm
Dimension a94 mm

Technical data

Halogen-freeno
Protection ratingIP30
Protection rating IK codeIK04
ShapeSymmetrical
Version forTrunking cut cover
Fastening typeLockable
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension62x93x18mm
MaterialPolyvinylchloride
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,0481 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Colour
WDK HS60090RW
Item no.
6193590
Colour
Pure white; RAL 9010
WDK HS60090CW
Item no.
6193592
Colour
Cream; RAL 9001
