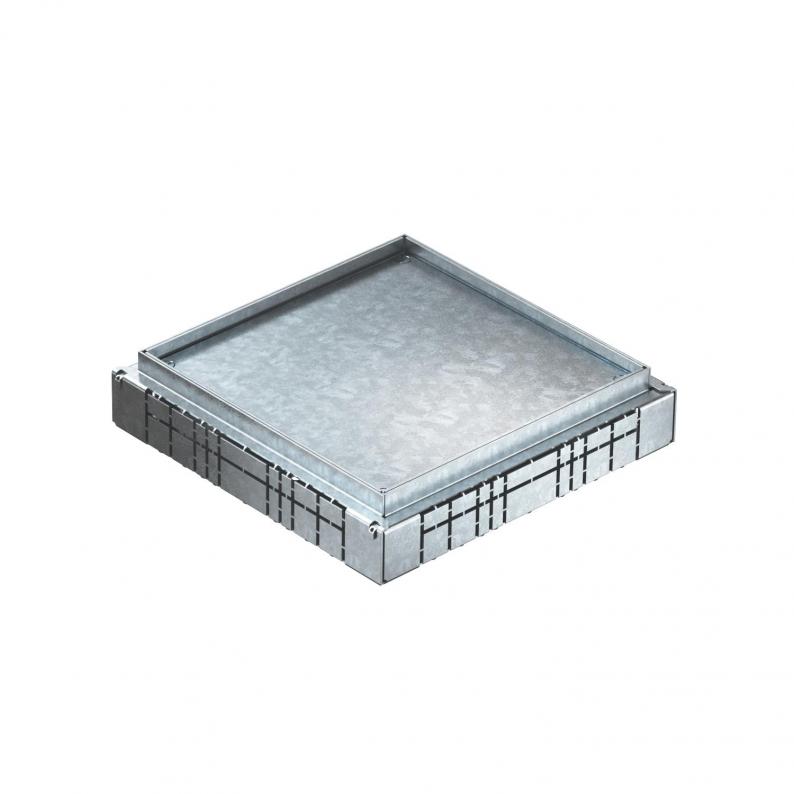

JBT underfloor junction box - for MD duct
Type JBT 20038 10 1.6
|Item no. 7490088
|EAN 4012197006990
Item no. / Type
Trunking width, min.
Trunking width, max.
Smallest selling unit: 1 piece
1piece
piece
Description
Underfloor junction box for metal ducts in the heights 25 mm and 38 mm.
Technical data
Technical data
| Suitable for screed-covered underfloor ducts | yes |
|---|---|
| Trunking width, min. | 50 mm |
| Trunking width, max. | 200 mm |
| Installation opening for on-floor tank | no |
| Decouplable | no |
| Floor plate | yes |
| Expansion option | For installation of accessories |
| For pipe connection | no |
| Dimension | 272x272x60 |
| Surface | Strip galvanized |
| Material | Steel |

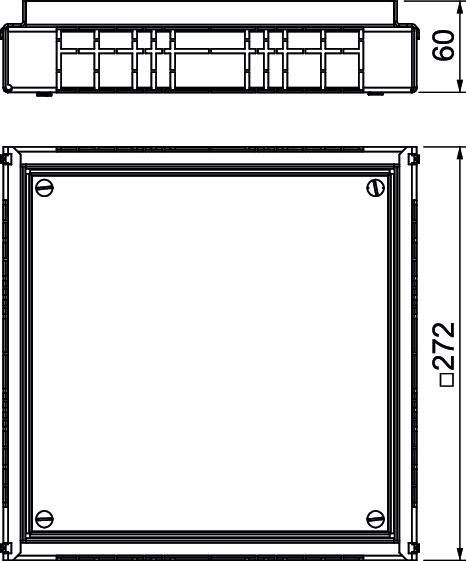

Dimensions
| Dimension h | 60 mm |
|---|
Downloads
0 selected
Data sheet (1)
Product images (2)
Tender specifications (2)
Variants
Type
Trunking width, min.
Trunking width, max.
Item no.
JBT 10038 10 1.6
50
100
7490087
JBT 20038 10 1.6
50
200
7490088
JBT 25038 10 1.6
50
250
7490089
JBT 30038 10 1.6
50
300
7490090
Trunking width, max.
JBT 10038 10 1.6
Item no.
7490087
Trunking width, min.
50
Trunking width, max.
100
JBT 20038 10 1.6
Item no.
7490088
Trunking width, min.
50
Trunking width, max.
200
JBT 25038 10 1.6
Item no.
7490089
Trunking width, min.
50
Trunking width, max.
250
JBT 30038 10 1.6
Item no.
7490090
Trunking width, min.
50
Trunking width, max.
300
