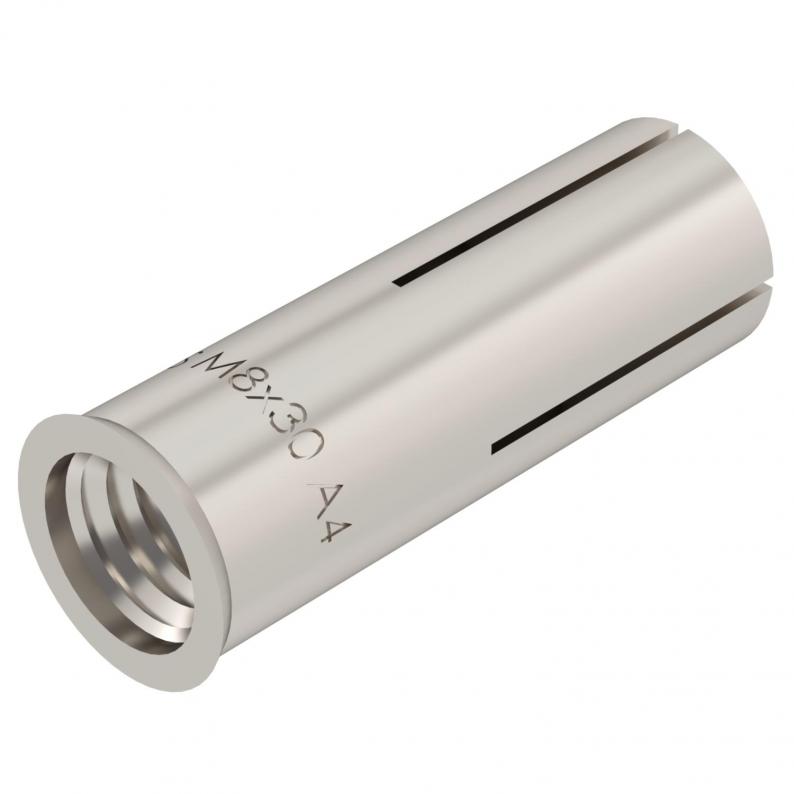

Impact tie, version with collar
Type ES M 8x30 A4
|Item no. 3492003
|EAN 4012196709557
Item no. / Type
3492003 / ES M 8x30 A4
Thread
M8
Permitted load range, tension zone
1,7
Smallest selling unit: 50 piece
50piece
piece
Description
Impact tie for single fastening of non-load-bearing systems in non-cracked concrete as well as for multiple fastening in cracked and non-cracked concrete.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
Technical data

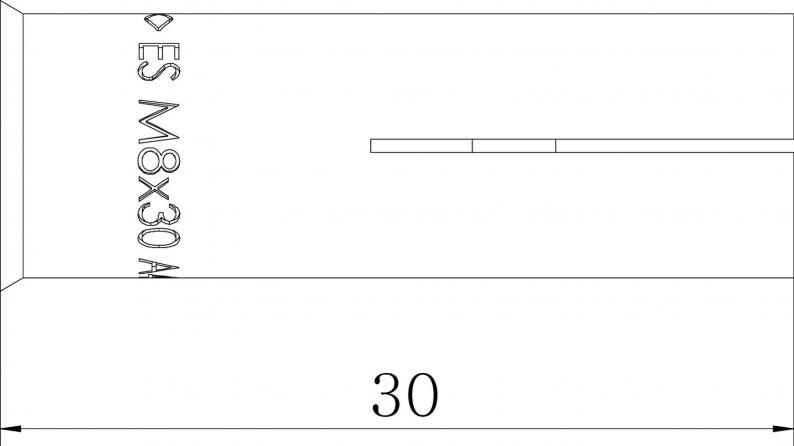

Dimensions
| Length | 30 mm |
|---|---|
| Dimension L | 30 mm |
Technical data
| Thread metric | 8 |
|---|---|
| Thread | M8 |
| Self-drilling | no |
| Approvals available | yes |
| Fastening unit | Miscellaneous |
| Version for | Lightning strike |
| Drill hole diameter, min. | 10 mm |
| Drill hole depth | 30 mm |
| Permitted load range, tension zone | 1,7 |
| Screw-in depth, min. | 9 mm |
| Screw-in depth, max. | 13 mm |
| Thread type | Metric |
| Dimension | 8x30 |
| Material | Stainless steel |
| Colour | stainless steel |
| Suitable for material | Concrete |
| Mounting type, anchor, tie | Pre-mounting |
