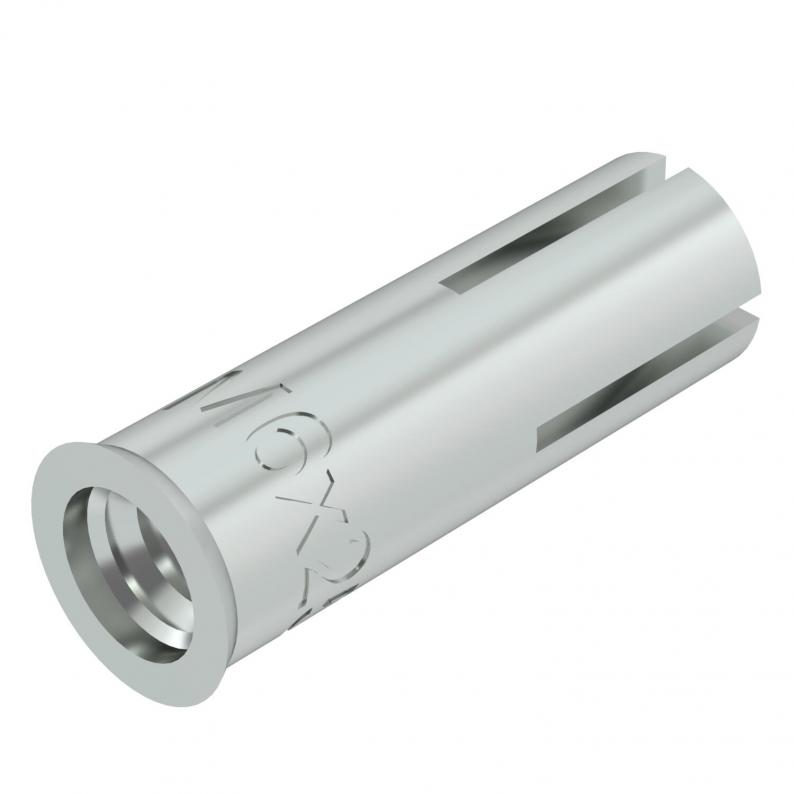

Impact tie, version with collar
Type ES M 6x25
|Item no. 3492018
|EAN 4012196709601
Item no. / Type
Length
Thread
Permitted load range, tension zone
Smallest selling unit: 100 piece
100piece
piece
Description
Impact tie for single fastening of non-load-bearing systems in non-cracked concrete as well as for multiple fastening in cracked and non-cracked concrete.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
Tested to fire protection standards, fire resistance class R 120 according to European Technical Approval ETA-02/0020 (option 7) and European Technical Approval ETA-05/0116.
Mounting with marking and setting tool.
Technical data
Dimensions

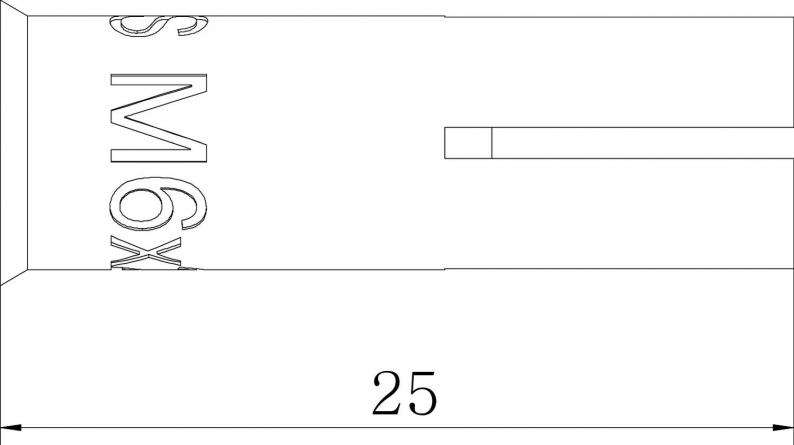

| Length | 25 mm |
|---|---|
| Dimension L | 25 mm |
Technical data
| Thread metric | 6 |
|---|---|
| Thread | M6 |
| Self-drilling | no |
| Approvals available | yes |
| Fastening unit | Miscellaneous |
| Version for | Lightning strike |
| Drill hole diameter, min. | 8 mm |
| Drill hole depth | 25 mm |
| Permitted load range, tension zone | 1,7 |
| Screw-in depth, min. | 6 mm |
| Screw-in depth, max. | 12 mm |
| Dimension | 6x25 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
| Suitable for material | Concrete |
| Mounting type, anchor, tie | Pre-mounting |
