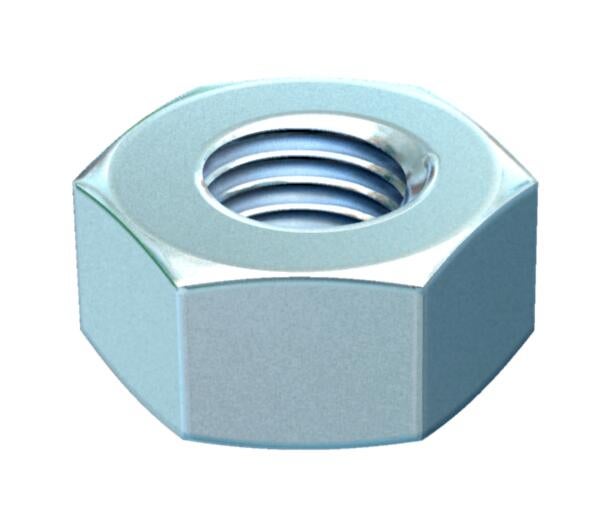

Hexagonal nut DIN 934 G
Type HN M8 IN G
|Item no. 3400088
|EAN 4012197498429
Item no. / Type
Dimension d
Dimension h
WAF
Smallest selling unit: 100 piece
100piece
piece
Description
Hexagonal nut according to DIN 934 with metric thread. Tightness class 8.8
Technical data

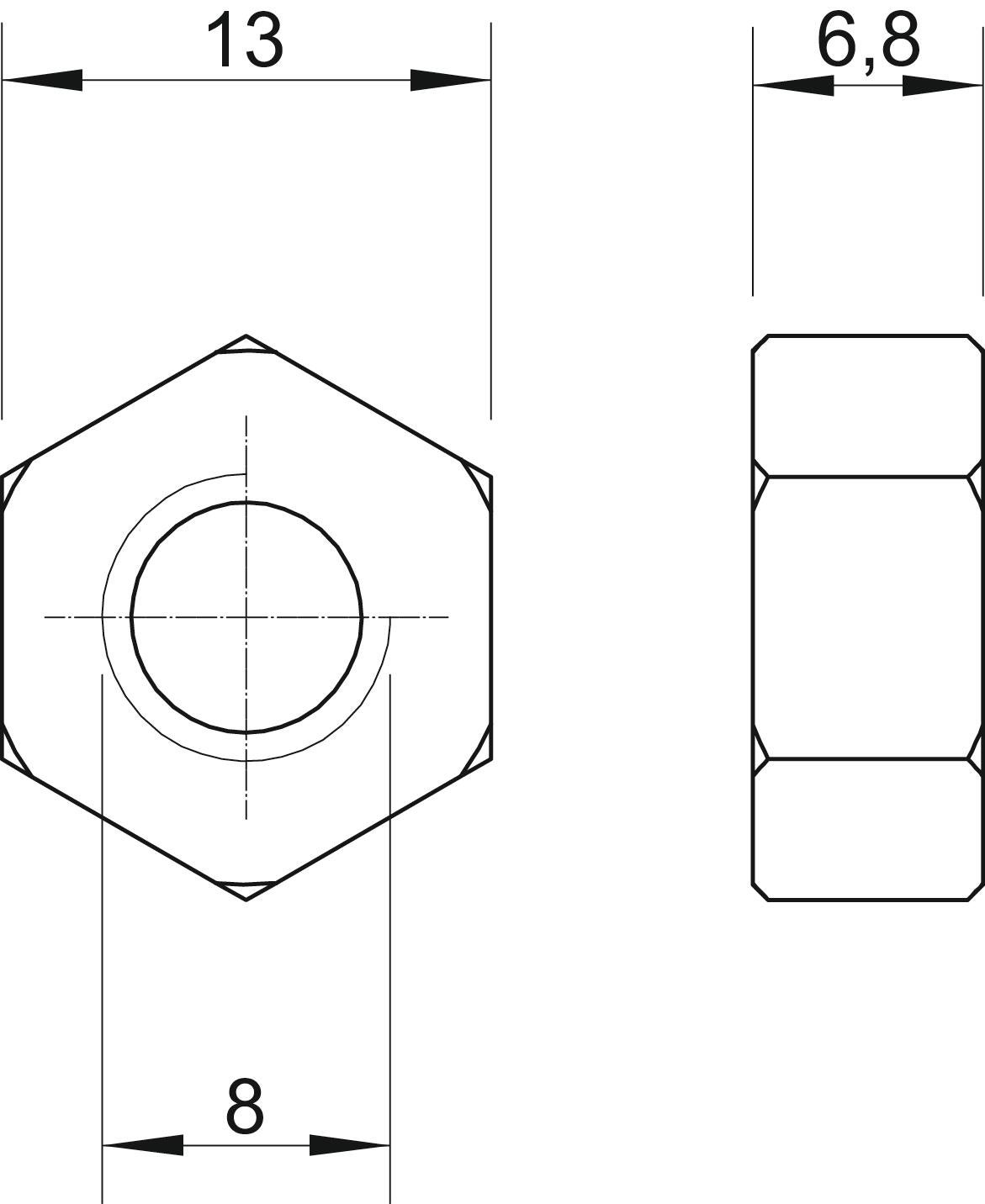

Dimensions
| Dimension d | 8 mm |
|---|---|
| Dimension h | 6,5 mm |
Technical data
| Thread | M8 |
|---|---|
| Thread type | Metric |
| Resistance grade | 8.8 |
| With flange | no |
| WAF | 13 |
| Dimension | M8 |
| Surface | Electrogalvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Declarations (1)
Product images (2)
Tender specifications (1)
Variants
Type
Dimension d
Dimension h
WAF
Item no.
HN M10 IN G
10
8
17
3400110
HN M8 IN G
8
6,5
13
3400088
HN M6 IN G
6
5
10
3400072
HN M12 IN G
12
10
19
3400126
HN M8 G
8
6,8
13
3400085
HN M10 G
10
8,4
17
3400107
HN M12 G
12
10,8
19
3400123
Dimension d
Dimension h
WAF
HN M10 IN G
Item no.
3400110
Dimension d
10
Dimension h
8
WAF
17
HN M8 IN G
Item no.
3400088
Dimension d
8
Dimension h
6,5
WAF
13
HN M6 IN G
Item no.
3400072
Dimension d
6
Dimension h
5
WAF
10
HN M12 IN G
Item no.
3400126
Dimension d
12
Dimension h
10
WAF
19
HN M8 G
Item no.
3400085
Dimension d
8
Dimension h
6,8
WAF
13
HN M10 G
Item no.
3400107
Dimension d
10
Dimension h
8,4
WAF
17
HN M12 G
Item no.
3400123
Dimension d
12
Dimension h
10,8
WAF
19
