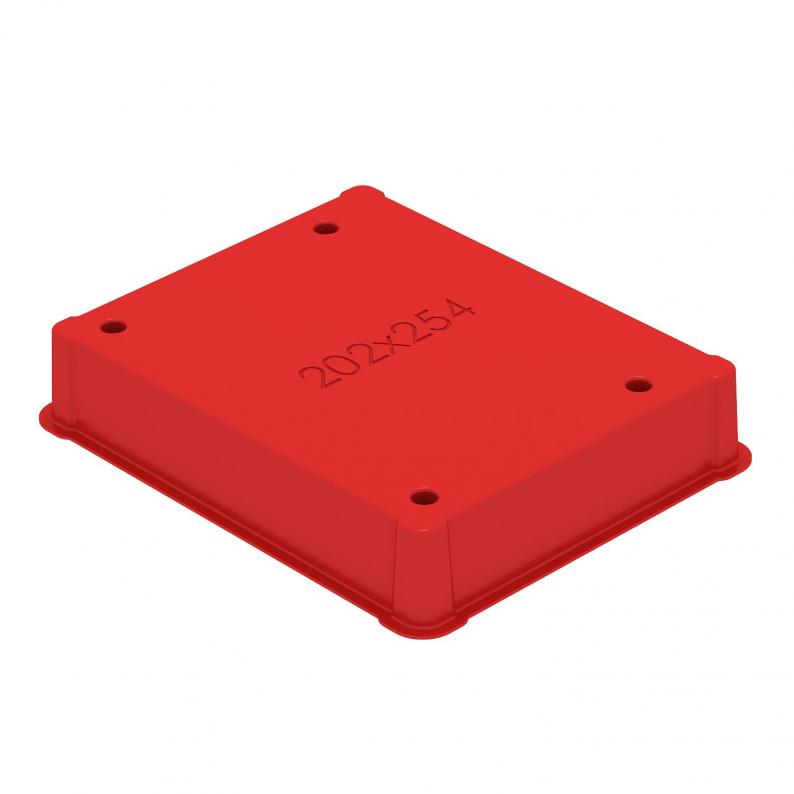

Height extension kit for underfloor box 202 x 245
Type SKE 202X254
|Item no. 7404396
|EAN 4012195759669
Item no. / Type
7404396 / SKE 202X254
Smallest selling unit: 1 piece
1piece
piece
Description
Screed protection cover elevation for raising the UDS or a screed protection cover for installation openings of nominal size 6. Elevation by 40 mm.
Technical data

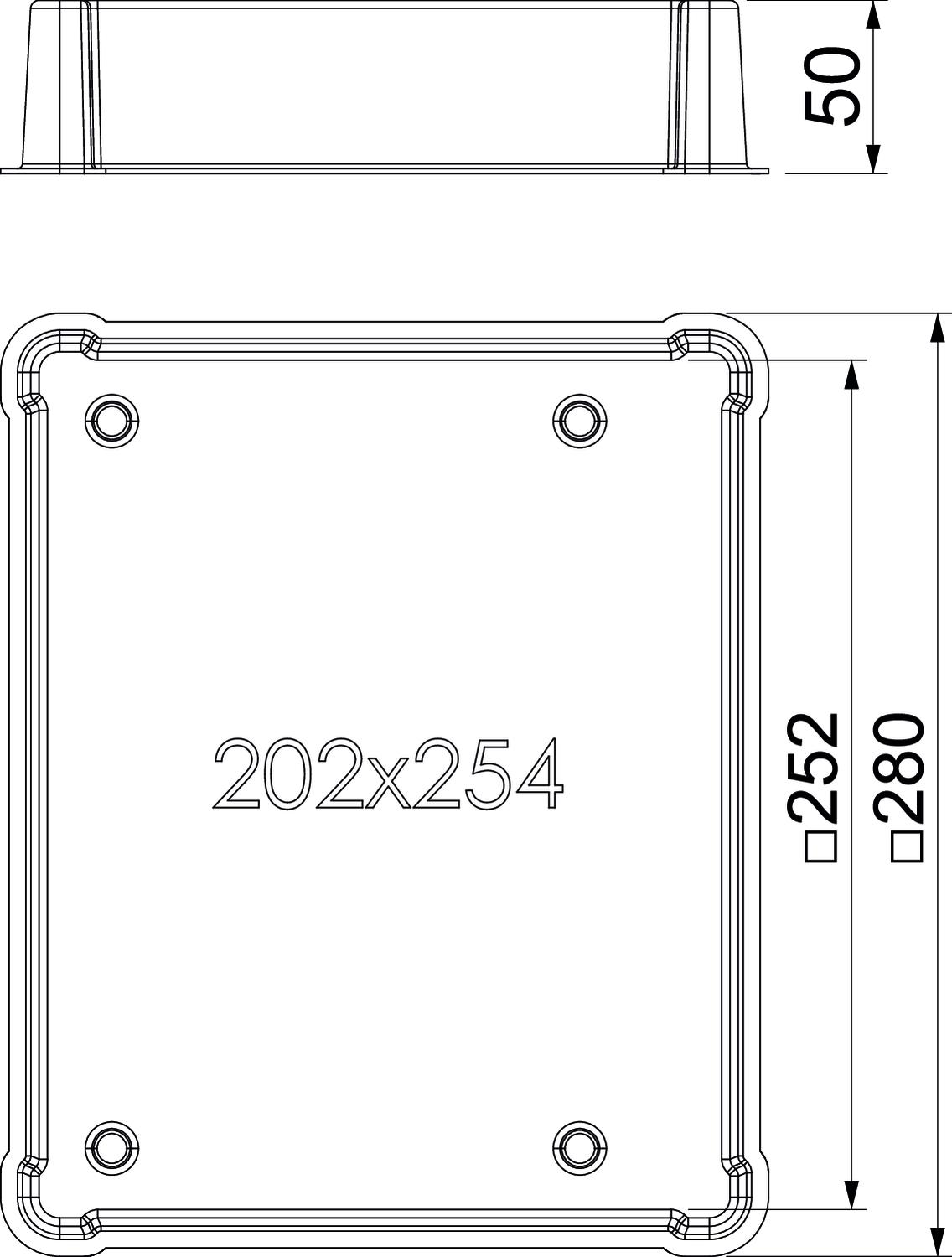

Dimensions
| Length | 254 mm |
|---|---|
| Width | 202 mm |
| Height | 50 mm |
| Dimension A | 202 mm |
Technical data
| Nominal size for device installation units | 6 |
|---|---|
| Dimension | 280x228x50 |
| Material | Polystyrene |
| Colour | verkehrsrot; RAL 3020 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,6596 kg CO2e / 1 Piece |
