Heavy-duty cable tray SGR 105 FT

Heavy-duty cable tray SGR 105 FT

Type SGR 105 200 FT
|
Item no. 6003214
|
EAN 4012195670742
Show all variants
Item no. / Type
Length
Width
Height
Usable cross-section
Wire diameter
Maintain electrical functions
no

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsAccessoriesVariants

Description

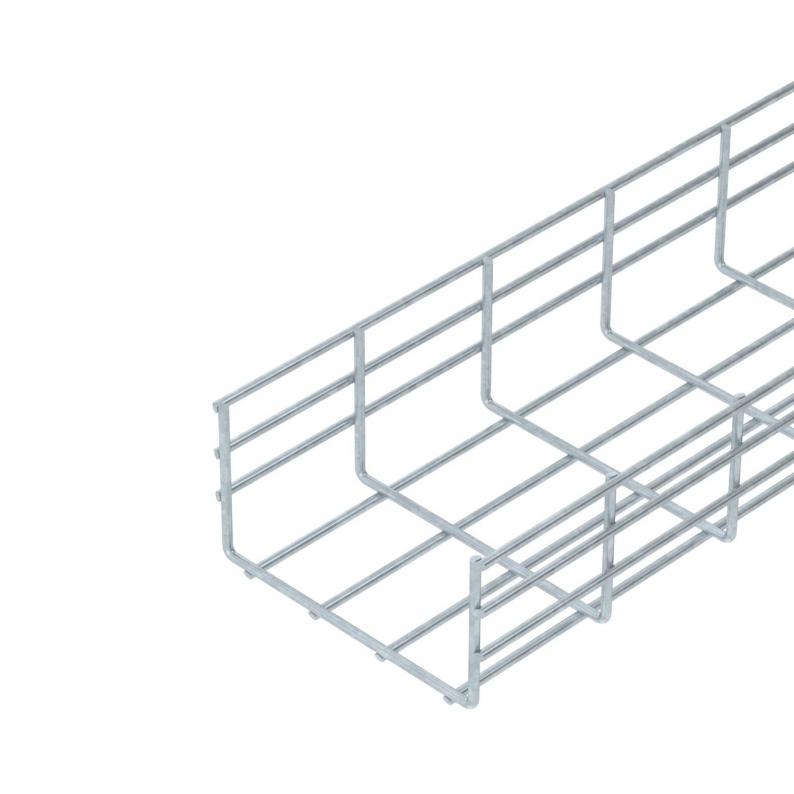

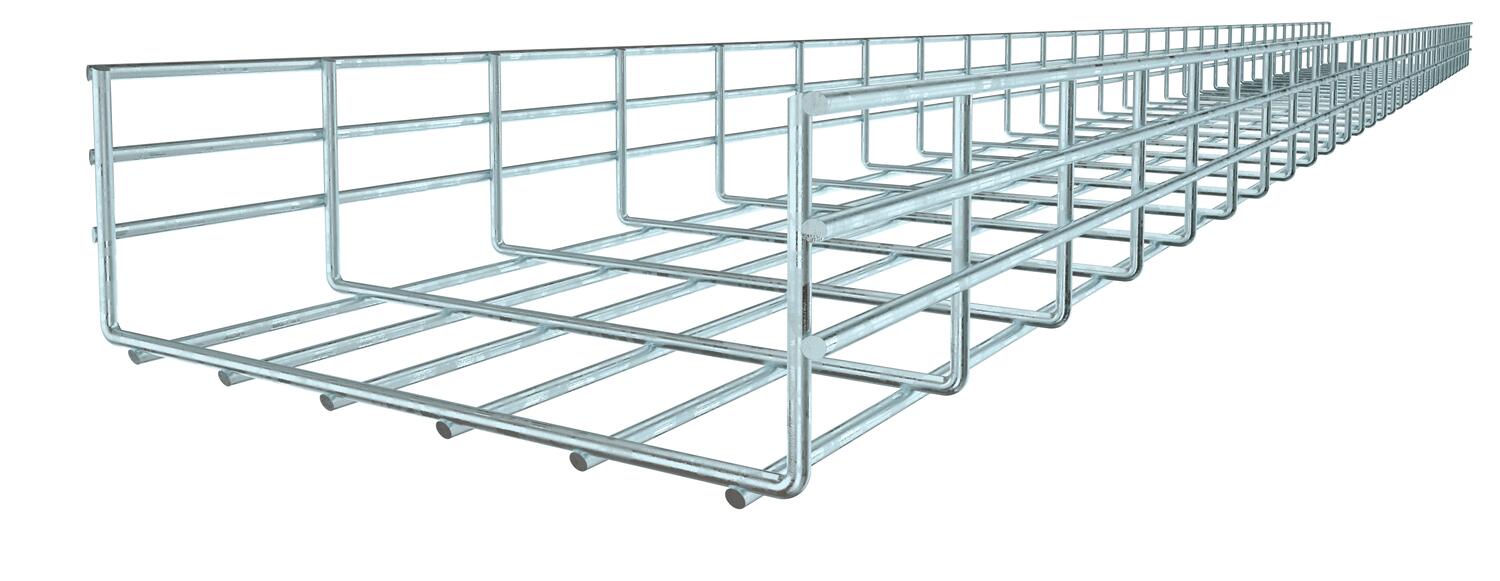

Mesh cable tray made of spot-welded steel wire of side height 105 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

The grid width is 50 x 100 mm.

  • Magnetic shield insulation
  • Underwriters Laboratories Inc., USA
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 105 mm
  • Environmental Product Declaration (EPD)
  • CO₂ footprint (PCF)

Technical data

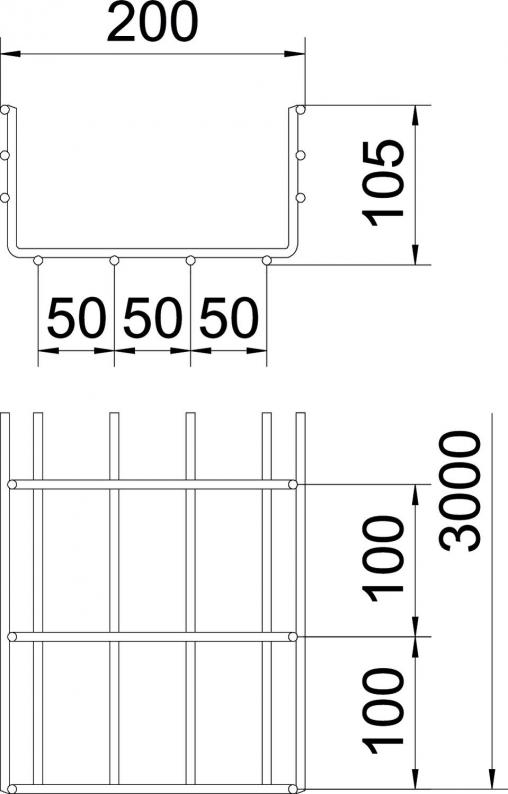

Dimensions

Length3000 mm
Width200 mm
Height105 mm
Dimension B200 mm

Technical data

Maintain electrical functionsno
Connector versionWithout connectors
Wide-span versionno
Usable cross-section175 cm²
Rustproof steel, pickledno
Usable cross-section17500 mm²
Profile shapeU-shaped
Wire diameter6 mm
Dimension105x200x3000
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate6,2968 kg CO2e / 1 Meter

Loads

Support spacing 2.0 m1,15 kN/m
Support spacing 2.5 m0,79 kN/m
Support spacing 1.0 m3,1 kN/m
Support spacing 3.0 m0,6 kN/m
Support spacing 3.5 m0,5 kN/m
Support spacing 4.0 m0,4 kN/m
Support spacing 1.5 m1,75 kN/m

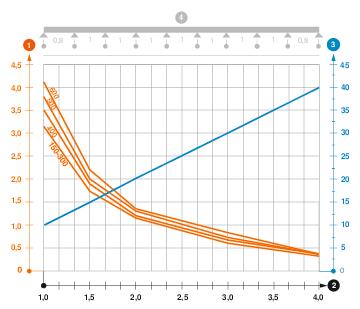

Load diagram, mesh cable tray, type SGR 105

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Accessories

Mounting accessories
System accessories

Item no. 6003758

End cap
Type
SGR KS OR

Smallest selling unit: 500 piece

piece

Type
DKU A2

Smallest selling unit: 20 piece

piece

Item no. 6220142

Exit plate FT
Type
KAB GR FT

Smallest selling unit: 10 piece

piece

Variants

Width
Usable cross-section
SGR 105 150 FT
Item no.
6003175
Length
3000
Width
150
Height
105
Maintain electrical functions
no
Usable cross-section
130
Wire diameter
6
SGR 105 200 FT
Item no.
6003214
Length
3000
Width
200
Height
105
Maintain electrical functions
no
Usable cross-section
175
Wire diameter
6
SGR 105 300 FT
Item no.
6003309
Length
3000
Width
300
Height
105
Maintain electrical functions
no
Usable cross-section
268
Wire diameter
6
SGR 105 400 FT
Item no.
6003402
Length
3000
Width
400
Height
105
Maintain electrical functions
no
Usable cross-section
363
Wire diameter
6
SGR 105 500 FT
Item no.
6003515
Length
3000
Width
500
Height
105
Maintain electrical functions
no
Usable cross-section
459
Wire diameter
6
SGR 105 600 FT
Item no.
6003616
Length
3000
Width
600
Height
105
Maintain electrical functions
no
Usable cross-section
554
Wire diameter
6
