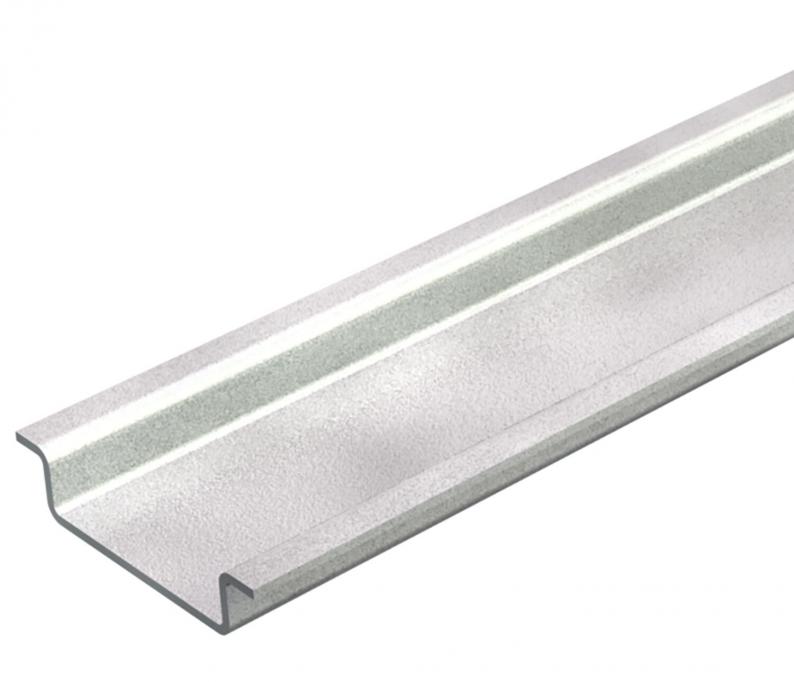

Hat profile rail, unperforated FS
Type 2069 2M FS
|Item no. 1115626
|EAN 4012195045311
Item no. / Type
Length
Surface
Version for
Unperforated
Material
Steel
Smallest selling unit: 50 m
50m
m
Description

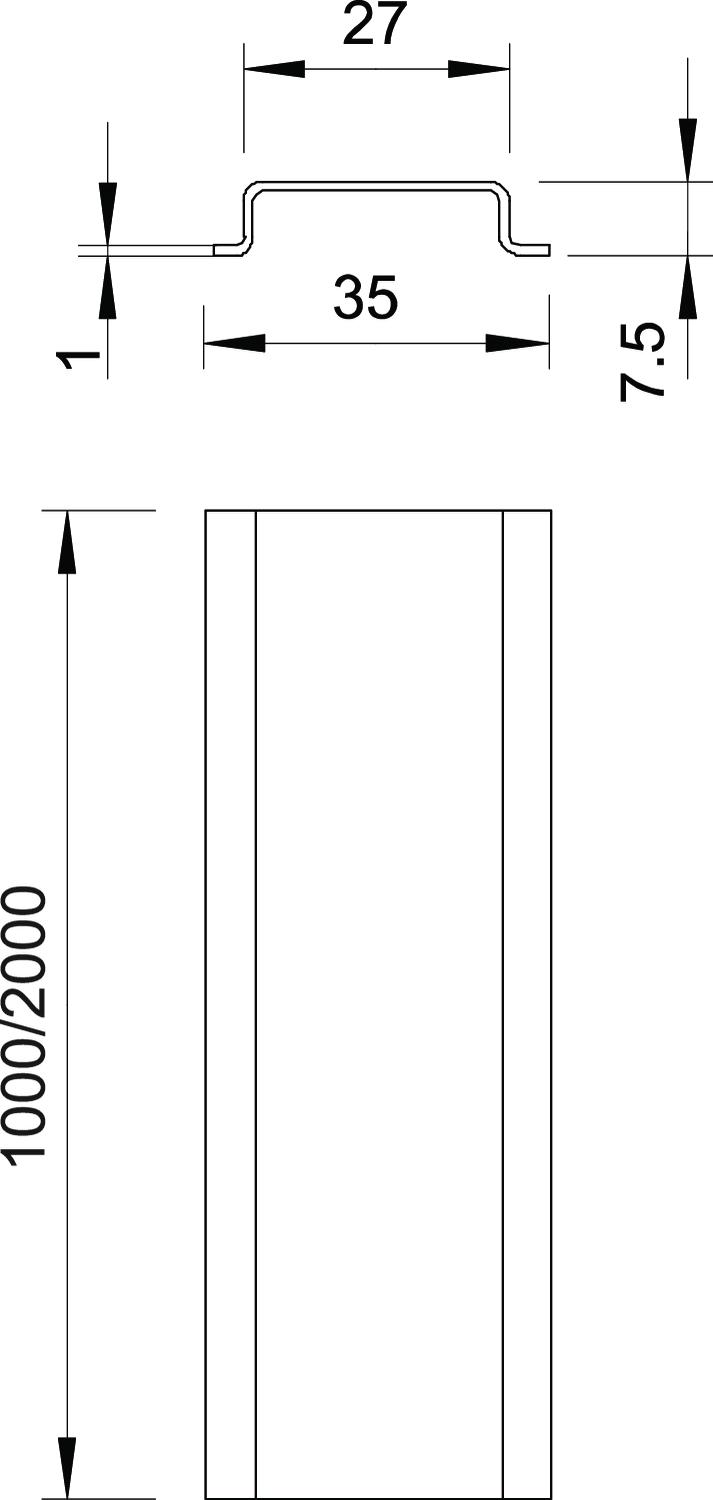

Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 35 mm |
| Height | 7,5 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Version, rails | Support rail DIN EN 60715 |
| Hole shape (ETIM) | Without |
| Version for | Unperforated |
| Bundle | 50 m |
| Dimension | 2000x35x7,5 |
| Surface | Strip galvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7825 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Version for
Surface
Material
Item no.
2069 2M FS
2000
Unperforated
Strip galvanized
Steel
1115626
2069 2M GTP
2000
Unperforated
Electrogalvanized, transparently passivated
Steel
1115650
2069 1M FS
1000
Unperforated
Strip galvanized
Steel
1115677
2069 1M GTP
1000
Unperforated
Electrogalvanized, transparently passivated
Steel
1115685
Length
Surface
2069 2M FS
Item no.
1115626
Length
2000
Version for
Unperforated
Surface
Strip galvanized
Material
Steel
2069 2M GTP
Item no.
1115650
Length
2000
Version for
Unperforated
Surface
Electrogalvanized, transparently passivated
Material
Steel
2069 1M FS
Item no.
1115677
Length
1000
Version for
Unperforated
Surface
Strip galvanized
Material
Steel
2069 1M GTP
Item no.
1115685
Length
1000
Version for
Unperforated
Surface
Electrogalvanized, transparently passivated
Material
Steel
