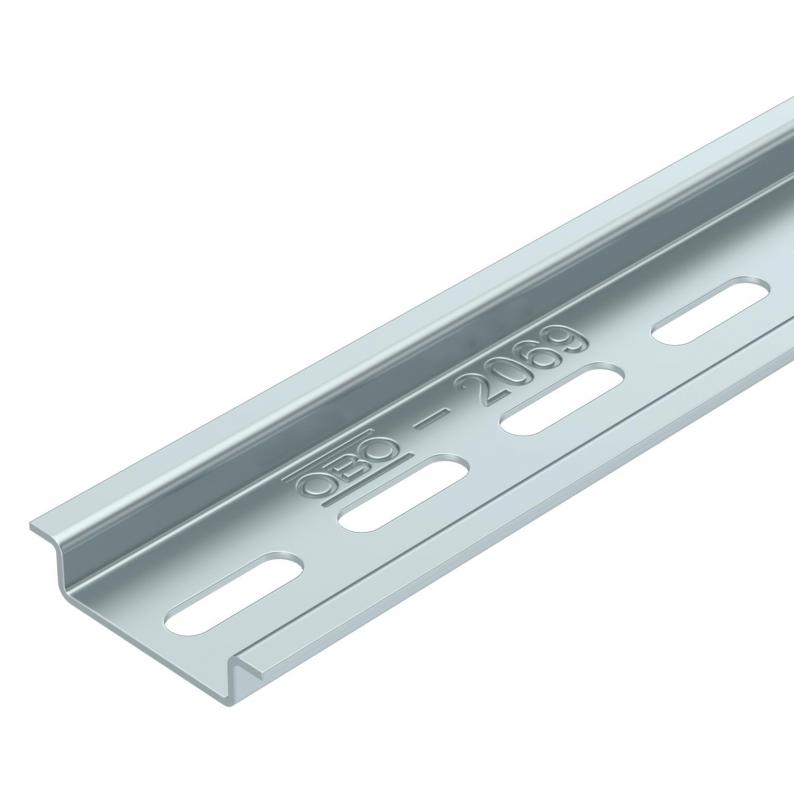

Hat profile rail, perforated
Type 2069 1M GTPL
|Item no. 1115667
|EAN 4012197434472
Item no. / Type
Length
Surface
Version for
Perforated
Material
Steel
Smallest selling unit: 25 m
25m
m
Description
Hat profile rail 35 x 7.5 mm to DIN EN 60715 (formerly DIN EN 50022).
Technical data

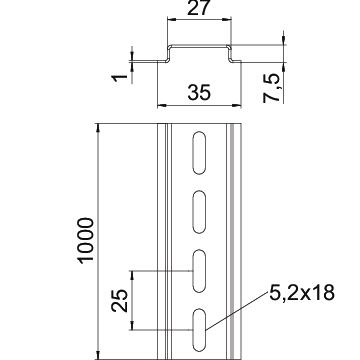

Dimensions
| Length | 1000 mm |
|---|---|
| Width | 35 mm |
| Height | 7,5 mm |
Technical data
| Material thickness | 1 mm |
|---|---|
| Drill hole spacing, centre | 25 mm |
| Version, rails | Support rail DIN EN 60715 |
| Hole shape (ETIM) | Long slot |
| Version for | Perforated |
| Bundle | 25 m |
| Dimension | 1000x35x7,5 |
| Surface | Electrogalvanized, transparently passivated |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Version for
Surface
Material
Item no.
2069 L 1M FS
1000
Perforated
Strip galvanized
Steel
1115800
2069 1M GTPL
1000
Perforated
Electrogalvanized, transparently passivated
Steel
1115667
