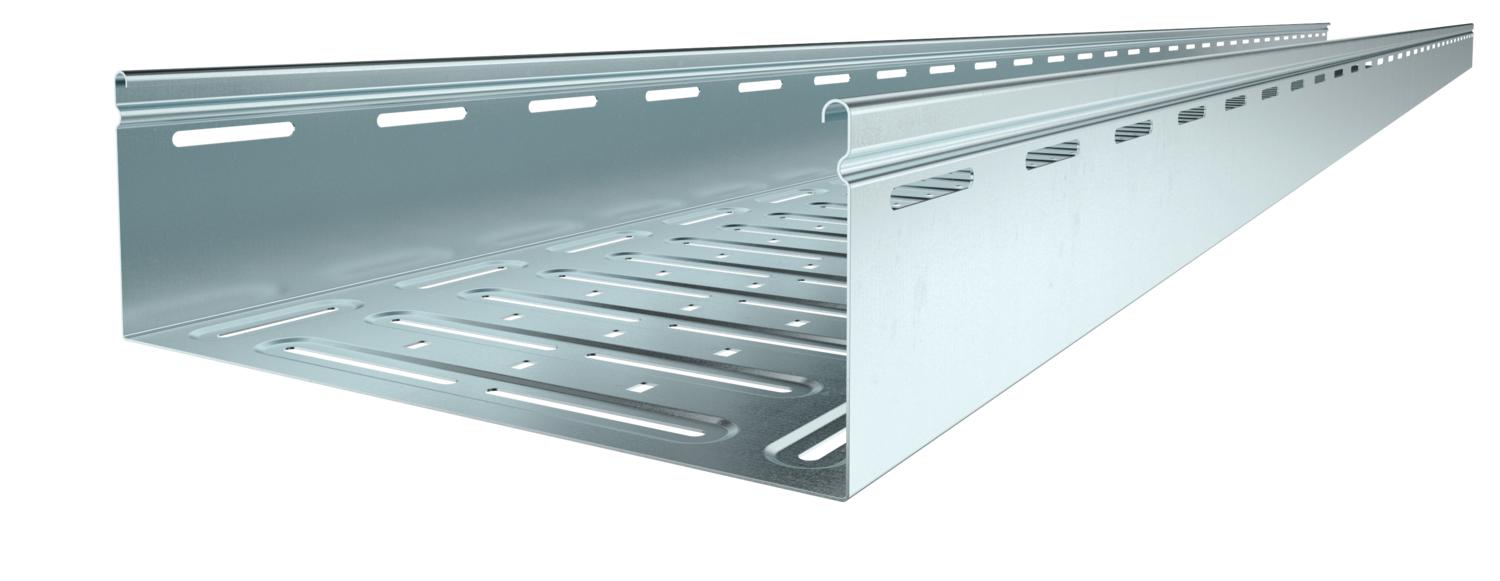

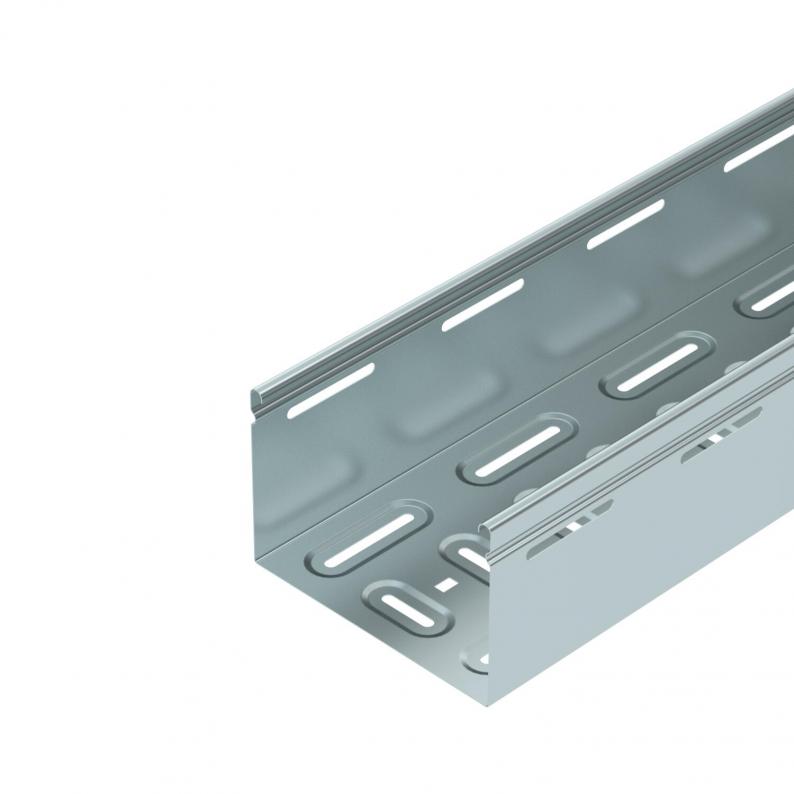

GX cable tray, perforated, FS
Type GKS GX 115 FS
|Item no. 6480052
|EAN 4012195486558
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
GKS 100 GX = perforated cable tray system with 100 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data

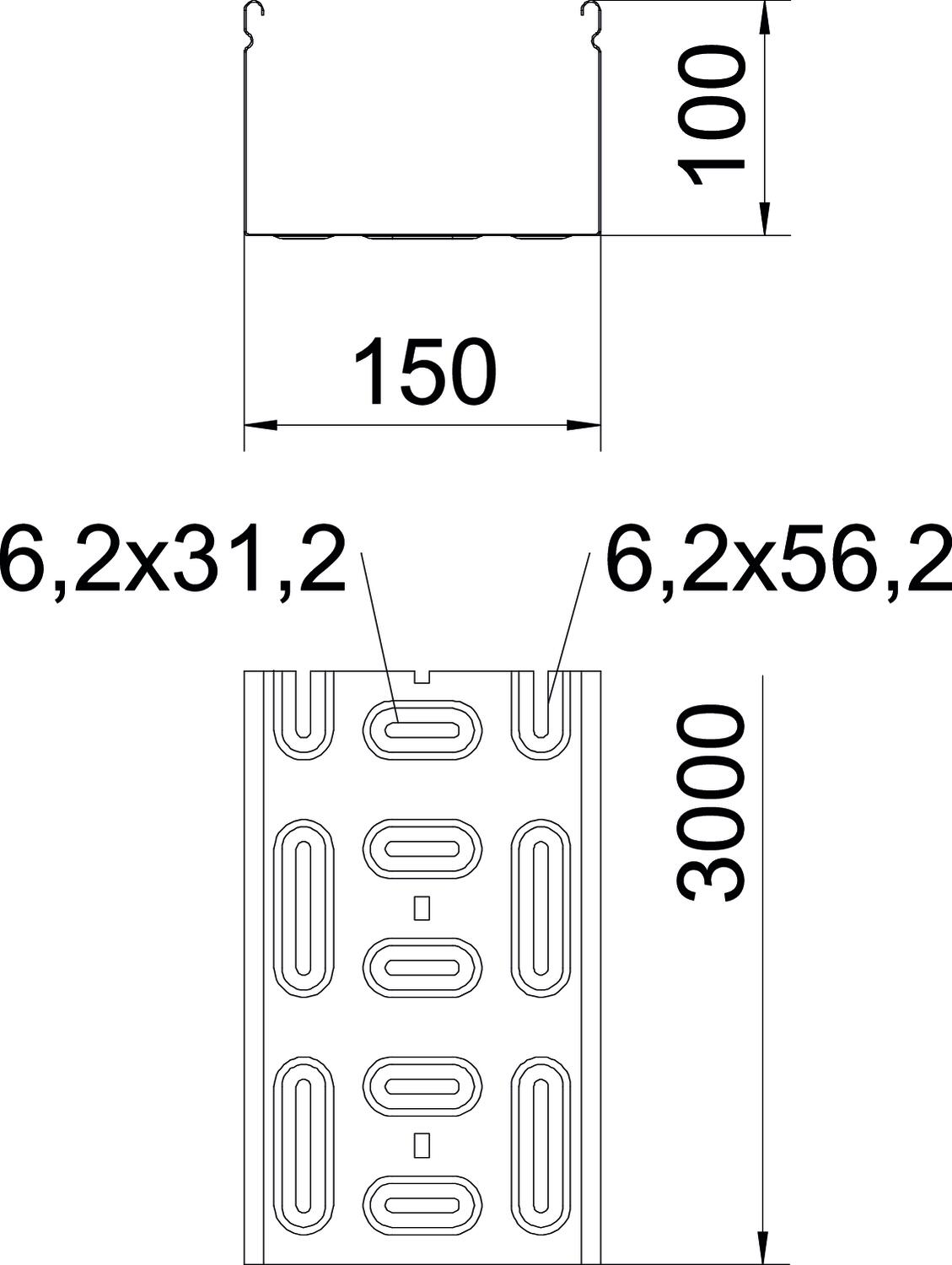

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 100 mm |
| Dimension L | 3000 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
| Dimension D | 25 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Usable cross-section | 148 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,9 mm |
| Mounting perforation in base | no |
| Usable cross-section | 14800 mm² |
| With cover | no |
| Dimension | 100x150x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 1,1 kN/m |
|---|---|
| Support spacing 2.5 m | 0,7 kN/m |
| Support spacing 1.0 m | 1,9 kN/m |
| Support spacing 1.5 m | 1,2 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing

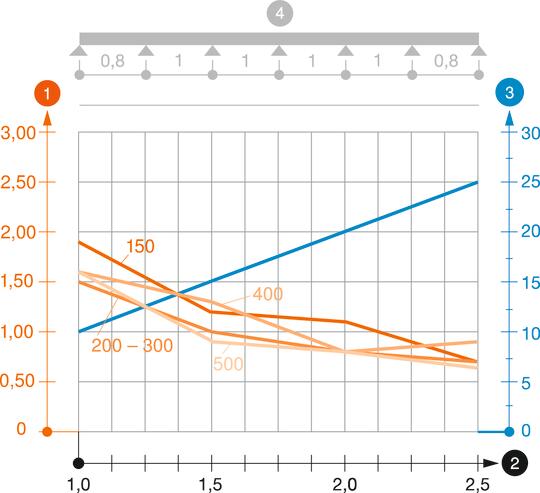

Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Ab der Breite 100 mm mit Stoßstellenleiste geprüft
