Grip 20
Type 2031 20
|Item no. 2205404
|EAN 4012195651635
Item no. / Type
2205404 / 2031 20
No. of conductors NYM 3 x 1.5
20
Smallest selling unit: 50 piece
50piece
piece
Description

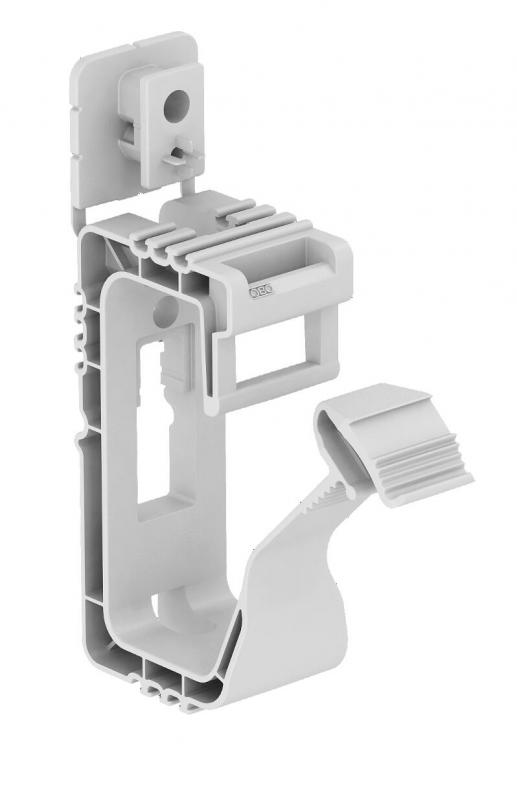

Collection clamp with pointed fastening element, for the mounting of up to 20 cables NYM 3 x 1.5 mm² on walls or ceilings. Fastening with impact anchor or push-fit anchor. Also suitable for the fastening with gas- and battery-operated setting tools of the brands Bosch, Fischer and Spit (inner nose diameter Ø 7 mm). Fastening hole: Ø 6 mm. Recommended fastening distance of 250–400 cm when fully assigned, depending on the respective applicable national specifications/norms.
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
With multifunctional fastening element.
Capacity: 2031/ 20 max. 20 cables NYM 3 x 1.5 mm²
Technical data
Technical data
| Maintain electrical functions | no |
|---|---|
| No. of conductors NYM 3 x 1.5 | 20 |
| Halogen-free | yes |
| Flame-resistant version | no |
| With anchor | no |
| Breaking load | 0,32 kN |
| Dimension | 20x NYM3x1,5 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
Environmental Data
0,0779 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0779 kg CO2e / 1 Piece |
|---|
