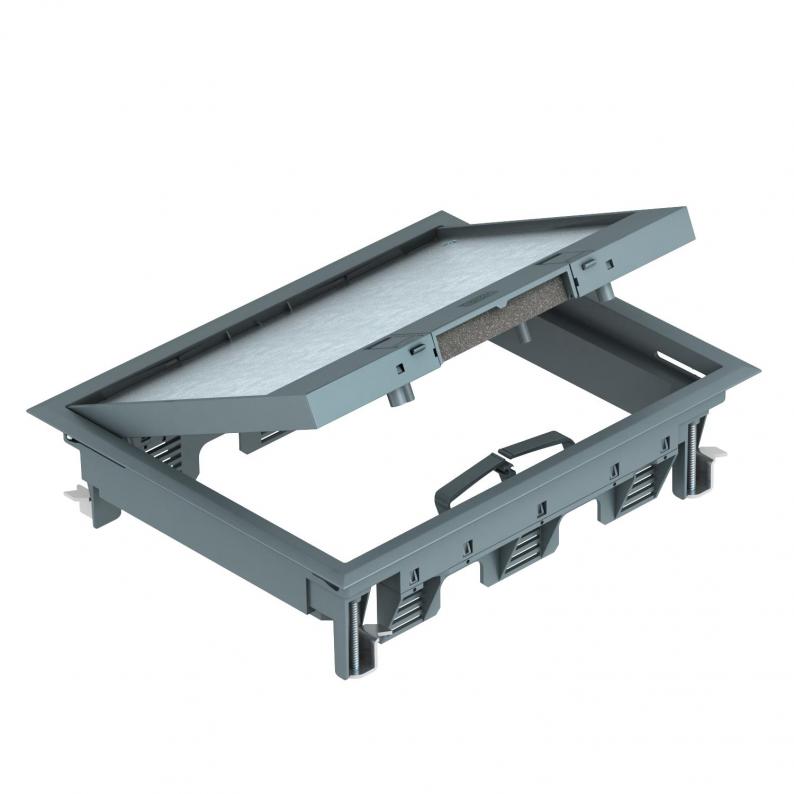

GES6 service outlet with locking slider
Type GES6-2U10T 7011
|Item no. 7405321
|EAN 4012195883616
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
6
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with locking slider for up to 9 individual Modul 45 devices in 3 UT3 universal supports, use in trunking systems and system floors for indoor use.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Service outlet with locking slider, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Service outlet with locking slider, 3-compartment, for the installation of MT6 mounting support. Three type APMT2 cover plates can be installed.
Floor covering recess in the hinged cover pre-adjusted to 5 mm, if necessary adjustable to 3, 8 or 10 mm.
Up to 6 installation devices with 50 mm central plate can be inserted.
Technical data

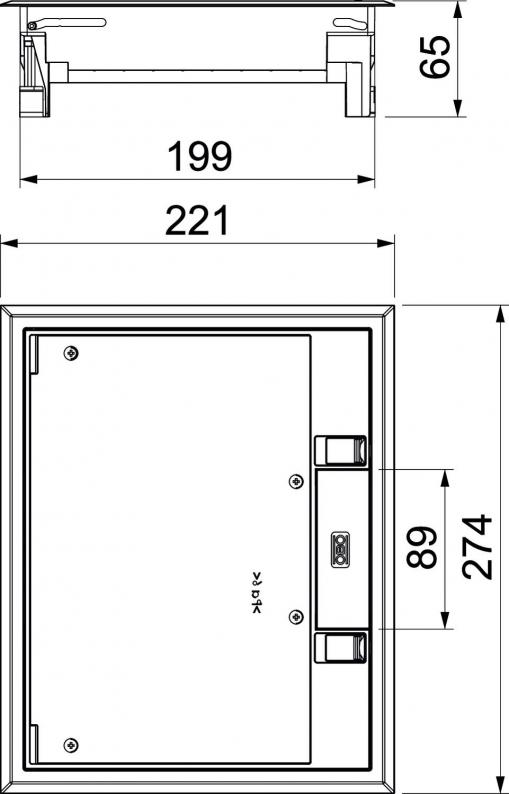

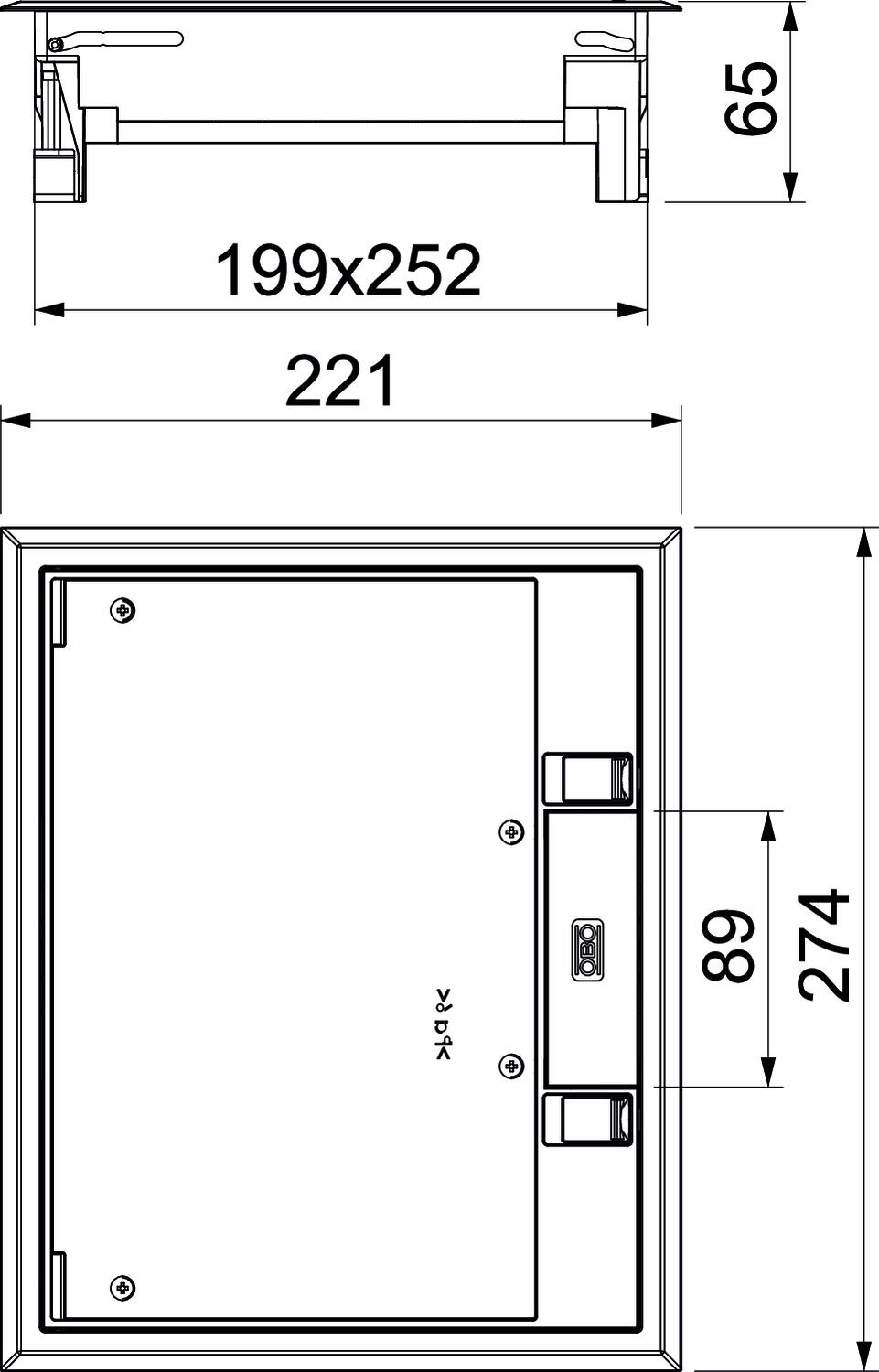

Dimensions
| Length | 221 mm |
|---|---|
| Width | 274 mm |
| Height | 65 mm |
Technical data
| Screed height, min. | 73 mm |
|---|---|
| Floor height, min. | 73 mm |
| Floor covering thickness | 5 mm |
| Number of installable devices | 9 |
| Seal installation option | no |
| Length of installation dimensions | 201 mm |
| Wide installation dimensions | 253 mm |
| Length of external dimensions | 221 mm |
| Wide external dimensions | 274 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 3 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| With floor covering recess | yes |
| Floor covering protection frame | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Installation system type | UT3 |
| Heavy-duty version | no |
| Nominal size for device installation units | 6 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 2,000 N |
| Vertical load, large area | to 3,000 N |
| Version for | Rectangular |
| Opening mechanism | Locking slider |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 75 mm |
| Dimension | 274x221x66 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,1226 kg CO2e / 1 Piece |
| Floor covering thickness max. | 10 mm |
