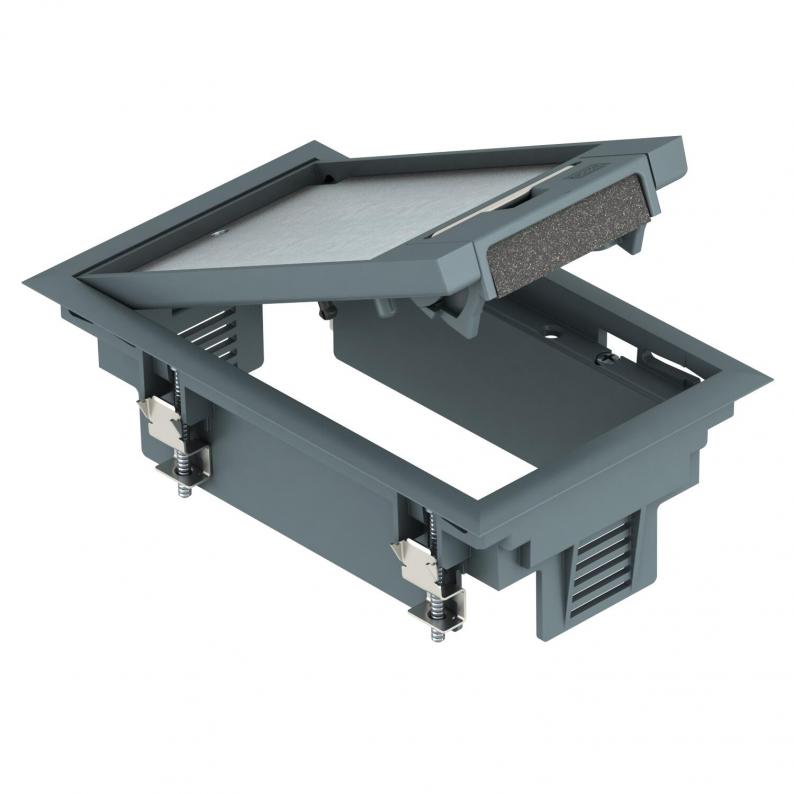

GES2 service outlet with handle clamp
Type GES2 U 7011
|Item no. 7405116
|EAN 4012195102182
Item no. / Type
Floor covering thickness
Colour
Nominal size for device installation units
2
Smallest selling unit: 1 piece
1piece
piece
Description
Service outlet with handle clamp for up to 3 individual Modul 45 devices in one UT3 universal support, use in duct systems and system floors for indoor use.
Service outlet with handle clamp, 1-compartment, for the installation of MT2 mounting support.
Service outlet with handle clamp, 1-compartment, for the installation of MT2 mounting support.
Up to two installation devices with 50 mm central plate can be inserted.
Technical data
Technical data
| Floor height, min. | 73 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Suitable for screed-flush closed underfloor ducts | no |
| Number of installable devices | 3 |
| Seal installation option | no |

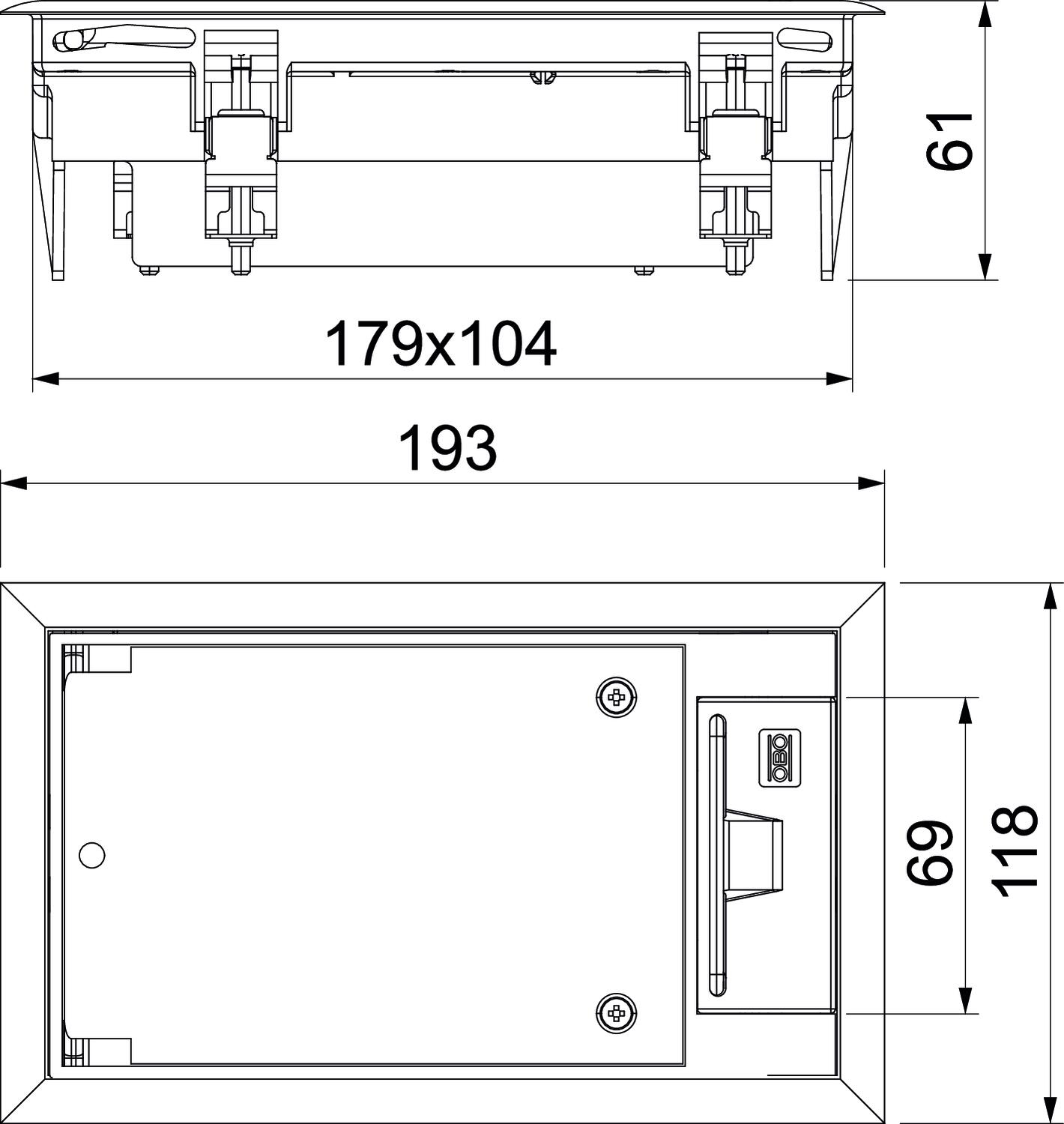

| Length of installation dimensions | 180 mm |
| Wide installation dimensions | 104 mm |
| Length of external dimensions | 194 mm |
| Wide external dimensions | 118 mm |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | no |
| Suitable for raised floor installation | no |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Number of mounting boxes | 1 |
| Suitable for wet care | no |
| Installation depth | 73 mm |
| With floor covering recess | yes |
| Cable outlet version | Swivellable cord outlet |
| Device support to accept mounting boxes | yes |
| Protection rating IK code | IK08 |
| Suitable for outdoor use | no |
| Installation system type | UT3 |
| Heavy-duty version | no |
| Nominal size for device installation units | 2 |
| Approvals | VDE |
| Protection rating (IP) when used | IP20 |
| Protection rating (IP) when unused | IP40 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 3,000 N |
| Version for | Rectangular |
| Opening mechanism | Handle |
| Clamping range D, min. | 7 mm |
| Clamping range D, max. | 29 mm |
| Dimension | 192x118x70 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2466 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Floor covering thickness
Nominal size for device installation units
Colour
Item no.
GES2 U 7011
5
2
Iron grey; RAL 7011
7405116
GES2 U 9011
5
2
Graphite black; RAL 9011
7405120
GES2 U 1019
5
2
Grey-beige; RAL 1019
7405124
Colour
GES2 U 7011
Item no.
7405116
Floor covering thickness
5
Nominal size for device installation units
2
Colour
Iron grey; RAL 7011
GES2 U 9011
Item no.
7405120
Floor covering thickness
5
Nominal size for device installation units
2
Colour
Graphite black; RAL 9011
GES2 U 1019
Item no.
7405124
Floor covering thickness
5
Nominal size for device installation units
2
Colour
Grey-beige; RAL 1019
