UDHOME floor boxes – elegant power and data solutions
For perfect power and data
The UDHOME product family brings power, data and multimedia technology to precisely where they’re needed. Elegant, discreet and robust The floor sockets and floor boxes are mounted directly on the raw floor and are connected with flexible installation pipes. Thanks to their elegant and discreet design, they integrate themselves seamlessly into the interior architecture. When the hinged cover is closed, only the high-quality surfaces of pure stainless steel or solid brass are visible. Floor coverings of stone, tiles, plastic or wood can be integrated easily in the cover of the system. Thanks to their stable construction, they are also insensitive to the everyday challenges of residential, office and administrative areas.
Overview of the benefits of the UDHOME product family
- Maximum flexibility in mounting and equipment
- High-quality materials and solid machining
- Versatile in its applications
- Exact termination with the floor covering
Floor boxes
For a wide range of equipment options and dry-cleaned floor coverings, the UDHOME4 and UDHOME9 floor boxes are the ideal solution.
The UDHOME4 floor box – for a wide range of equipment
The UDHOME4, together with the UDHOME9, is the floor box from the UDHOME product family. It matches high-quality room architecture perfectly. When installation is complete, you can only see a discreet metallic edge and the cord outlet. The UDHOME4 is available in stainless steel or brass versions.
Every advantage of the UDHOME4 at a glance
- Available variants: stainless steel or brass versions
- Height-adjustment range up to 30 mm
- Flexible equipment with power, data and multimedia technology
- Discreetly matches high-quality room architecture
With a height-adjustment range of up to 30 mm, the UDHOME4 can be adjusted easily to the level of the finished floor. The floor box is also flexible with regard to device installation, as it can be equipped flexibly with power, data and multimedia technology using four support ring devices or six Modul 45® devices.
The UDHOME9 floor box – a beautiful form with powerful connections
The UDHOME9 is the largest floor box of the product family. Here, restrained design meets wide-ranging use options. The UDHOME9 can be equipped flexibly with power, data and multimedia technology using 9 support ring devices or 12 Modul 45 devices.
Advantages of the UDHOME9 at a glance:
- Discreet, refined design
- High performance and varied equipping
- Offers plenty of space for power, data and multimedia technology
Flexible device installation
Just like the UDHOME4, the UDHOME9 floor box is also available with different pre-configurations. To meet project-specific requirements, the empty installation spaces of the universal support can be supplemented with additional sockets or data and multimedia technology thanks to the comprehensive Modul 45® product range.
Floor sockets
The two small UDHOME-ONE and UDHOME2 floor sockets combine an elegant appearance with the maximum amount of flexibility in small dimensions of 140 x 140 mm

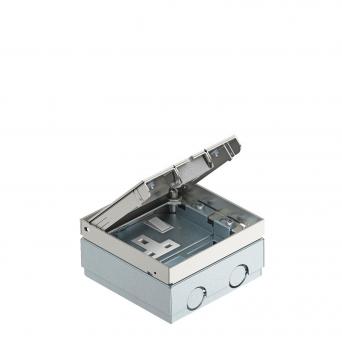

The UDHOME-ONE – a small, sustainable floor socket for use in thin screeds
The UDHOME-ONE floor socket is the smallest and most sustainable member of the UDHOME product family. It is even flatter than the UDHOME2 and therefore more energy-efficient on account of the increased heat dynamics. It allows the supply of power and data in the smallest of spaces and can be used in thin screeds of 75 mm or more.
- Strong: High load capacity of up to 15 kN on large areas and 3 kN on small ones
- Space-saving: Small external dimensions of 140 x 140 mm, low installation depth of 75 mm
- High quality: Available in stainless steel and brass variants. The two pre-mounted device supports are always made of stainless steel.
- Design-orientated: With two cover variants, the UDHOME-ONE integrates itself perfectly into the room
- User-friendly: All interior edges which are touched frequently have been smoothed. This minimises the risk of injury and the danger of damaging cables in equal measure.
- VDE-certified – for the separation of heavy current and data.
Flexible support with power and data
Flexibility is the core property of UDHOME-ONE. It can be equipped with either one data connection and one power connection or with two power connections. The power is connected via OBO’s proprietary Modul 45® series. However, no matter which connector type you use, the cover can still be closed.
The UDHOME2 floor socket – a compact space-saving wonder
The UDHOME2 offers a lot space. Even with its small external dimensions, it is extremely spacious. This is achieved by the interior space, which is slanted at an angle of 54 degrees. This means that there is also sufficient space for larger connectors and smaller charging units, which disappear under the closed cover. With its slender cover edges, the UDHOME2 integrates itself perfectly into various floors and discreetly blends in with the room.
Advantages of the UDHOME2 at a glance:
- Spacious interior despite slender outer dimensions
- Simple and efficient handling

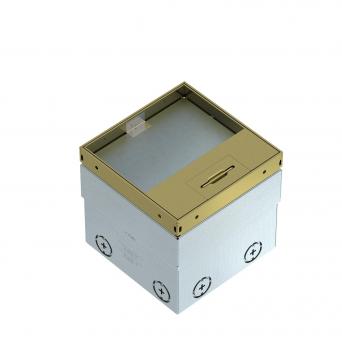

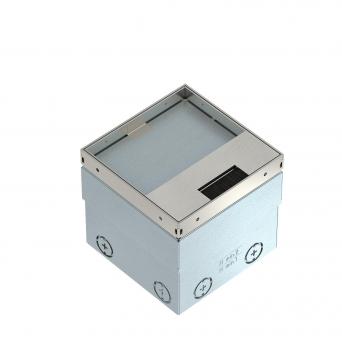

- Variants available with floor covering recess or with cord outlet
- Elegant appearance combined with the maximum of flexibility
- Suitable for both dry- and wet-cleaned floors

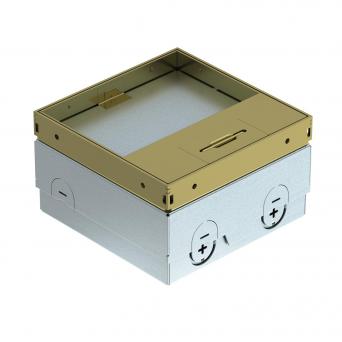

The UDHOME2 is available in variants with a decorative cover or with a floor covering recess in stainless steel or brass. Particularly versatile: The decorative covers can be exchanged at any time and thus be adapted to the room design. In the version with tube body and stainless steel cover, the small floor socket achieves an IP45 protection rating, meaning that it is even suitable for use in wet-cleaned floors, such as parquet or laminate. In the case of the variant with floor covering recess, floor coverings made of stone, tile, plastic or wood can be integrated easily in the cover.
The expanded cord outlet for optimum outlet of cables can be opened simply using the handle. The cover closes with a gentle click and can be used flexibly in all directions.
Compact structure, flexible device installation
The compact design with dimensions of just 140 x 140 mm offers room for two Modul45® devices and for up to two data technology modules. Using height-adjustment supports, the total height of the UDHOME2 can be adjusted to 135 mm – and with accessories, even to over 190 mm. Pre-marked entry openings for pipes (M25) allow simple connection with flexible installation pipes.
The scope of delivery of the UDHOME2 contains a double protective contact socket. Up to two modular data sockets can be installed with the mounting supports. The installation space allows all connector types to be used. This means that it is possible to close the cover during use.

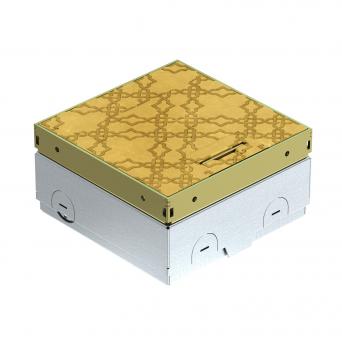

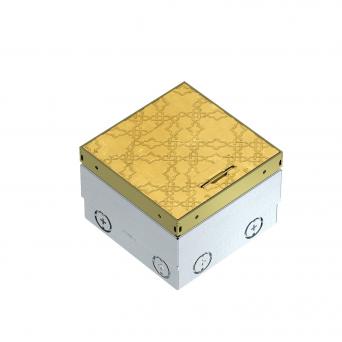

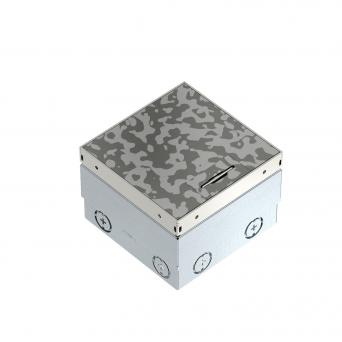

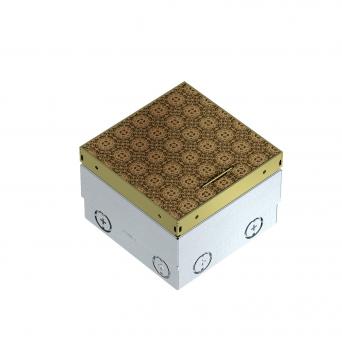

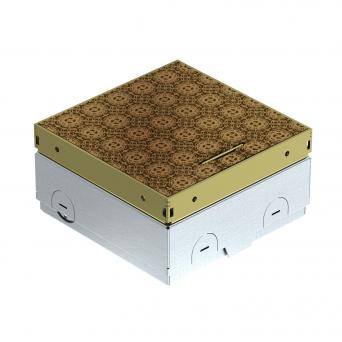

Designer surfaces

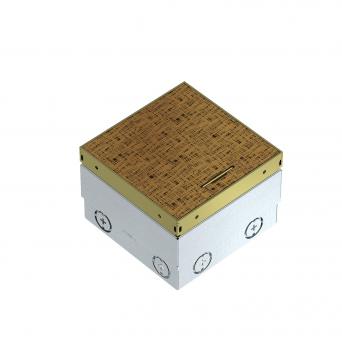

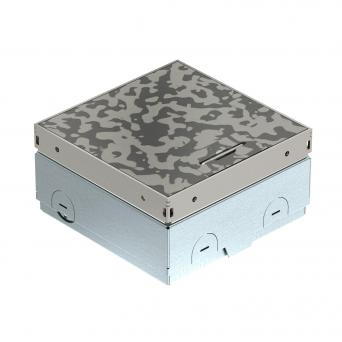

Simply swap the design surfaces of the UDHOME floor sockets and floor boxes and become even more flexible. A total of six contemporary decor designs are available.
The UDHOME design surfaces
Flexibility that can hold its own
At OBO, we are continuously working to make sensible enhancements to existing products and to make them even better. The best example of this: As the only manufacturer on the market, OBO is able to offer design surfaces for floor sockets that are ready for installation.
A total of six high-quality, contemporary decorative designs are available. This means that the installation of electrical systems can be adapted to the existing floor coverings and individual room design in a manner that is more harmonious than ever before.
Cover with a brush outlet
Even more variety: The floor sockets are also available in a variant with a brush outlet – both with and without a floor covering recess in the cover.
UDHOME cover with brush outlet – certified and designed for Europe-wide use
The UDHOME product family stands for variety: The UDHOME-ONE and UDHOME2 floor sockets are also available in a variant with a brush outlet – both with and without a floor covering recess in the cover. This variant is certified and designed for Europe-wide use.
Overview of the advantages of the UDHOME cover with brush outlet
- Integrates itself smartly yet discreetly into all kinds of room concepts
- VDE-conformant
- Fulfils both aesthetic and functional requirements
- Specially brushed stainless steel surface stands out through its uniform visible quality
Discreet, functional, flexible
The cover with brush outlet is convincing in both the used and unused states: If the floor sockets are not used, then the cord outlet opening can simply be closed.
In the used state, the cables are run discreetly over the bar without an edge. The patented brush bar offers a clear, discreet design, which, thanks to the flat opening lever, blends into existing interiors flexibly and harmoniously. This guarantees a safe electrical installation, which also can meet high aesthetic requirements.
