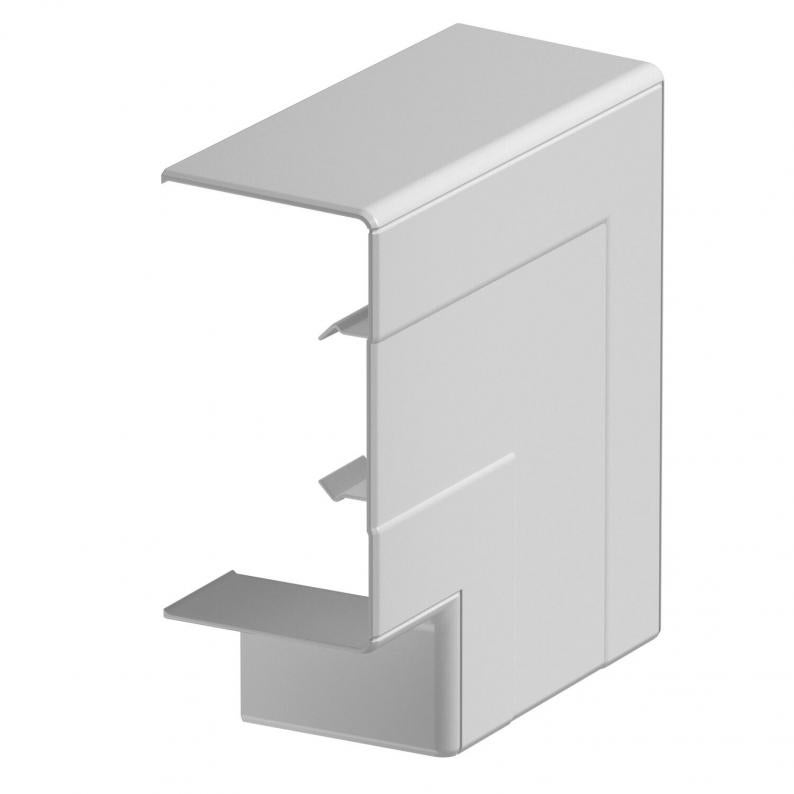

Flat angle hood, for device installation trunking Rapid 45-2 type GK-53100

Flat angle hood, for device installation trunking Rapid 45-2 type GK-53100

Type GK-FH53100LGR
|
Item no. 6113092
|
EAN 4012196419319
Show all variants
Item no. / Type
Width
Height
Colour

Smallest selling unit: 1 piece

piece

Description

Flat angle as hood fitting for changing the direction of the Rapid 45-2 device installation trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

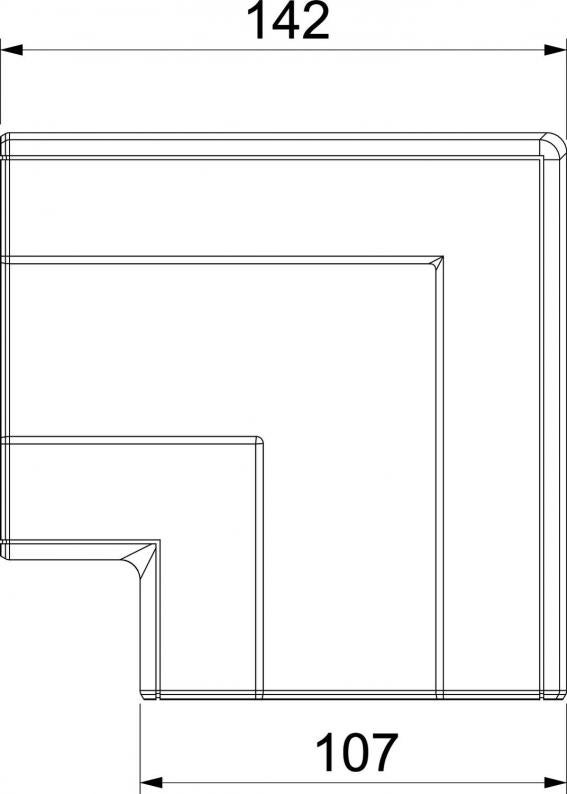

Dimensions

Length142 mm
Width107 mm
Height55,5 mm

Technical data

Mounting perforation in baseno
Halogen-freeyes
Cable retaining clipno
Protective filmno
Duct connectorno
Angle range, min.90 mm
Angle range, max.90 mm
Protection ratingIP40
Change of directionVertical, rising/falling
Symmetricalyes
Number of covers1
Cover width 20 mm
Cover width 30 mm
Cover mounting typeCross-over
Protection rating IK codeIK08
for duct width100 mm
for trunking height53 mm
Version forHood fitting
Cover width0 mm
Permitted temperature range, min.-15 °C
Permitted temperature range, max.60 °C
Dimension142x142x56
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourLight grey; RAL 7035
Antibacterial treatmentno

Environmental Data

0,6366 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
CO2 Footprint (GWP) Cradle-to-Gate0,6366 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
GK-FH53100RW
Item no.
6113090
Width
107
Height
55,5
Colour
Pure white; RAL 9010
GK-FH53100LGR
Item no.
6113092
Width
107
Height
55,5
Colour
Light grey; RAL 7035
GK-FH53100AL
Item no.
6113094
Width
107
Height
55,5
Colour
aluminium
