Flat angle, for device installation trunking Rapid 45-2 type GA-53165
Type GA-FS53165RW
|Item no. 6112630
|EAN 4012196418619



Item no. / Type
Width
Height
Colour
Smallest selling unit: 1 piece
1piece
piece
Description

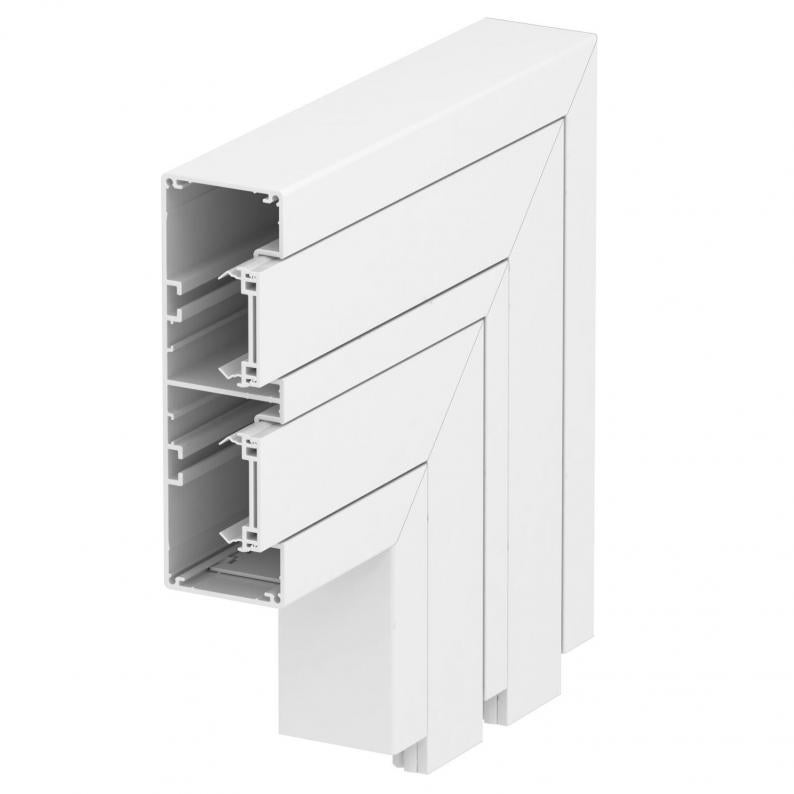

90° aluminium flat angle for direction change of Rapid 45-2 GA... device installation trunking.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
Note:
For anodised device installation trunking and fittings made from aluminium, light colour differences caused by permitted scatter due to the material and process conditions cannot be avoided (according to DIN 17 611). 45 mm devices can be clicked in directly. When using PC/ABS hood fittings, there may be colour differences due to the different materials.
Technical data

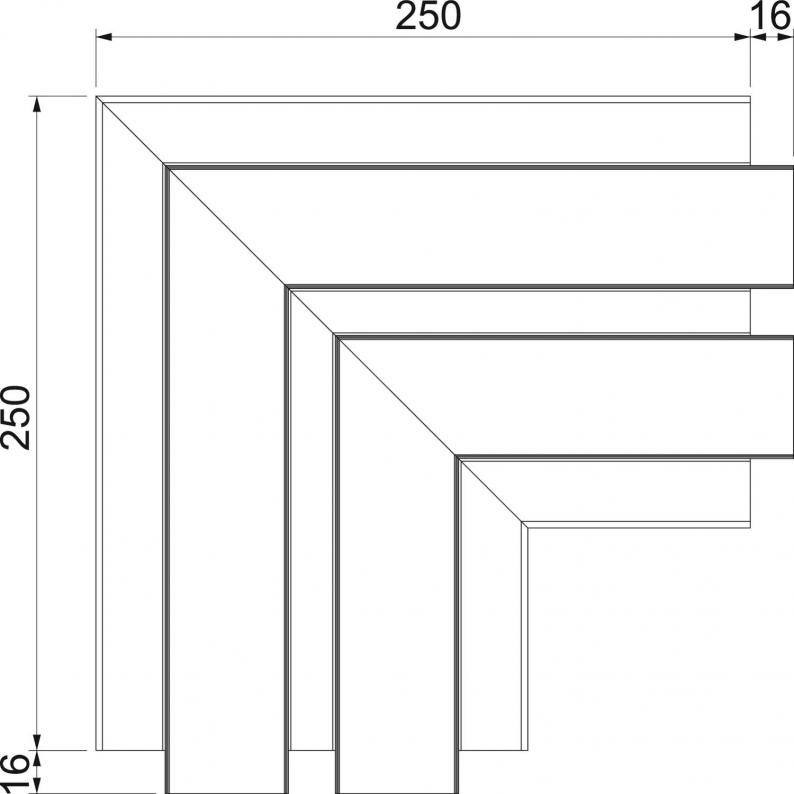

Dimensions
| Length | 250 mm |
|---|---|
| Width | 165 mm |
| Height | 53 mm |
Technical data
| Mounting perforation in base | no |
|---|---|
| Halogen-free | yes |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Angle range, min. | 90 mm |
| Protection rating | IP40 |
| Change of direction | Vertical, rising/falling |
| Symmetrical | yes |
| Number of covers | 2 |
| Cover width 2 | 45 mm |
| Cover mounting type | Internal |
| Protection rating IK code | IK10 |
| for duct width | 165 mm |
| for trunking height | 53 mm |
| Version for | Base and cover |
| Cover width | 45 mm |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 53x165x250 |
| Material | Aluminium |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
Environmental Data
20,1046 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| Packaging made completely from recycled cardboard. | yes |
|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 20,1046 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Width
Height
Colour
Item no.
GA-FS53165RW
165
53
Pure white; RAL 9010
6112630
GA-FS53165EL
165
53
aluminium
6112633
Colour
GA-FS53165RW
Item no.
6112630
Width
165
Height
53
Colour
Pure white; RAL 9010
GA-FS53165EL
Item no.
6112633
Width
165
Height
53
Colour
aluminium
