Empty housing X 04

Empty housing X 04

Type X04C LGR-TR
|
Item no. 2005528
|
EAN 4012196577736
Show all variants
Item no. / Type
Clear internal dimensions
Colour
Protection rating
IP67

Smallest selling unit: 1 piece

piece

Description

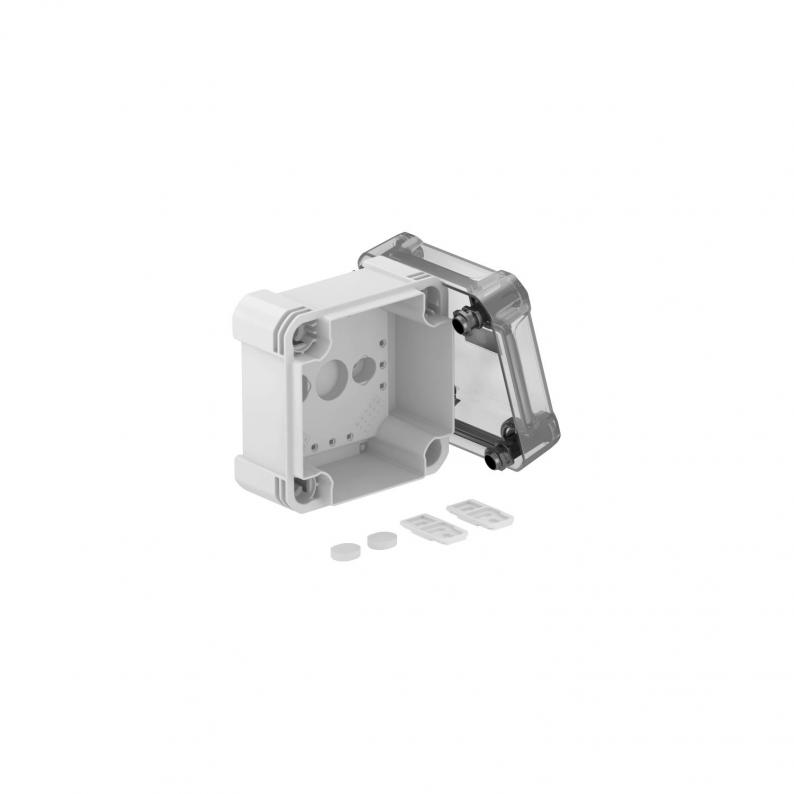

Junction box for the connection of cables and lines indoors and in outdoor areas. Square design without entries. Suitable for wall and ceiling mounting with the option to fasten outside, inside or to mount via the corner domes. Particularly impact resistant with IK09. Transparent cover with quick lock, sealable. Made from halogen-free and UV-resistant materials.

Junction box according to EN 60670. Impact resistance IK09 according to N 50102. Protection rating IP67 according to EN 60529.


  • ENEC Austria
  • Österreichischer Verband für Elektrotechnik, Austria
  • Flame resistant 650 °C
  • UV-resistant
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 67
  • IK Code 09
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

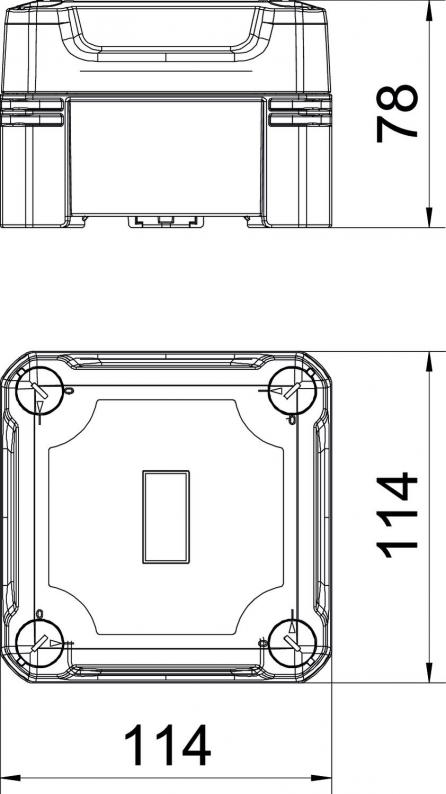

Dimensions

Length114 mm
Width114 mm
Height78 mm
Clear internal dimensions102x102x60 mm

Technical data

Transparent lidyes
Protection ratingIP67
with lidyes
Extension optionno
Cover fasteningScrewed
ShapeSquare
Weatherproofyes
Protection rating IK codeIK09
Suitable for outdoor useyes
Permitted temperature range, min.-5 °C
Permitted temperature range, max.60 °C
Dimension114x114x78
MaterialPolycarbonate
Colourgrey / transparent

Environmental Data

1,0067 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
Packaging made completely from recycled cardboard.yes
Packaging without plasticyes
CO2 Footprint (GWP) Cradle-to-Gate1,0067 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Certificates (1)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (1)

Variants

Colour
X04C LGR
Item no.
2005458
Clear internal dimensions
102x102x60
Protection rating
IP67
Colour
Light grey; RAL 7035
X04C LGR-TR
Item no.
2005528
Clear internal dimensions
102x102x60
Protection rating
IP67
Colour
grey / transparent
X04C SW
Item no.
2005598
Clear internal dimensions
102x102x60
Protection rating
IP67
Colour
Graphite black; RAL 9011
