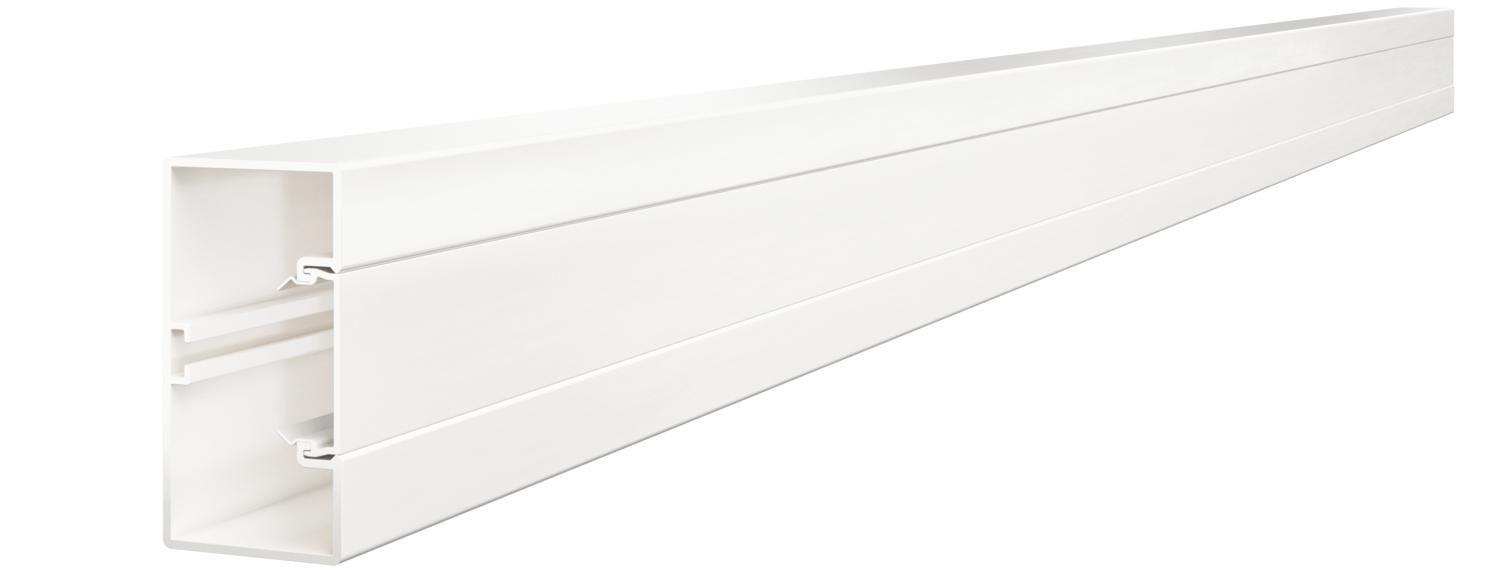

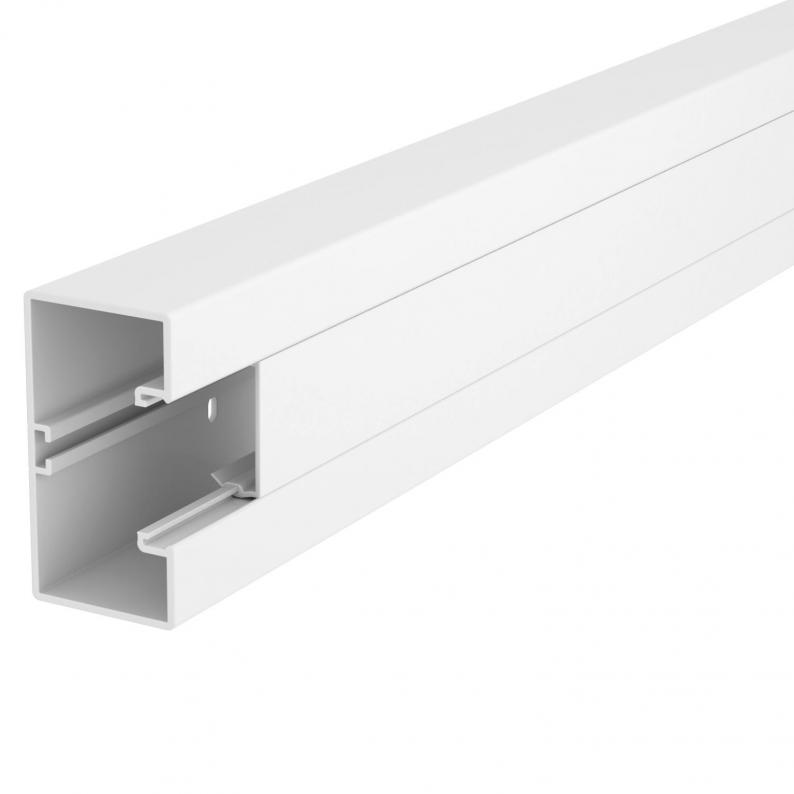

Device installation trunking Rapid 45-2, trunking width 100, trunking height 53
Type GK-53100RW
|Item no. 6113000
|EAN 4012196419036
Item no. / Type
Length
Colour
Smallest selling unit: 2 m
2m
m
Description
Trunking base and cover with base perforation for direct wall mounting.
Technical data

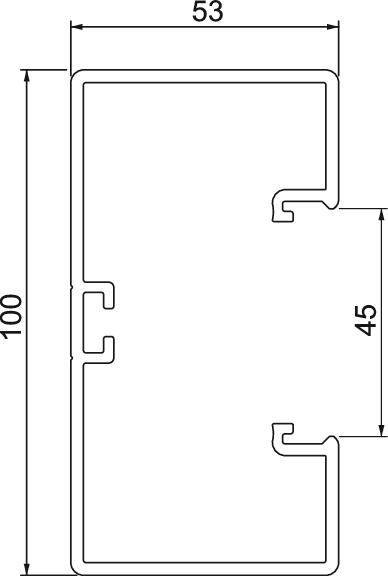

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 100 mm |
| Height | 53 mm |
Technical data
| Mounting perforation in base | yes |
|---|---|
| Usable cross-section | 4400 mm² |
| Halogen-free | no |
| Number of insertable partitions | 1 |
| Cable retaining clip | no |
| Protective film | yes |
| Duct connector | no |
| Protection rating | IP40 |
| Symmetrical | yes |
| Rectangular shape | yes |
| Number of covers | 1 |
| Cover width 2 | 0 mm |
| Cover width 3 | 0 mm |
| Rear panel version (inner side) | Continuous C profile |
| Cover mounting type | Internal |
| Protection rating IK code | IK08 |
| Cover supplied | yes |
| Base perforation | With base perforation |
| Cover width | 45 mm |
| Permitted temperature range, min. | -15 °C |
| Permitted temperature range, max. | 60 °C |
| Dimension | 53x100x2000 |
| Material | Polyvinylchloride |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,6547 kg CO2e / 1 Meter |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (2)
Instructions and Aid (2)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Article
Type
Item no.
Amount
Item no. 6113010
Cover, for device installation trunking Rapid 45-2Type
GK-OT45RW
Smallest selling unit: 2 m
2m
m
Variants
Type
Length
Colour
Item no.
GK-53100RW
2000
Pure white; RAL 9010
6113000
GK-53100LGR
2000
Light grey; RAL 7035
6113002
Colour
GK-53100RW
Item no.
6113000
Length
2000
Colour
Pure white; RAL 9010
GK-53100LGR
Item no.
6113002
Length
2000
Colour
Light grey; RAL 7035
