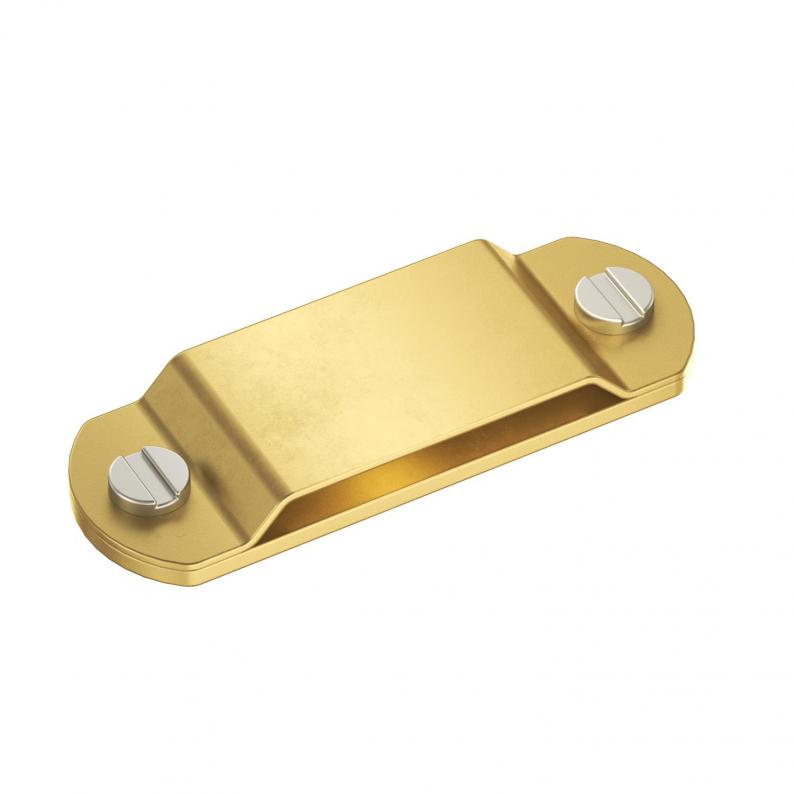

DC clip
Type DC Clip 25x3 SA
|Item no. 5450244
|EAN 4012196880713
Item no. / Type
Smallest selling unit: 50 piece
50piece
piece
Description
• Complies with the requirements of VDE 0185-305 (IEC 62305)
Technical data
Technical data
| Thread metric | 8 |
|---|---|
| Holder fastening type | Drill hole with M-thread |
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Die-cast zinc |
| Material of the base | Die-cast zinc |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Die-cast zinc |
| Dimension | 8-10mm |
| Surface | Copper-plated |
| Material | Brass |
