Connection sleeve
Type CSTR M10 G
|Item no. 6410103
|EAN 4012196202270
Item no. / Type
Length
Thread
WAF
Smallest selling unit: 50 piece
50piece
piece
Description
Connection sleeve with continuous internal thread.
Technical data

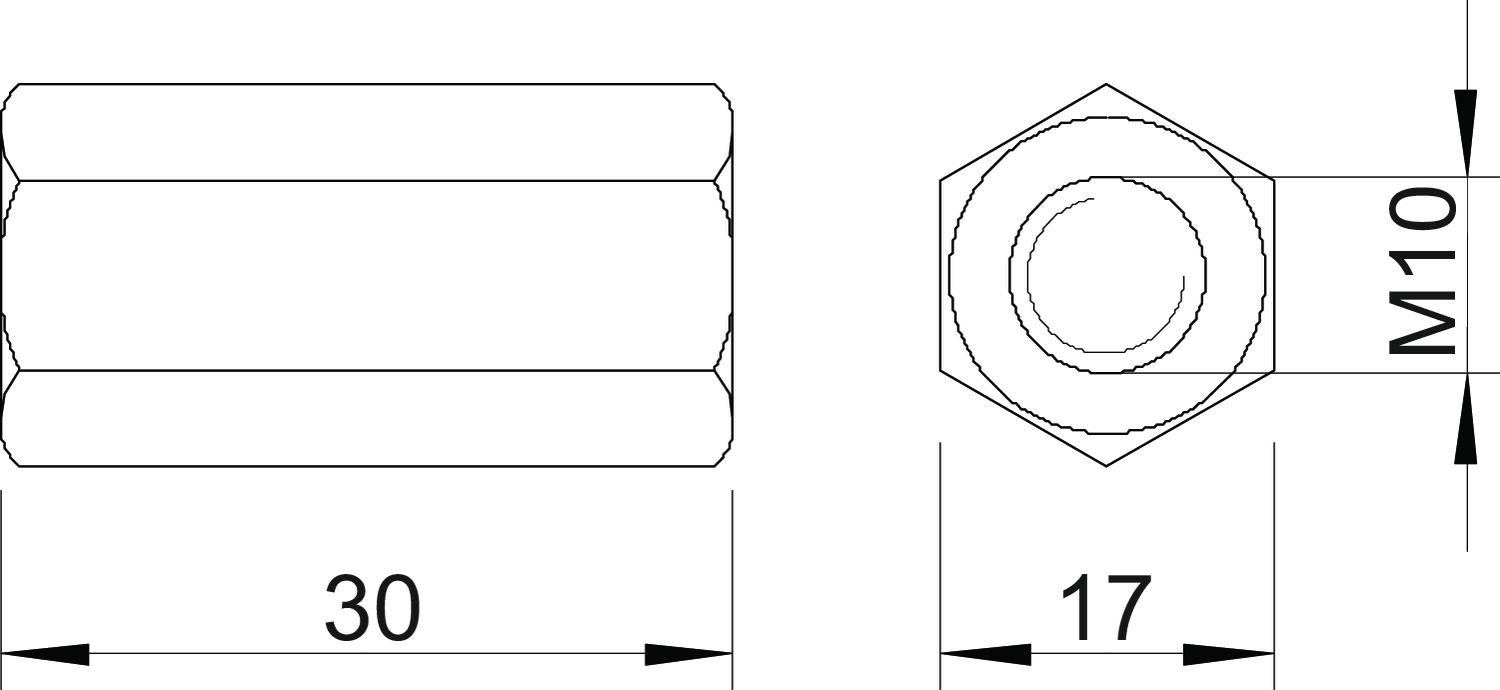

Dimensions
| Length | 30 mm |
|---|---|
| Dimension L | 30 mm |
| Dimension 1, metric | 10 |
| Dimension 2, metric | 10 |
Technical data
| Thread | M10 |
|---|---|
| Continuous thread | yes |
| Hexagonal | yes |
| WAF | 17 |
| Shape | Hexagonal |
| Dimension | M10x30mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1436 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Product images (2)
3D data downloads (2)
Tender specifications (2)
Variants
Type
Length
Thread
WAF
Item no.
CSTR M10 G
30
M10
17
6410103
CSTR M12 G
40
M12
19
6410111
Length
Thread
WAF
CSTR M10 G
Item no.
6410103
Length
30
Thread
M10
WAF
17
CSTR M12 G
Item no.
6410111
Length
40
Thread
M12
WAF
19
