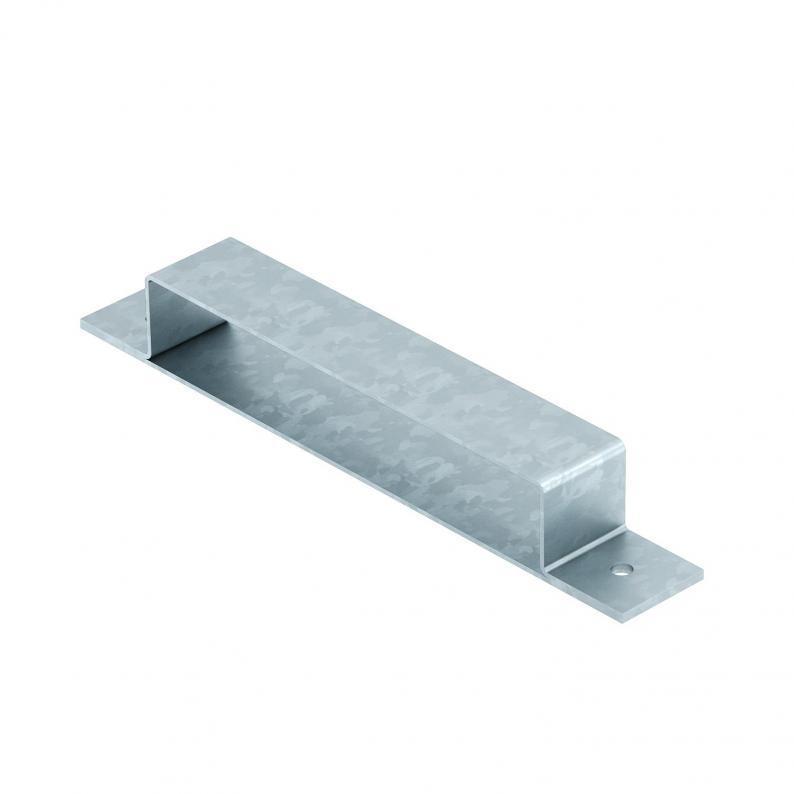

Connection shackle, duct height 25 mm
Type DC 5025
|Item no. 7490020
|EAN 4012196511020




Item no. / Type
Width
Height
Smallest selling unit: 1 piece
1piece
piece
Description
Duct connector for mounting screed-covered underfloor installation ducts.
Technical data

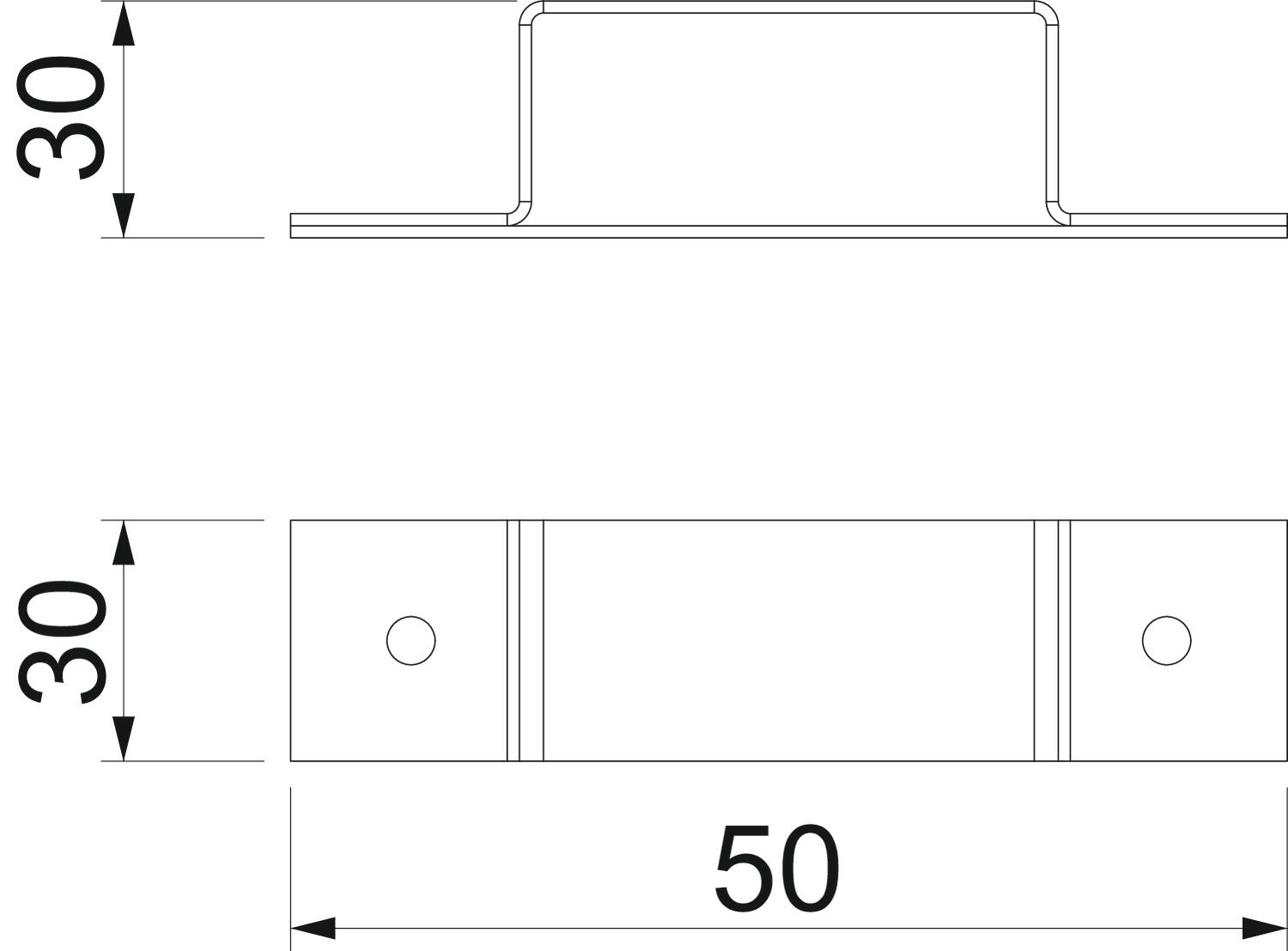

Dimensions
| Width | 50 mm |
|---|---|
| Height | 30 mm |
| Dimension h | 30 mm |
Technical data
| Trunking width, min. | 50 mm |
|---|---|
| Dimension | 112x40x30 |
| Surface | Strip galvanized |
| Material | Steel |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Product images (3)
Tender specifications (1)
Variants
Type
Width
Height
Item no.
DC 5025
50
30
7490020
DC 7525
75
30
7490022
DC 10025
100
30
7490024
DC 15025
150
30
7490026
DC 20025
200
30
7490028
DC 22525
225
30
7490030
DC 25025
250
30
7490032
DC 30025
300
30
7490034
Width
DC 5025
Item no.
7490020
Width
50
Height
30
DC 7525
Item no.
7490022
Width
75
Height
30
DC 10025
Item no.
7490024
Width
100
Height
30
DC 15025
Item no.
7490026
Width
150
Height
30
DC 20025
Item no.
7490028
Width
200
Height
30
DC 22525
Item no.
7490030
Width
225
Height
30
DC 25025
Item no.
7490032
Width
250
Height
30
DC 30025
Item no.
7490034
Width
300
Height
30
