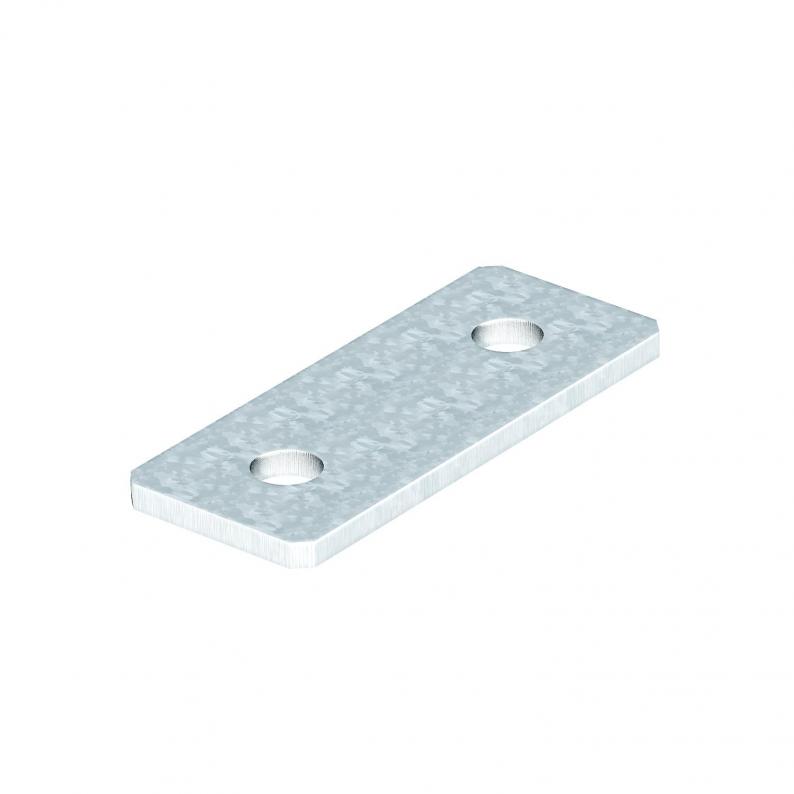

Connection plate with 2 holes FT
Type GMS 2 VP FT
|Item no. 1124645
|EAN 4012195486022
Item no. / Type
1124645 / GMS 2 VP FT
Smallest selling unit: 10 piece
10piece
piece
Description
Connection plate with two holes for straight connection of profile rails 41 x 41 mm and 41 x 21 mm.
Technical data

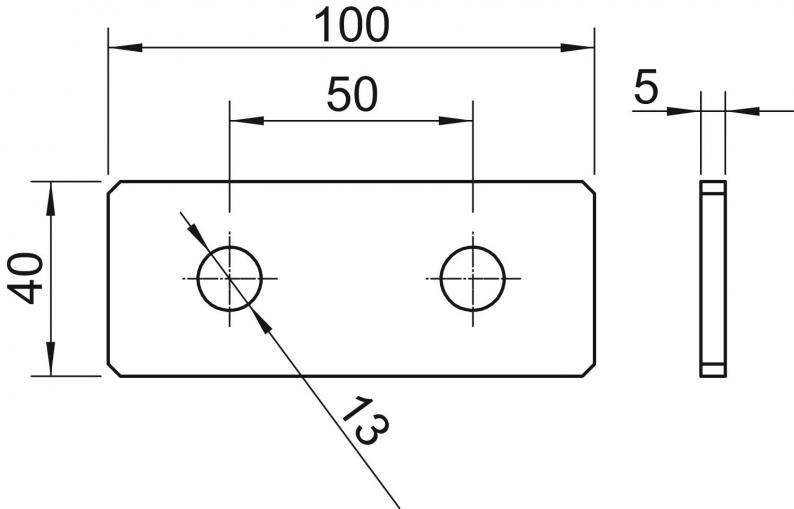

Dimensions
| Length | 100 mm |
|---|---|
| Width | 40 mm |
| Height | 5 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Material thickness | 5 mm |
| Hole size | 13 mm |
| With screw accessories | no |
| Version for | With continuous perforation 13 mm |
| Suitable for profile shapes | C profile |
| Dimension | 100x40x5 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,3485 kg CO2e / 1 Piece |
