Clamp clip, double, FT plastic pressure trough
Type 2056 2 64 FT
|Item no. 1161644
|EAN 4012195065890
Item no. / Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
Suitable for all C profile rails with slot width 16–17 mm.
Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Hot-dip galvanised steel clamp and bolt, polypropylene pressure trough, halogen-free, colour light grey RAL 7035.
Version with welding and/or locknuts for use under difficult circumstances and for shake protection on request.
Technical data
Technical data
| for rail with slot width (with interval), min. | 16 mm |
|---|---|
| for rail with slot width (with interval), max. | 17 mm |
| Impact-resistant | no |
| Halogen-free | yes |
| With plastic trough | yes |
| With metal trough | no |
| Number of cables/pipes | 2 |
| Surface addition | hot galvanised |
| Material addition | Steel |
| Max. Tightening torque | 5 Nm |
| Mounting type | Profile rail |
| Clamping range D, min. | 58 mm |
| Clamping range D, max. | 64 mm |
| Dimension | 58-64mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| With counter-trough | no |
| Material of trough | Plastic |
| Material quality of trough | Polypropylene |

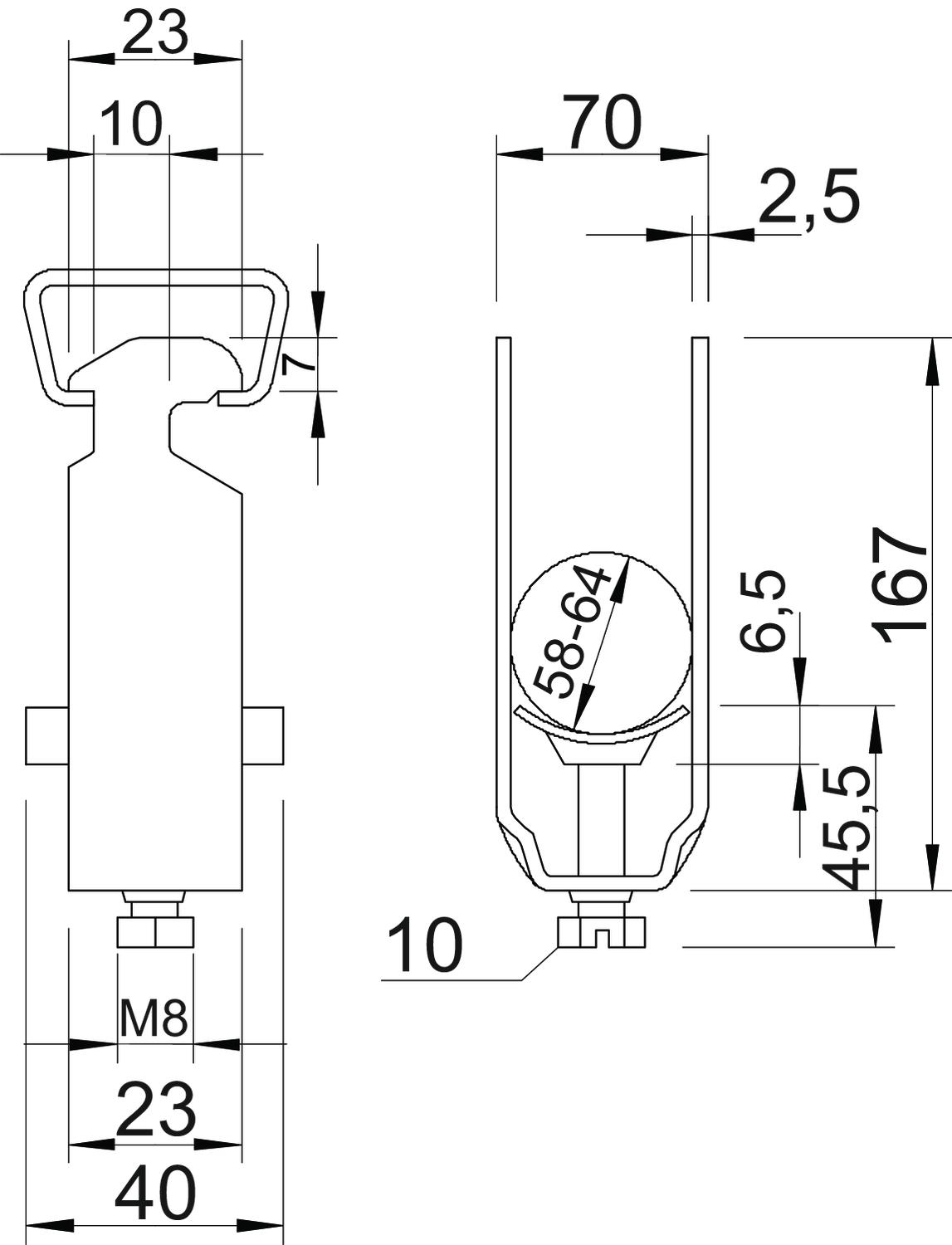

Dimensions
| Dimension L | 44,5 mm |
|---|---|
| Dimension A | 23 mm |
| Dimension B | 70 mm |
| Dimension H | 167 mm |
| Dimension t | 2,5 mm |
| Dimension C | 40 mm |
| Dimension x | 6,5 mm |
| Dimension G (mm) | M8 |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 0,49 kg CO₂e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
3D data downloads (1)
Tender specifications (1)
Variants
Type
Max. Tightening torque
Clamping range D, min.
Clamping range D, max.
Item no.
2056 2 16 FT
3
12
16
1161164
2056 2 22 FT
3
16
22
1161229
2056 2 28 FT
3
22
28
1161288
2056 2 34 FT
5
28
34
1161342
2056 2 40 FT
5
34
40
1161407
2056 2 46 FT
5
40
46
1161466
2056 2 52 FT
5
46
52
1161520
2056 2 58 FT
5
52
58
1161571
2056 2 64 FT
5
58
64
1161644
