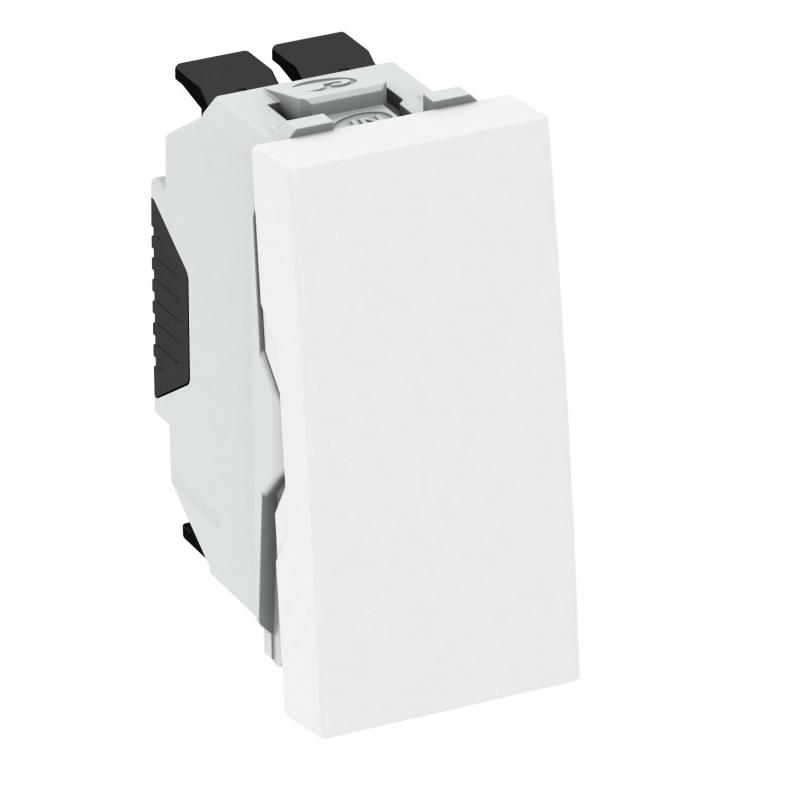

Changeover switch, 1/2 module
Type TA-WB RW0.5
|Item no. 6120960
|EAN 4012196570966
Item no. / Type
6120960 / TA-WB RW0.5
Smallest selling unit: 1 piece
1piece
piece
Description
Changeover switch, 1-pin, 10 A, 250 V~, with screwless terminals.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data

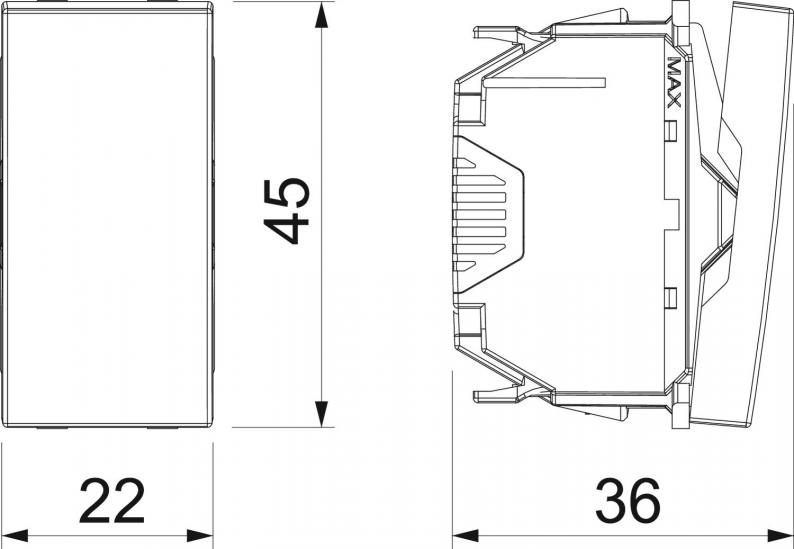

Dimensions
| Width | 22,5 mm |
|---|---|
| Height | 45 mm |
Technical data
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Depth | 36 mm |
| Surface version | Matt |
| Mounting type | Device installation duct |
| Fastening type | Lock |
| Dimension | 10 A, 250 V |
| Material | Polycarbonate |
| Colour | Pure white; RAL 9010 |
