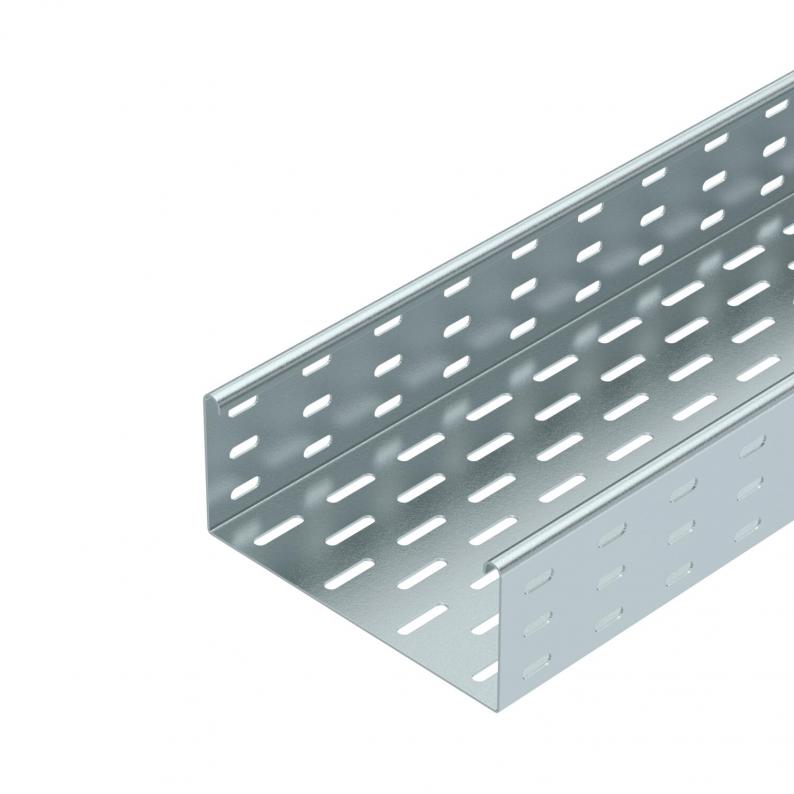

Cable tray SKS 85 NC FS
Type SKS 810 NC FS
|Item no. 6058109
|EAN 4012196978984
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
SKS 85 = heavy-duty cable tray system with 85 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data

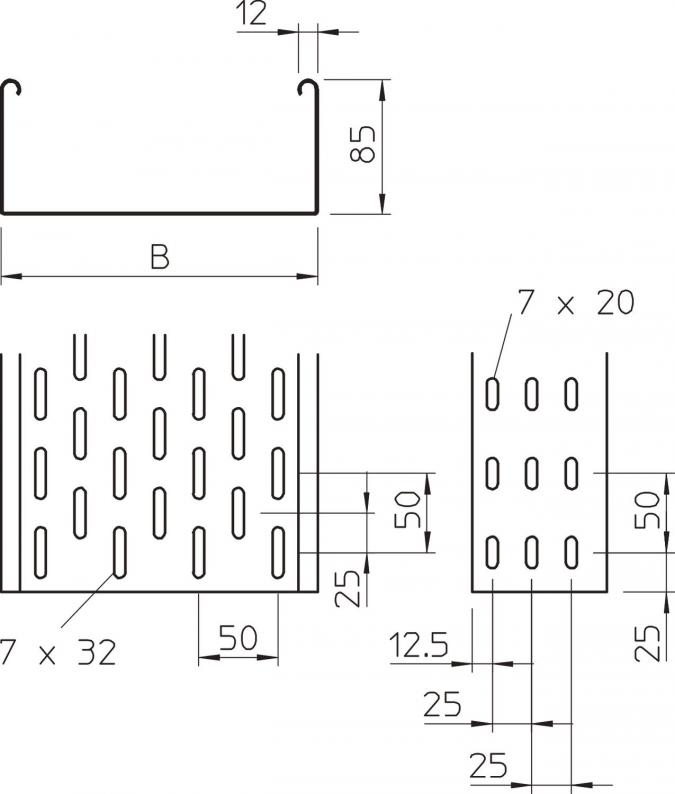

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 85 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 83 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 1,5 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 8300 mm² |
| Base perforation | 7 x 32 |
| Dimension | 85x100x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 2,25 kN/m |
|---|---|
| Support spacing 2.5 m | 1,5 kN/m |
| Support spacing 3.0 m | 0,75 kN/m |
| Support spacing 1.5 m | 2,8 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Certificates (1)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
SKS 810 NC FS
3000
100
no
1,5
Strip galvanized
Steel
6058109
SKS 820 NC FS
3000
200
no
1,5
Strip galvanized
Steel
6058206
SKS 830 NC FS
3000
300
no
1,5
Strip galvanized
Steel
6058303
SKS 840 NC FS
3000
400
no
1,5
Strip galvanized
Steel
6058397
SKS 850 NC FS
3000
500
no
1,5
Strip galvanized
Steel
6058508
SKS 860 NC FS
3000
600
no
1,5
Strip galvanized
Steel
6058605
Width
SKS 810 NC FS
Item no.
6058109
Length
3000
Width
100
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 820 NC FS
Item no.
6058206
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 830 NC FS
Item no.
6058303
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 840 NC FS
Item no.
6058397
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 850 NC FS
Item no.
6058508
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 860 NC FS
Item no.
6058605
Length
3000
Width
600
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
