Cable tray SKS 110 NC FS

Cable tray SKS 110 NC FS

Type SKS 110 NC FS
|
Item no. 6061110
|
EAN 4012196979431
Show all variants
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsVariants

Description

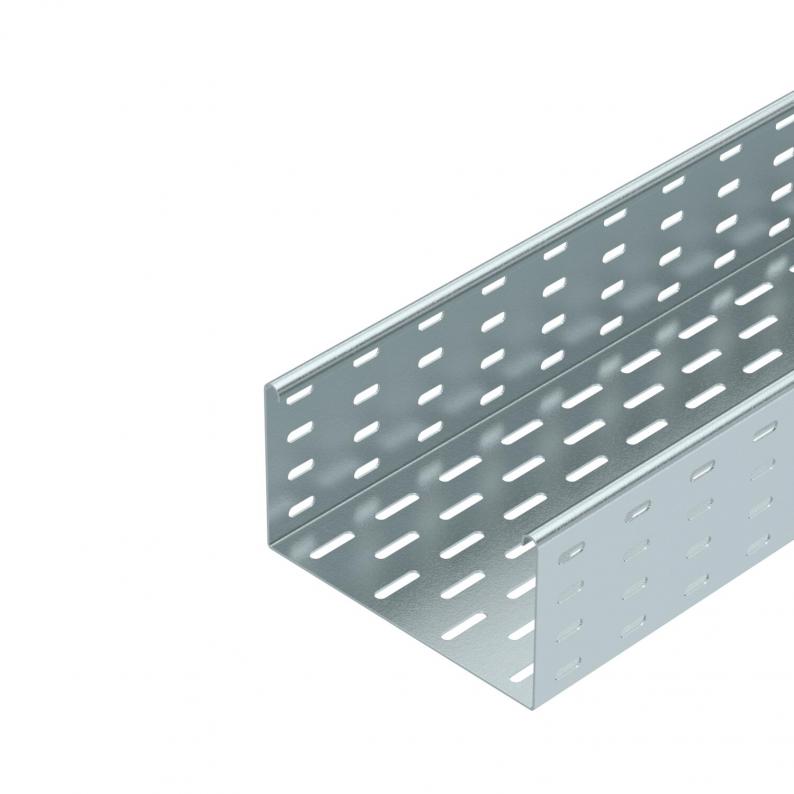

SKS 110 = heavy-duty cable tray system with 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

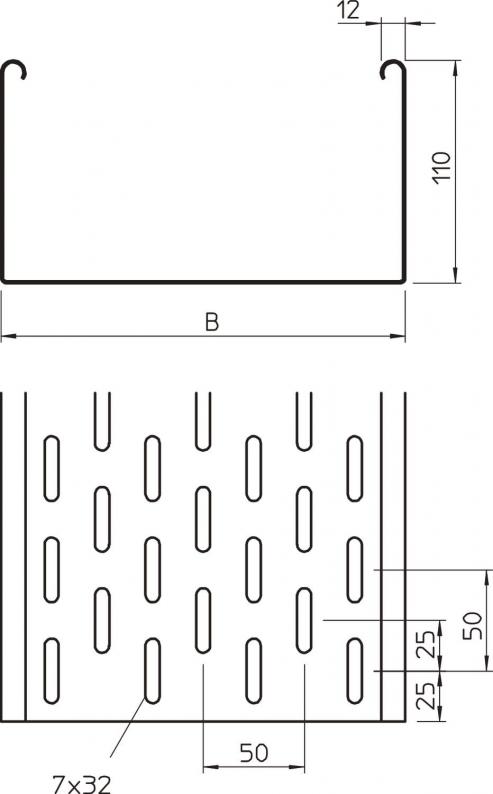

Dimensions

Length3000 mm
Width100 mm
Height110 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationyes
Wide-span versionno
Usable cross-section108 cm²
Rustproof steel, pickledno
Plate thickness1,5 mm
Mounting perforation in baseyes
NATO hole patternno
Usable cross-section10800 mm²
Dimension110x100x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Load test type according to IEC 61537Type II
Type of connector, cable support systemScrewed

Loads

Support spacing 2.0 m2,4 kN/m
Support spacing 3.0 m1,2 kN/m
Support spacing 4.0 m0,8 kN/m
Support spacing 1.5 m3 kN/m

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Instructions and Aid (2)
Product images (2)
Tender specifications (2)

Variants

Width
SKS 110 NC FS
Item no.
6061110
Length
3000
Width
100
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 120 NC FS
Item no.
6061207
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 130 NC FS
Item no.
6061304
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 140 NC FS
Item no.
6061401
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
SKS 150 NC FS
Item no.
6061509
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,5
Surface
Strip galvanized
Material
Steel
