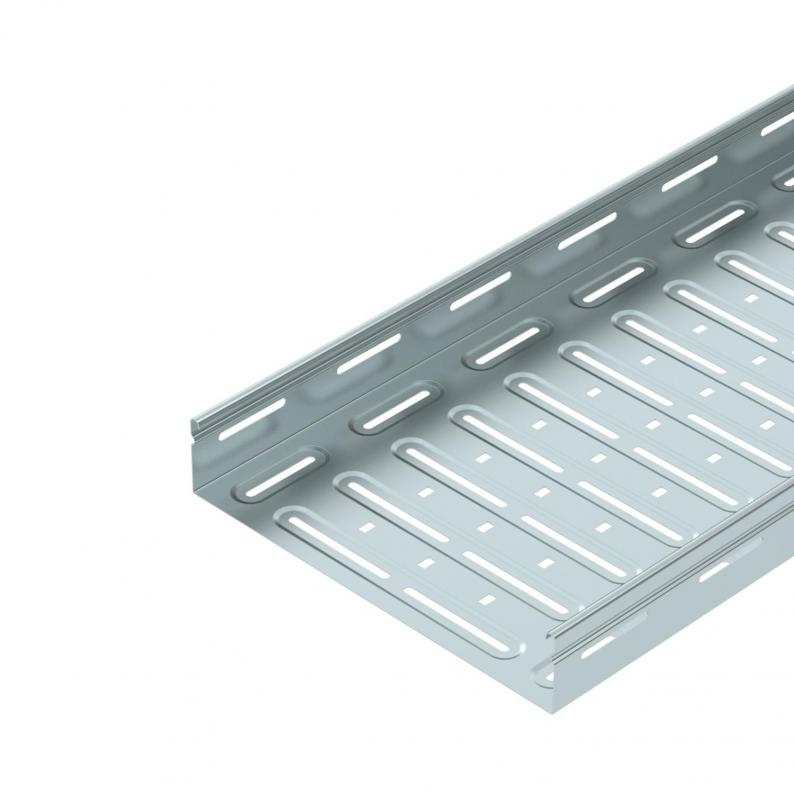

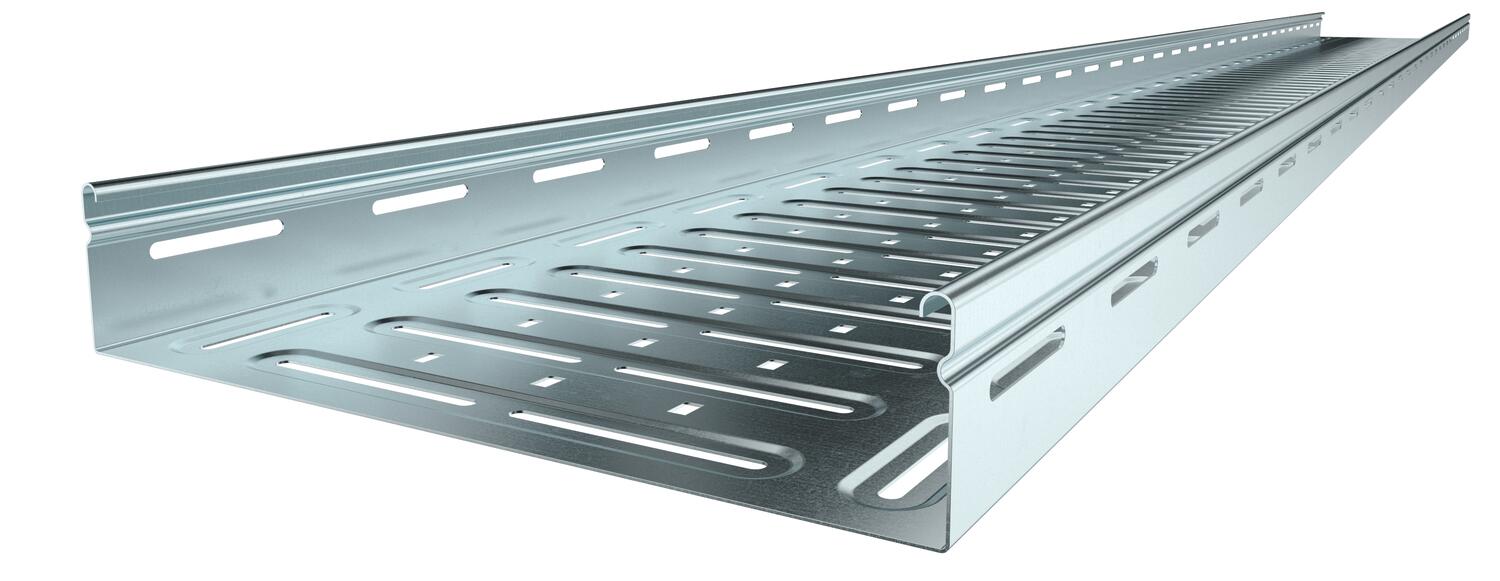

Cable tray GKS GX 60 FS
Type GKS GX 605 FS
|Item no. 6480030
|EAN 4012196878765
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
GKS 60 GX = perforated cable tray system with 60 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 50 mm |
| Height | 60 mm |
| Dimension L | 3000 mm |
| Dimension B | 50 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 16 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 1600 mm² |
| With cover | no |
| Dimension | 60 x 50 |
| Base perforation | 7 x 50 |
| Dimension | 60x50x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 0,5 kN/m |
|---|---|
| Support spacing 2.5 m | 0,3 kN/m |
| Support spacing 1.0 m | 1,2 kN/m |
| Support spacing 1.5 m | 0,6 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Ab der Breite 100 mm mit Stoßstellenleiste geprüft
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
GKS GX 610 FS
3000
100
no
0,6
Strip galvanized
Steel
6480031
GKS GX 615 FS
3000
150
no
0,7
Strip galvanized
Steel
6480032
GKS GX 620 FS
3000
200
no
0,7
Strip galvanized
Steel
6480033
GKS GX 630 FS
3000
300
no
1
Strip galvanized
Steel
6480034
GKS GX 640 FS
3000
400
no
1,2
Strip galvanized
Steel
6480035
GKS GX 650 FS
3000
500
no
1,2
Strip galvanized
Steel
6480036
GKS GX 605 FS
3000
50
no
0,8
Strip galvanized
Steel
6480030
