Cable tray GKS FL 100 FS
Type GKS FL 115 FS
|Item no. 6480022
|EAN 4012195486329
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

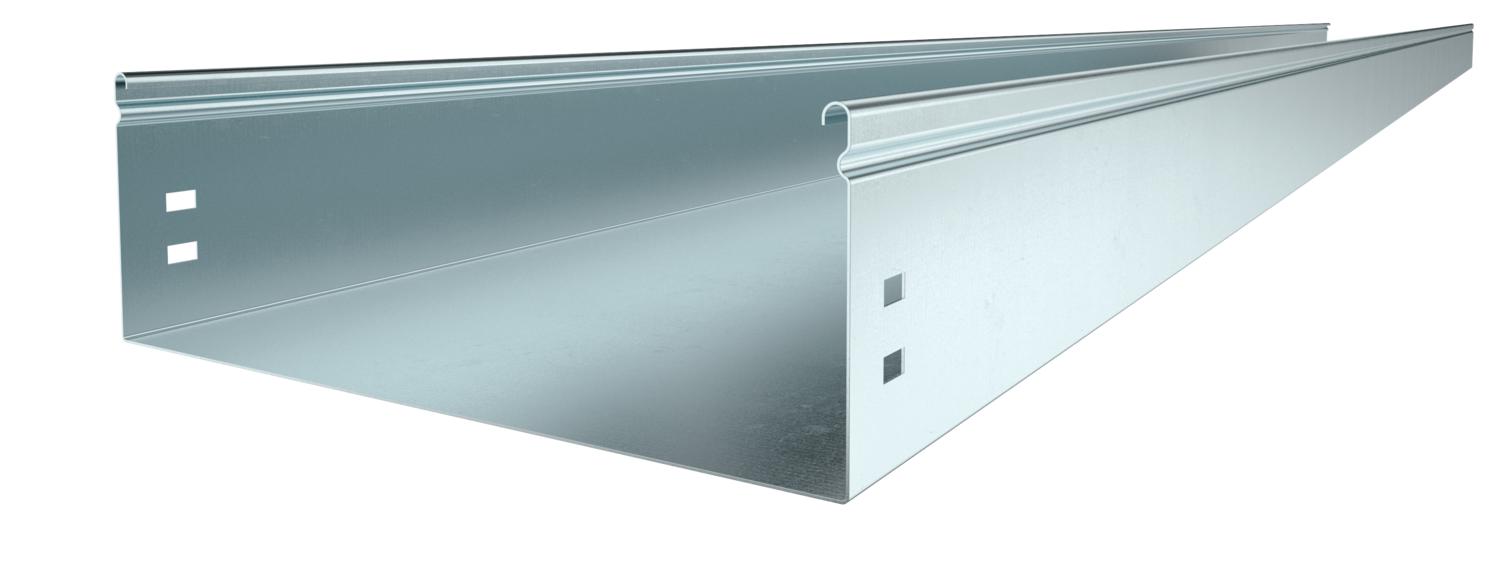

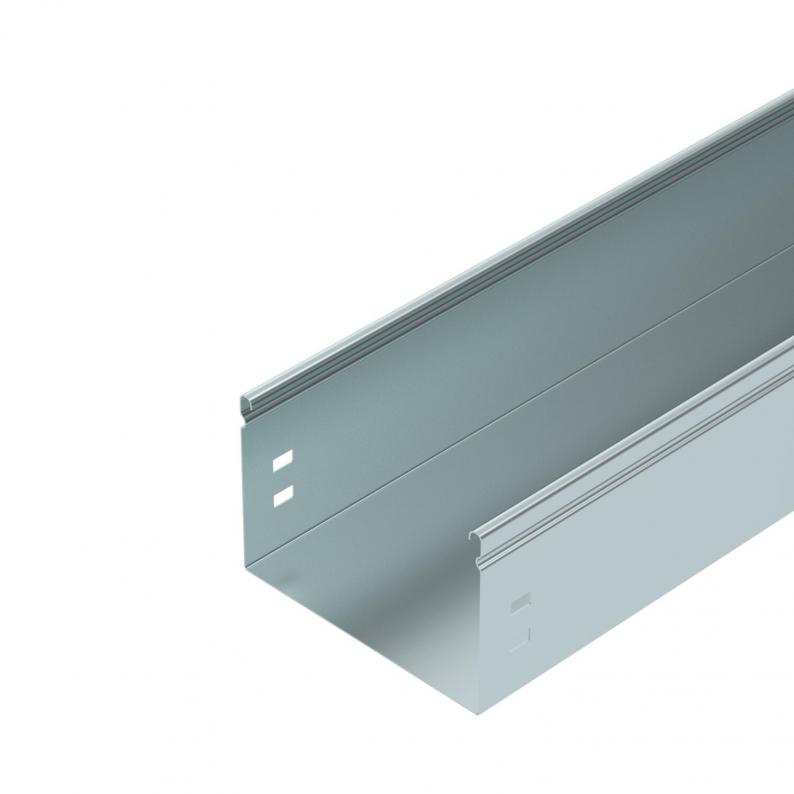

GKS 100 FL = unperforated cable tray system with 100 mm side height
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Technical data

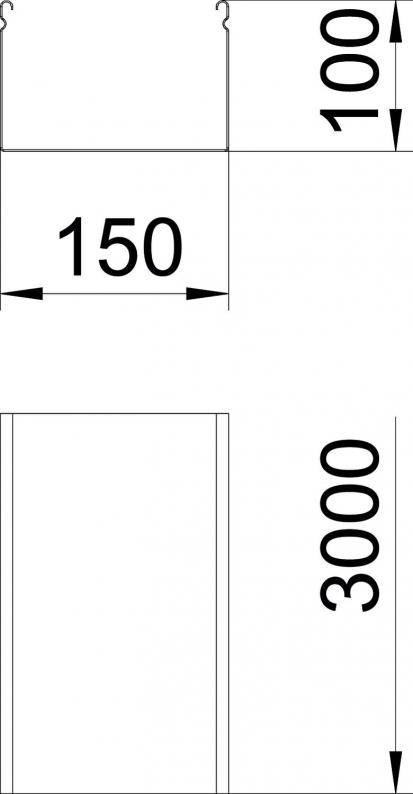

Dimensions
| Length | 3000 mm |
|---|---|
| Width | 150 mm |
| Height | 100 mm |
| Dimension L | 3000 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Usable cross-section | 148 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 0,9 mm |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Usable cross-section | 14800 mm² |
| With cover | no |
| Dimension | 100x150x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
Loads
| Support spacing 2.0 m | 1,3 kN/m |
|---|---|
| Support spacing 2.5 m | 0,75 kN/m |
| Support spacing 3.0 m | 0,6 kN/m |
| Support spacing 1.5 m | 1,85 kN/m |

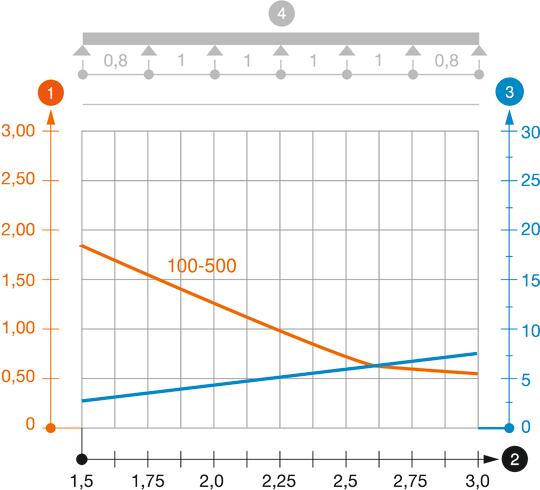

Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
GKS FL 115 FS
3000
150
no
0,9
Strip galvanized
Steel
6480022
GKS FL 120 FS
3000
200
no
0,9
Strip galvanized
Steel
6480023
GKS FL 130 FS
3000
300
no
1
Strip galvanized
Steel
6480024
GKS FL 140 FS
3000
400
no
1,2
Strip galvanized
Steel
6480025
GKS FL 150 FS
3000
500
no
1,2
Strip galvanized
Steel
6480026
Width
Plate thickness
GKS FL 115 FS
Item no.
6480022
Length
3000
Width
150
Maintain electrical functions
no
Plate thickness
0,9
Surface
Strip galvanized
Material
Steel
GKS FL 120 FS
Item no.
6480023
Length
3000
Width
200
Maintain electrical functions
no
Plate thickness
0,9
Surface
Strip galvanized
Material
Steel
GKS FL 130 FS
Item no.
6480024
Length
3000
Width
300
Maintain electrical functions
no
Plate thickness
1
Surface
Strip galvanized
Material
Steel
GKS FL 140 FS
Item no.
6480025
Length
3000
Width
400
Maintain electrical functions
no
Plate thickness
1,2
Surface
Strip galvanized
Material
Steel
GKS FL 150 FS
Item no.
6480026
Length
3000
Width
500
Maintain electrical functions
no
Plate thickness
1,2
Surface
Strip galvanized
Material
Steel
