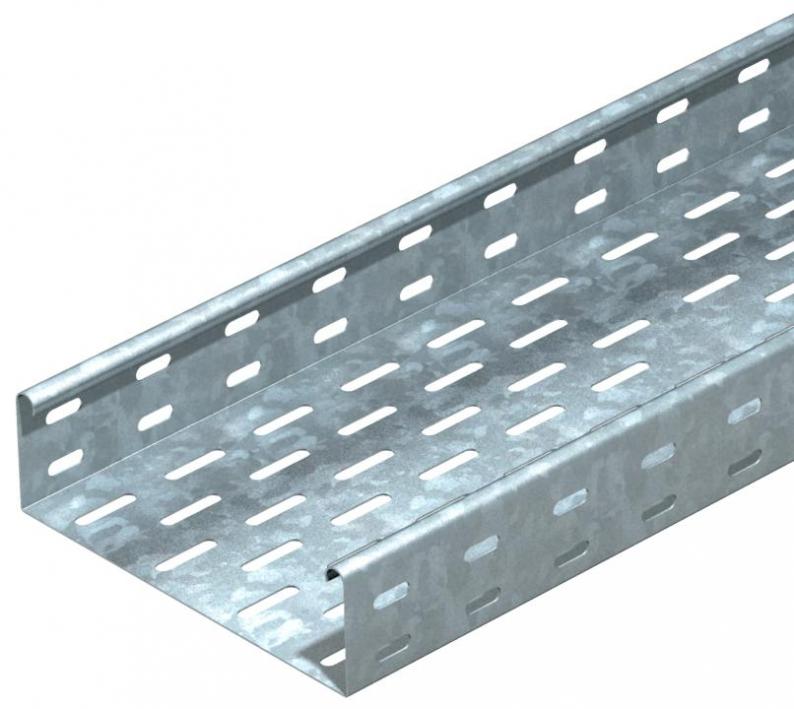

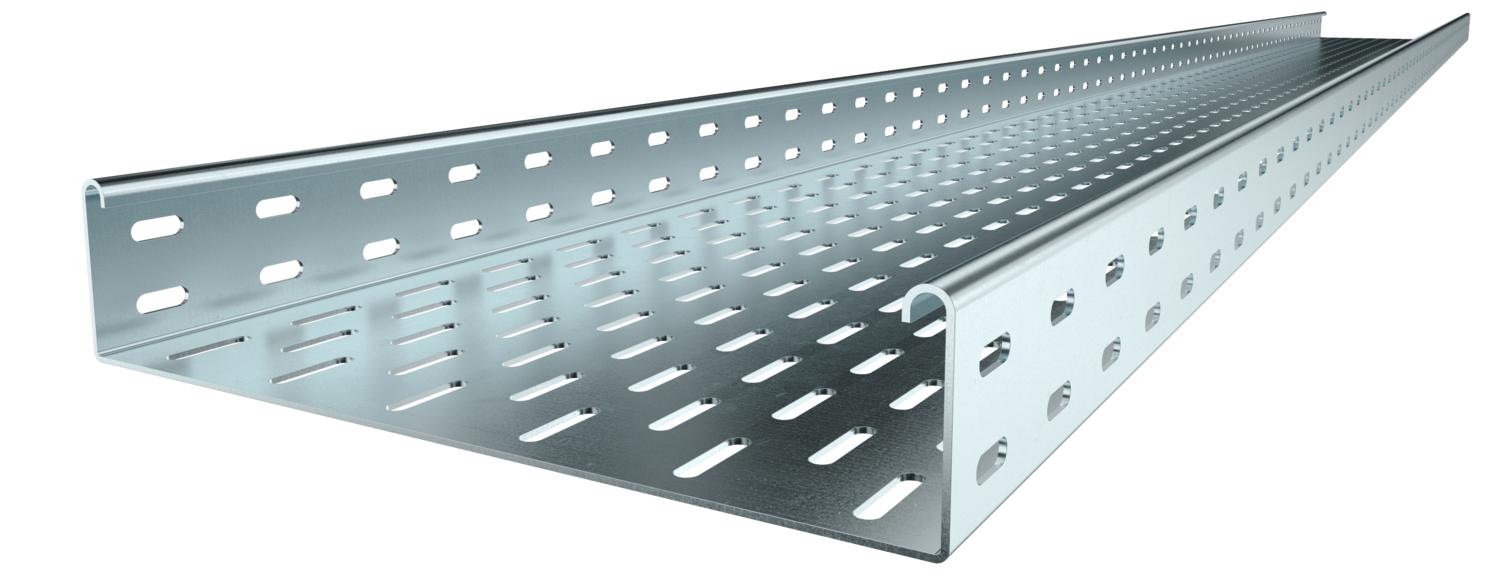

Cable tray EKS 60 FS
Type EKS 610 FS
|Item no. 6056148
|EAN 4012196542659
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
EKS 60 = extra-heavy cable tray system with 60 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Straight connectors should be ordered separately for all the versions.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 60 mm |
| Dimension B | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | yes |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 58 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 5800 mm² |
| With cover | no |
| Dimension | 60 x 100 |
| Dimension | 60x100x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,5763 kg CO2e / 1 Meter |
Loads
| Support spacing 2.0 m | 2,2 kN/m |
|---|---|
| Support spacing 2.5 m | 1,6 kN/m |
| Support spacing 3.0 m | 0,95 kN/m |
| Support spacing 1.5 m | 3,3 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing
Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
