Cable tray BKRS 110 FS
Type BKRS 1110 FS
|Item no. 6061981
|EAN 4012196147007
Item no. / Type
Length
Width
Plate thickness
Maintain electrical functions
no
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description

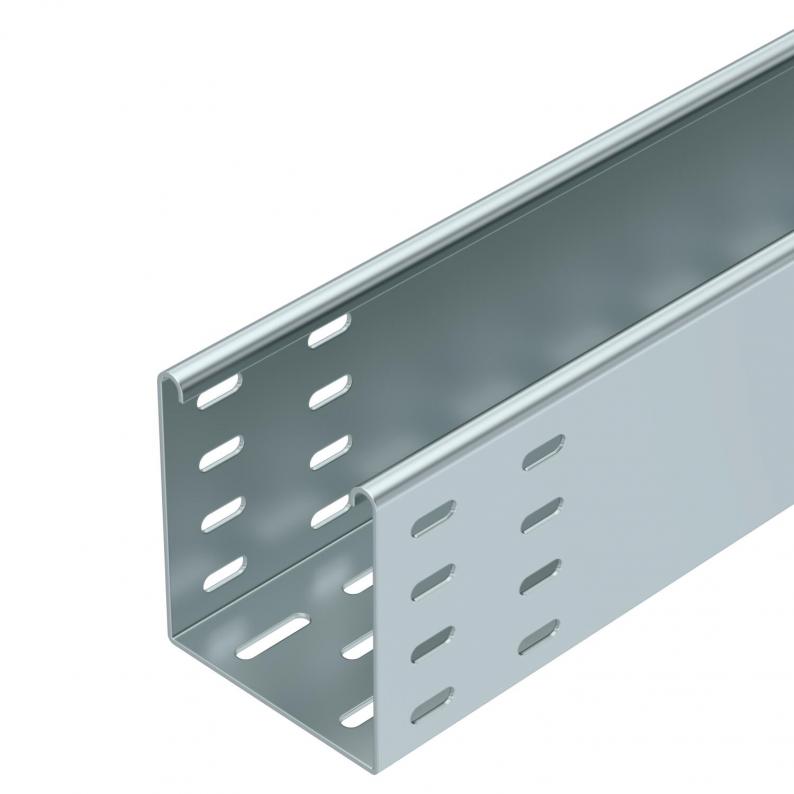

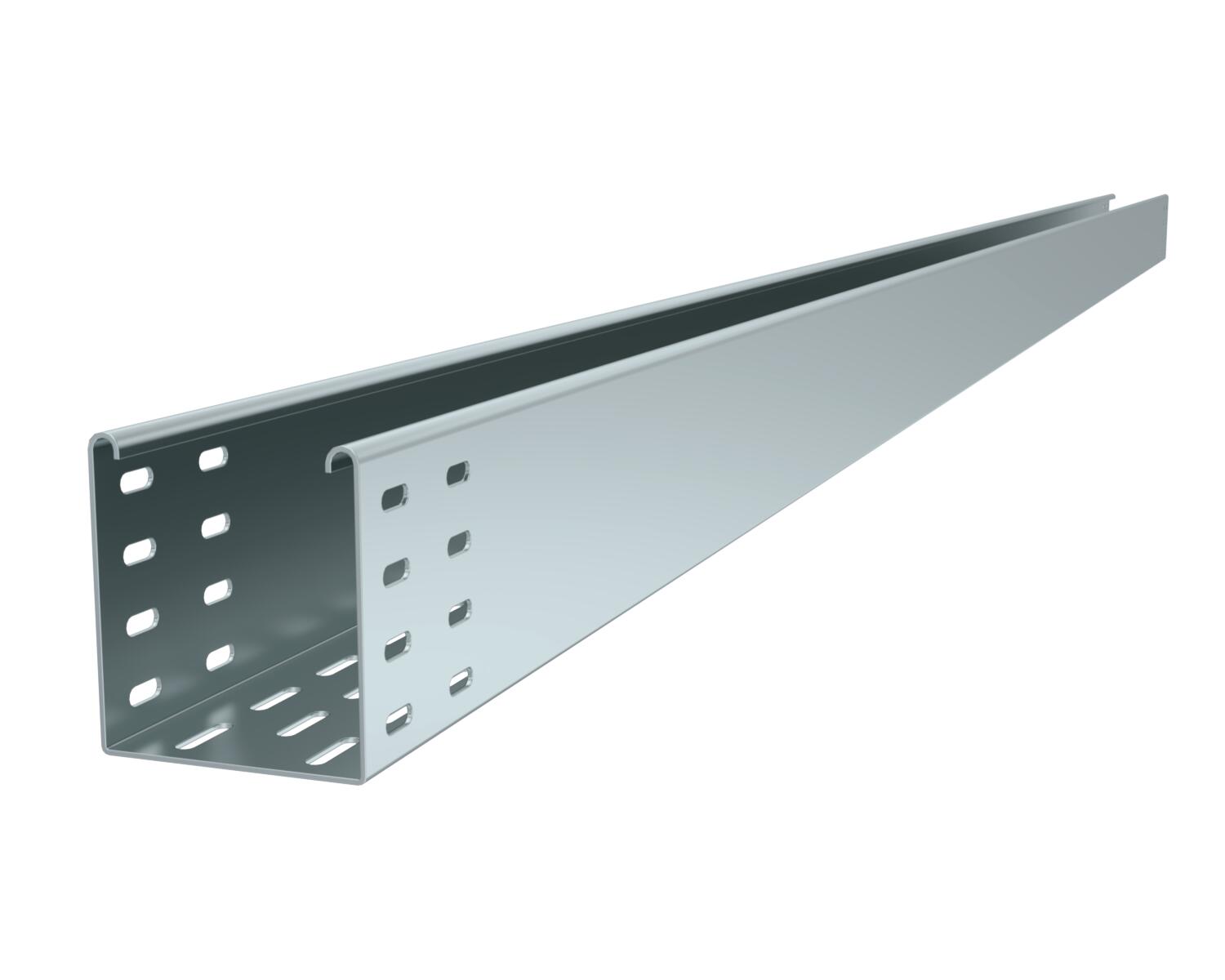

Heavy-duty, walkable cable tray system BKRS with base perforation, in 110 mm side height.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
Magnetic shield insulation without cover 20 dB, with cover 50 dB.
The cable tray has connector perforations on both sides.
Straight connectors should be ordered separately and in the appropriate quantity.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 100 mm |
| Height | 110 mm |
| Dimension L | 3000 mm |
| Dimension B | 100 mm |
| Dimension H | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Usable cross-section | 96 cm² |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Usable cross-section | 9600 mm² |
| With cover | no |
| Dimension | 110x100x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Load test type according to IEC 61537 | Type II |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,0361 kg CO2e / 1 Meter |
Loads
| Support spacing 1.5 m | 5,07 kN/m |
|---|---|
| Support spacing 2.0 m | 4,75 kN/m |
| Support spacing 2.5 m | 2,73 kN/m |
| Support spacing 3.0 m | 2 kN/m |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (4)
Certificates (1)
Instructions and Aid (5)
Product images (4)
3D data downloads (2)
Tender specifications (2)
Accessories
Mounting accessories
System accessories
Article
Type
Item no.
Amount
Variants
Type
Length
Width
Maintain electrical functions
Plate thickness
Surface
Material
Item no.
BKRS 1110 FS
3000
100
no
2
Strip galvanized
Steel
6061981
BKRS 1120 FS
3000
200
no
2
Strip galvanized
Steel
6061983
BKRS 1130 FS
3000
300
no
2
Strip galvanized
Steel
6061985
BKRS 1140 FS
3000
400
no
2
Strip galvanized
Steel
6061987
BKRS 1150 FS
3000
500
no
2
Strip galvanized
Steel
6061989
BKRS 1160 FS
3000
600
no
2
Strip galvanized
Steel
6061991
