Cable ladder LG 50, 3 m FS

Cable ladder LG 50, 3 m FS

Type LG 520 VS FS
|
Item no. 6487012
|
EAN 4012196512218
Show all variants
Item no. / Type
Length
Width
Rail thickness
Surface
Strip galvanized
Material
Steel

Smallest selling unit: 3 m

m

DescriptionTechnical dataDownloadsVariants

Description

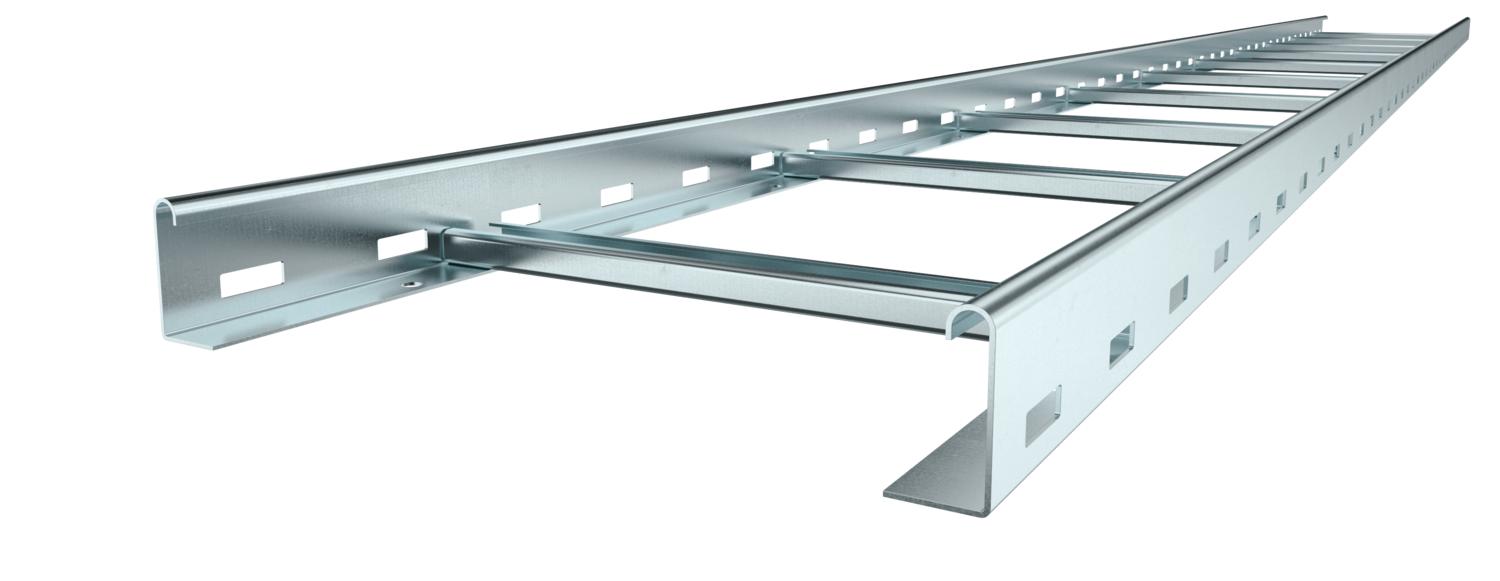

Cable ladder with perforated side rail of side height 50 mm with riveted C profile rungs, open in an upwards direction. Assignment of the rungs on both sides possible using U clamps.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

Dimensions

Length3000 mm
Width200 mm
Height50 mm

Technical data

Wide-span versionno
Usable cross-section60 cm²
Usable cross-section6000 mm²
Rung distance300 mm
Fastening of rungBlind riveted
Rail thickness1,5 mm
Dimension50x200x3000
SurfaceStrip galvanized
MaterialSteel
Colourzinc

Loads

Support spacing 2.0 m0,7 kN/m
Support spacing 2.5 m0,5 kN/m
Support spacing 3.0 m0,35 kN/m

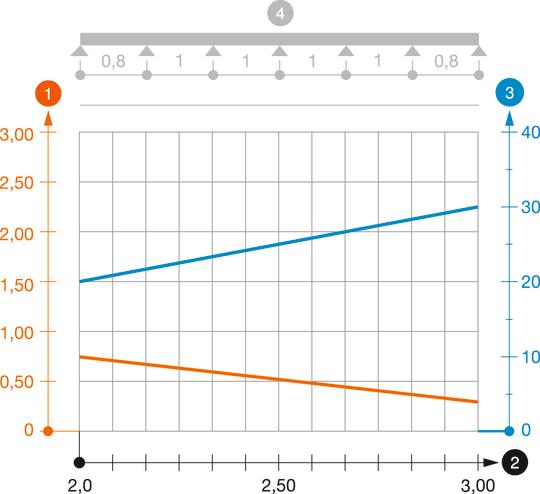

Load diagram, cable ladder, type LG 5... VS

Permitted cable tray/ladder load in kN/m without man load

Support width in m

Rail bend in mm at permitted kN/m

Load scheme during testing

Load curve with cable tray/ladder width in mm

Strut bend curve according to support width

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

Width
LG 520 VS FS
Item no.
6487012
Length
3000
Width
200
Rail thickness
1,5
Surface
Strip galvanized
Material
Steel
LG 530 VS FS
Item no.
6487014
Length
3000
Width
300
Rail thickness
1,5
Surface
Strip galvanized
Material
Steel
LG 545 VS FS
Item no.
6487017
Length
3000
Width
450
Rail thickness
1,5
Surface
Strip galvanized
Material
Steel
LG 560 VS FS
Item no.
6487019
Length
3000
Width
600
Rail thickness
1,5
Surface
Strip galvanized
Material
Steel
