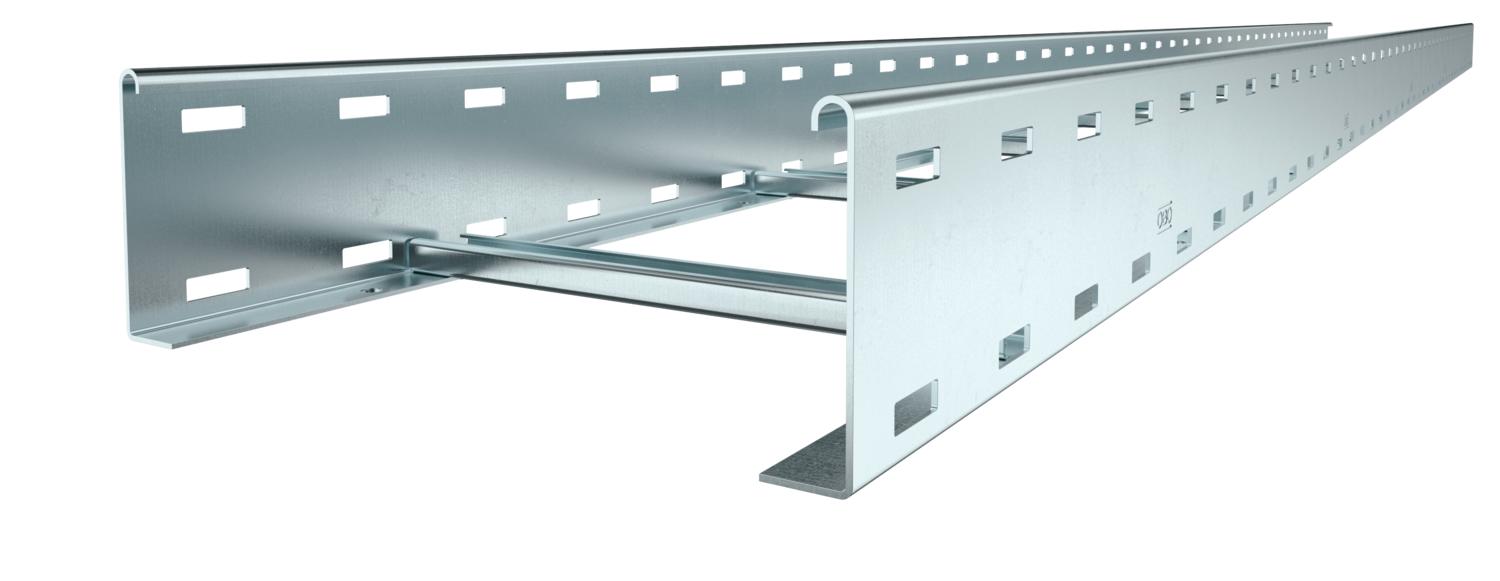

Cable ladder LG 100, 3 m VS FS
Type LG 1020 VS FS
|Item no. 6487122
|EAN 4012196512560
Item no. / Type
Length
Width
Rail thickness
Maintain electrical functions
yes
Surface
Strip galvanized
Material
Steel
Smallest selling unit: 3 m
3m
m
Description
Cable ladder with perforated side rail of side height 100 mm with riveted C profile rungs, open in an upwards direction. Assignment of the rungs on both sides possible using U clamps.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
Technical data
Dimensions
| Length | 3000 mm |
|---|---|
| Width | 200 mm |
| Height | 100 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | yes |
| Wide-span version | no |
| Usable cross-section | 158 cm² |
| Rustproof steel, pickled | no |
| Usable cross-section | 15800 mm² |
| Rung distance | 300 mm |
| Version of the rungs | Profile perforated |
| Side rail version | Flat profile |
| Fastening of rung | Blind riveted |
| Rail thickness | 2 mm |
| Dimension | 100x200x3000 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Loads
| Support spacing 2.0 m | 2,6 kN/m |
|---|---|
| Support spacing 2.5 m | 1,7 kN/m |
| Support spacing 3.0 m | 1,3 kN/m |
| Support spacing 4.0 m | 0,5 kN/m |
Permitted cable tray/ladder load in kN/m without man load
Support width in m
Rail bend in mm at permitted kN/m
Load scheme during testing

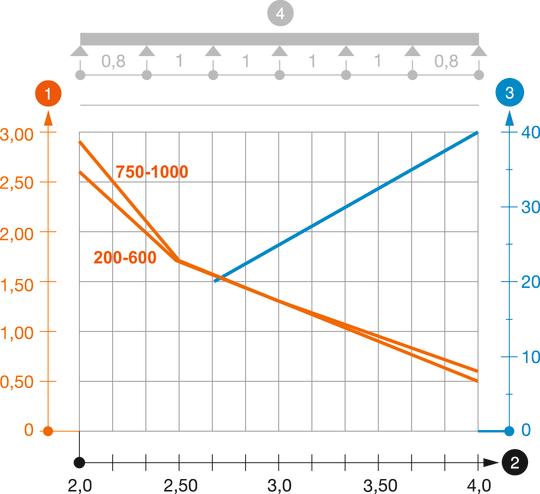

Load curve with cable tray/ladder width in mm
Strut bend curve according to support width
