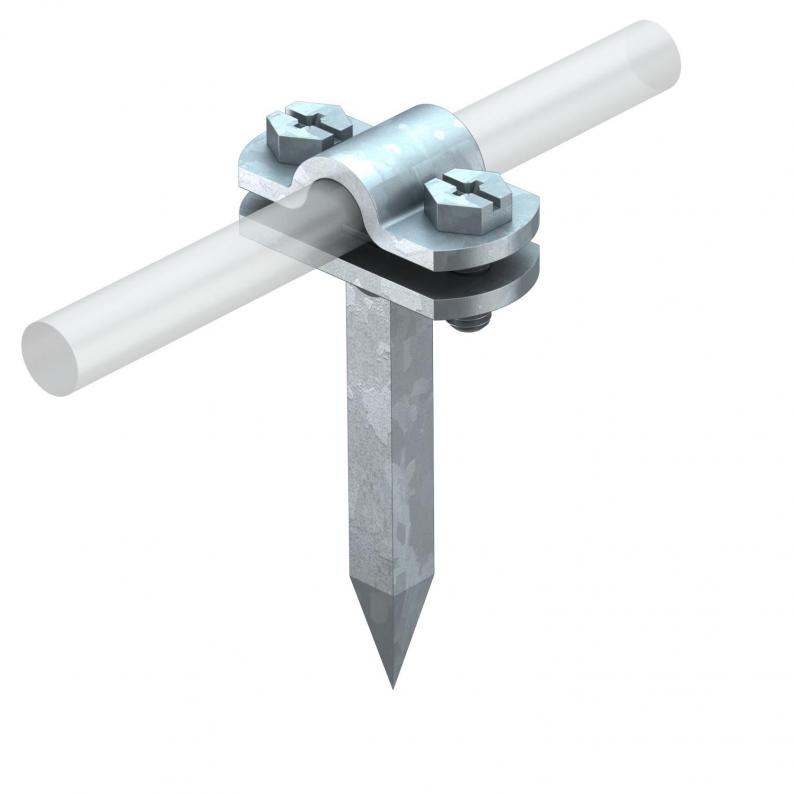

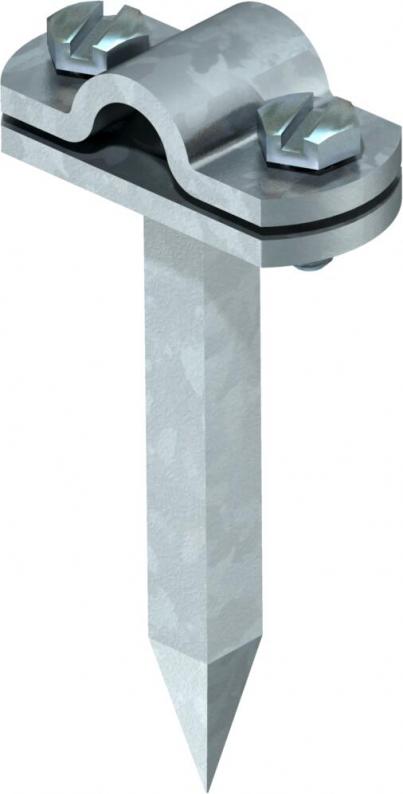

Cable bracket Rd 8−10 mm, with square pin
Type 163 70 FT
|Item no. 5223075
|EAN 4012195409458
Item no. / Type
5223075 / 163 70 FT
Smallest selling unit: 50 piece
50piece
piece
Description
• Complete with crossbar and hexagonal bolts
• With square pin for rapid mounting
• With hexagonal bolts made of VA
• With square pin for rapid mounting
• With hexagonal bolts made of VA
Technical data

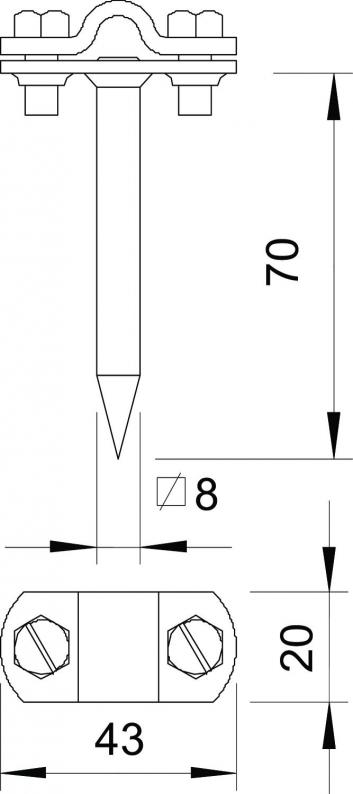

Dimensions
| Length | 70 mm |
|---|---|
| Dimension L | 70 mm |
Technical data
| Holder fastening type | With impact pin |
|---|---|
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Steel |
| Material of the base | Steel |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Steel |
| Dimension | 70mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2236 kg CO2e / 1 Piece |
