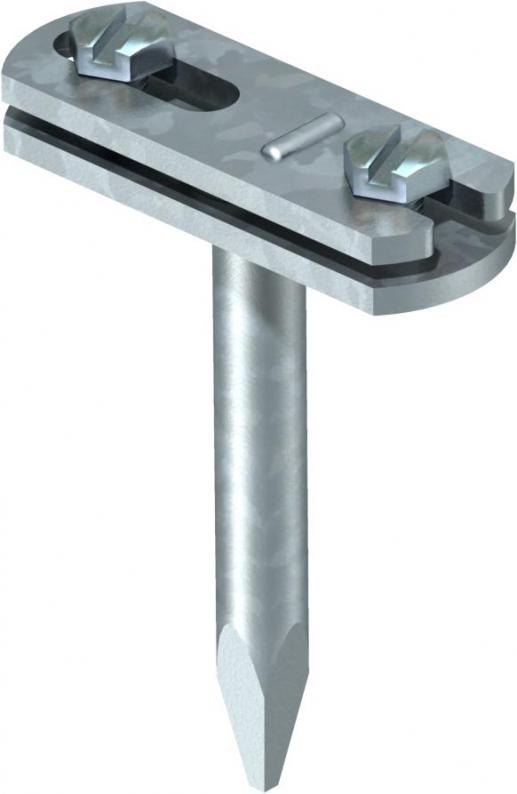

Cable bracket for flat conductors, with round pin
Type 166 LS 70
|Item no. 5226570
|EAN 4012195410416
Item no. / Type
5226570 / 166 LS 70
Smallest selling unit: 50 piece
50piece
piece
Description
• With crossbar and 2 hexagonal bolts (VA)
• With loose round pin Ø 9 mm
• With loose round pin Ø 9 mm
Technical data

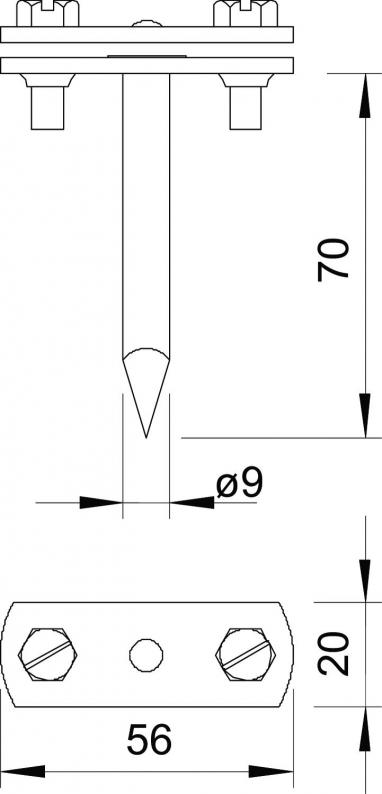

Dimensions
| Length | 70 mm |
|---|
Technical data
| Holder fastening type | With impact pin |
|---|---|
| High voltage-resistant, insulated version | no |
| Material of the crossbar | Steel |
| Material of the base | Steel |
| Conductor fastening type | With screw clip |
| Use in Ex area | yes |
| Material of the holder | Steel |
| Dimension | 70mm |
| Surface | Hot-dip galvanised |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,268 kg CO2e / 1 Piece |
