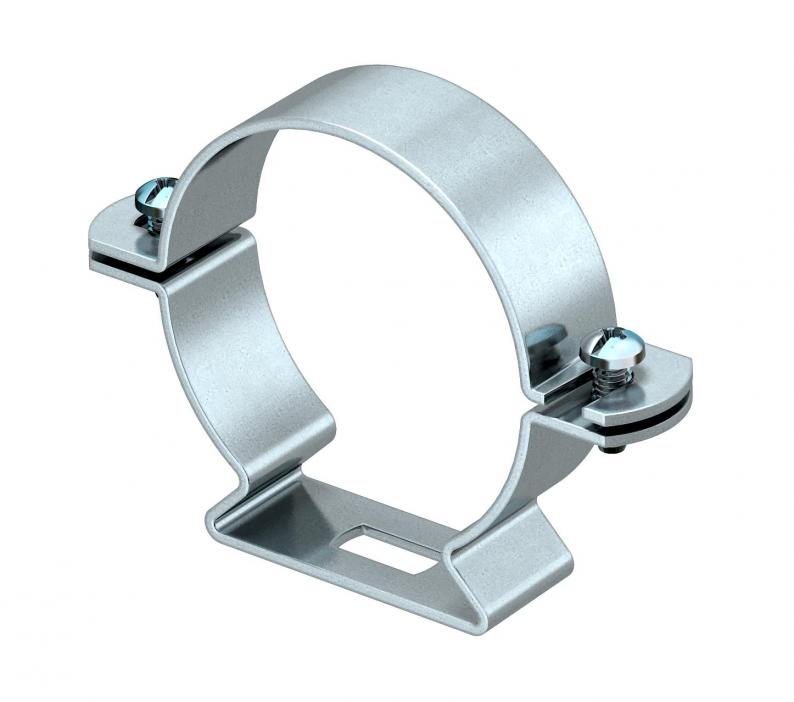

Cable and pipe spacer clip 733 G
Type 733 19 G
|Item no. 1361198
|EAN 4012195116059
Item no. / Type
1361198 / 733 19 G
Surface
Electrogalvanized
Material
Steel
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 50 piece
50piece
piece
Description
* Size M16 is not suitable for nail device
* Sizes M16 - PG16 are not suitable for bolt-firing tool
* Sizes M16 - PG16 are not suitable for bolt-firing tool
Technical data

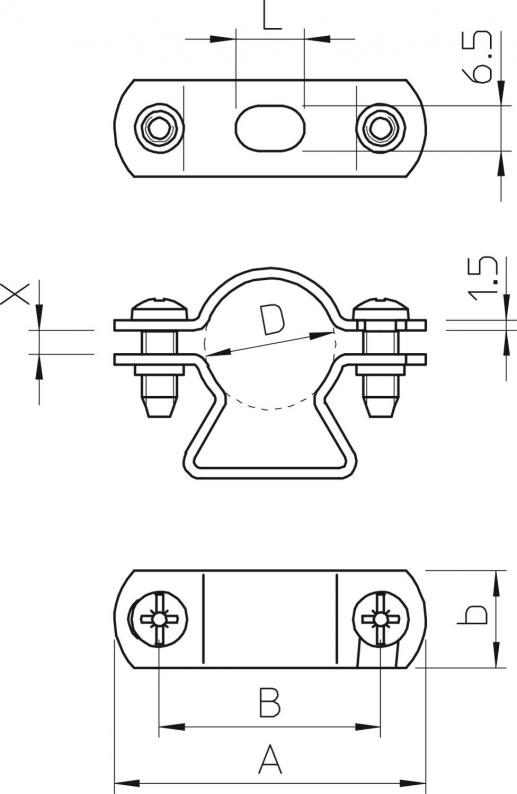

Dimensions
| Length | 45 mm |
|---|---|
| Dimension L | 10 mm |
| Dimension A | 45 mm |
| Dimension B | 32 mm |
| Dimension b | 14 mm |
| Dimension x | 10,25 mm |
| Dimension D | 19 mm |
Technical data
| Material thickness | 1,5 mm |
|---|---|
| For diameter | 19 |
| Hole size | 6,5 x 10 mm |
| Halogen-free | yes |
| Size | Pg11 |
| UV-resistant | yes |
| Plastic-covered | no |
| Suitable in fire protection area | no |
| Number of cables/pipes | 1 |
| Bolt | M5 x 14 |
| Distance to the wall | yes |
| Version for | Closed |
| Fastening type | Screw hole |
| Clamping range D, min. | 17 mm |
| Clamping range D, max. | 19 mm |
| Dimension | 17-19mm |
| Surface | Electrogalvanized |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0599 kg CO₂e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Material thickness
Hole size
Clamping range D, min.
Clamping range D, max.
Surface
Material
Item no.
733 19 G
1,5
6,5 x 10
17
19
Electrogalvanized
Steel
1361198
733 19 G
Item no.
1361198
Material thickness
1,5
Hole size
6,5 x 10
Clamping range D, min.
17
Clamping range D, max.
19
Surface
Electrogalvanized
Material
Steel
