Beam clamp, with female thread
Type BCUIT 14-20 M6
|Item no. 1483625
|EAN 4012196502318
Item no. / Type
Dimension L
Dimension B
Flange thickness F min.
Flange thickness F max.
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 100 piece
100piece
piece
Description
Beam clamp for knocking in with internal thread as individual fastening solution on the beam.
Technical data

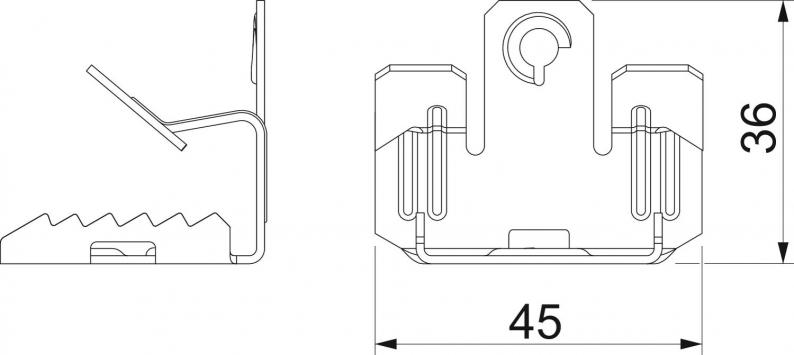

Dimensions
| Dimension L | 36 mm |
|---|---|
| Dimension B | 45 mm |
Technical data
| Fastening hole | 7 mm |
|---|---|
| Thread metric | 6 |
| Thread | M6 |
| Hinged | no |
| Hinge, adjustable | no |
| Breaking load | 0,45 kN |
| Fastening type | Clamp |
| Connection type/component | Thread |
| Flange thickness F min. | 14 mm |
| Flange thickness F max. | 20 mm |
| Dimension | 14-20mm |
| Surface | Zinc slat |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Declarations (3)
Instructions and Aid (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension L
Dimension B
Flange thickness F min.
Flange thickness F max.
Item no.
BCUIT 3-7 M6
33
45
3
7
1483621
BCUIT 8-12,5 M6
36
45
8
12
1483623
BCUIT 14-20 M6
36
45
14
20
1483625
Dimension L
Flange thickness F min.
Flange thickness F max.
BCUIT 3-7 M6
Item no.
1483621
Dimension L
33
Dimension B
45
Flange thickness F min.
3
Flange thickness F max.
7
BCUIT 8-12,5 M6
Item no.
1483623
Dimension L
36
Dimension B
45
Flange thickness F min.
8
Flange thickness F max.
12
BCUIT 14-20 M6
Item no.
1483625
Dimension L
36
Dimension B
45
Flange thickness F min.
14
Flange thickness F max.
20
