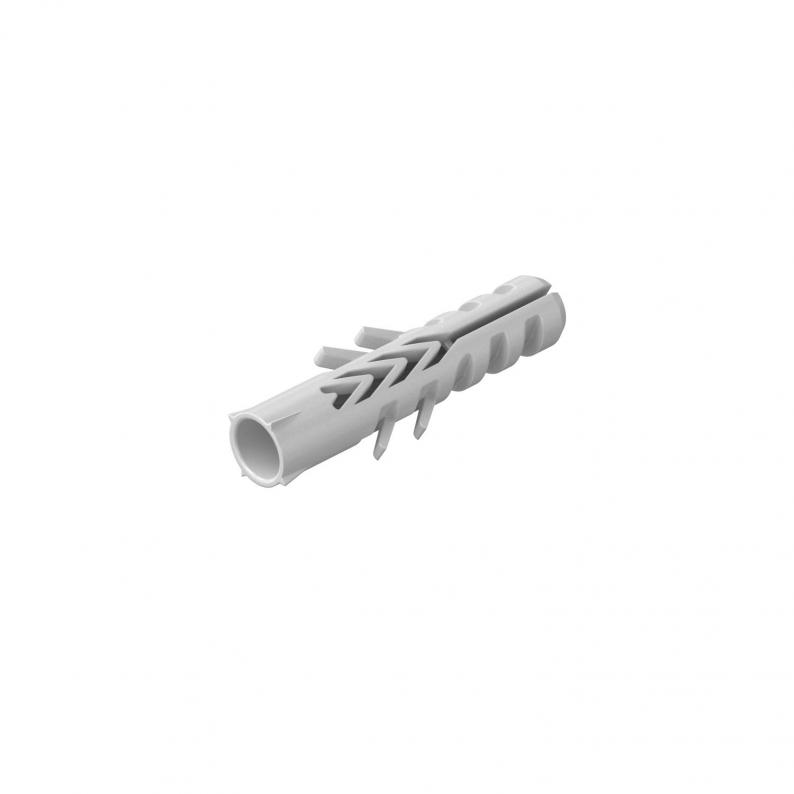

Angler spreading anchor
Type 910 F 5x25
|Item no. 2349480
|EAN 4012196788613
Item no. / Type
Length
Diameter
Drill hole diameter, min.
Drill hole depth
Smallest selling unit: 100 piece
100piece
piece
Description
Required minimum screw length = anchor length + component thickness + 1 x screw Ø.
Withdrawal force applies to wood screws of the largest screw diameter, required safety values must be taken into account.
Withdrawal force applies to wood screws of the largest screw diameter, required safety values must be taken into account.
Technical data

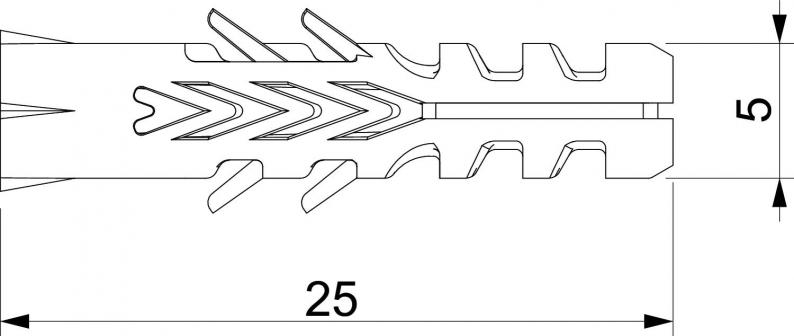

Dimensions
| Length | 25 mm |
|---|---|
| Dimension L | 25 mm |
| Dimension D | 5 mm |
Technical data
| Diameter | 5 mm |
|---|---|
| Halogen-free | yes |
| Wood screws | 2,5-4 |
| With bolts | no |
| Suitable for hexagonal wood screw | yes |
| Suitable for fastening with cable ties | no |
| Version for | Universal anchor |
| Drill hole diameter, min. | 5 mm |
| Drill hole depth | 30 mm |
| Dimension | 5x25 |
| Material | Polyamide |
| Colour | Light grey |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (2)
Product images (2)
Tender specifications (2)
Variants
Type
Length
Diameter
Drill hole diameter, min.
Drill hole depth
Item no.
910 F 5x25
25
5
5
30
2349480
910 F 6x30
30
6
2349482
910 F 10x50
50
10
2349486
910 F 12x60
60
12
2349488
Length
Diameter
910 F 5x25
Item no.
2349480
Length
25
Diameter
5
Drill hole diameter, min.
5
Drill hole depth
30
910 F 6x30
Item no.
2349482
Length
30
Diameter
6
910 F 10x50
Item no.
2349486
Length
50
Diameter
10
910 F 12x60
Item no.
2349488
Length
60
Diameter
12
