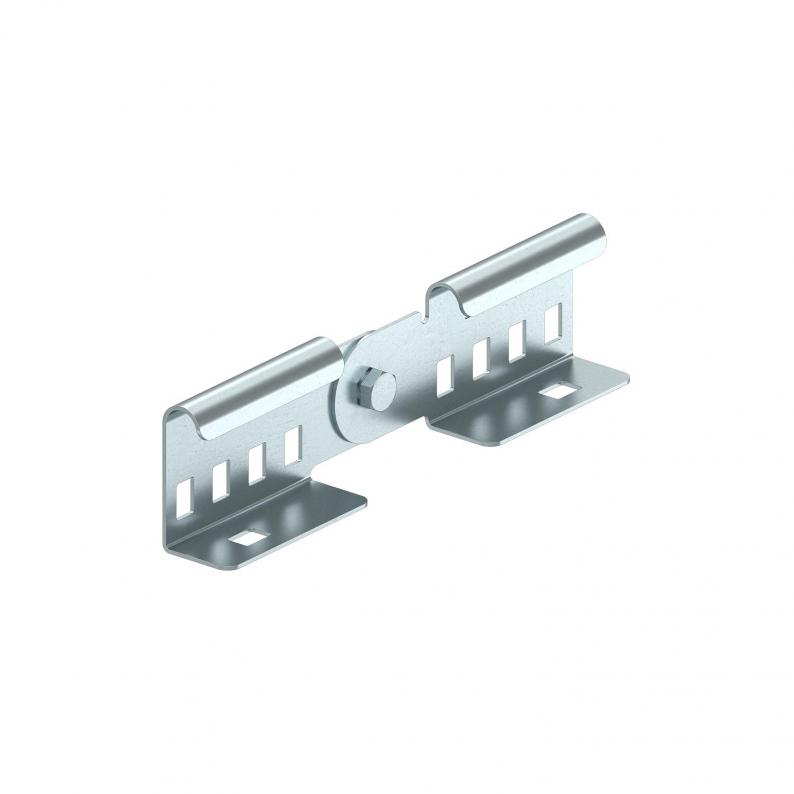

Adjustable connector 50 FS
Type LGVG 50 FS
|Item no. 6487315
|EAN 4012196513178
Item no. / Type
6487315 / LGVG 50 FS
Smallest selling unit: 10 piece
10piece
piece
Description
Adjustable connector as external connector to join cable ladders and fittings with a side height of 50 mm and continuous rail perforation. Angle can be adjusted vertically.
Technical data

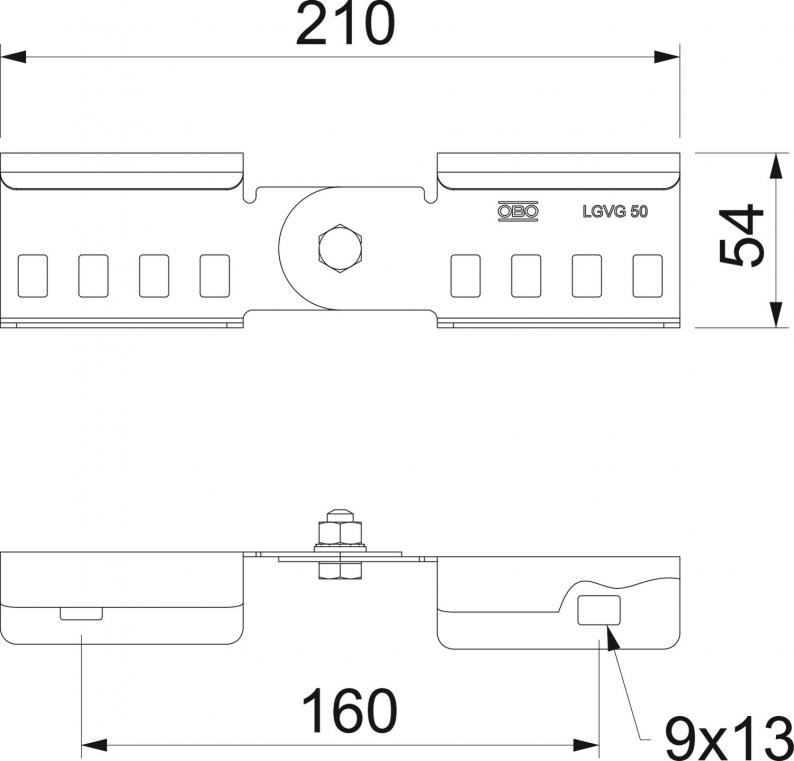

Dimensions
| Length | 210 mm |
|---|---|
| Height | 50 mm |
Technical data
| Suitable for cable tray system height | 50 mm |
|---|---|
| Dimension | 50 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Height
Item no.
LGVG 50 FS
50
6487315
LGVG 50 FS
Item no.
6487315
Height
50
