Adjustable connector 100 FT

Adjustable connector 100 FT

Type LGVG 100 FT
|
Item no. 6487309
|
EAN 4012196513161
Show all variants
Item no. / Type
6487309 / LGVG 100 FT

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

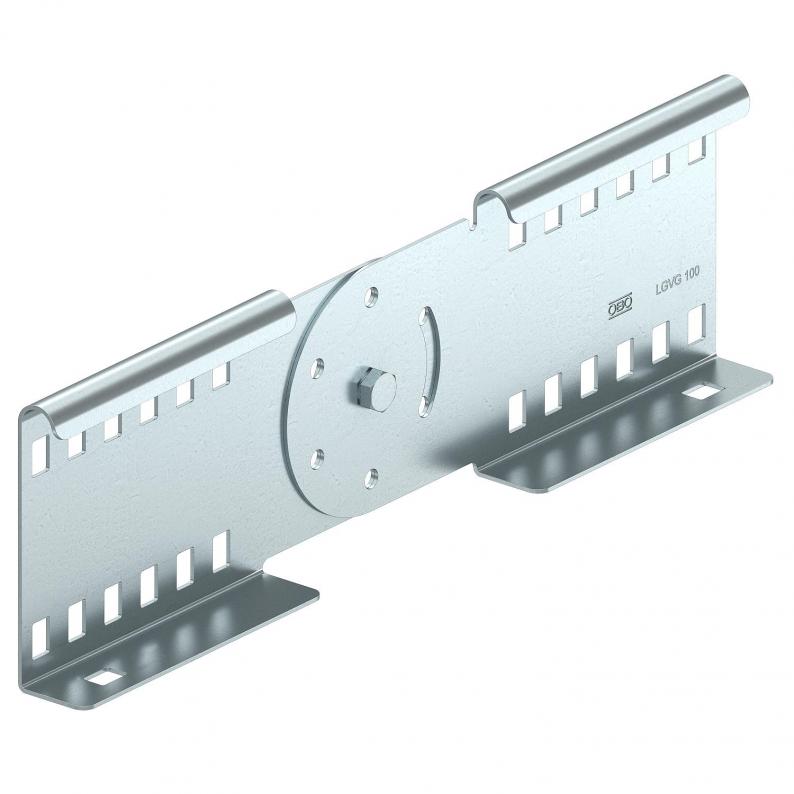

Adjustable connector as external connector to join cable ladders and fittings with a side height of 100 mm and continuous rail perforation. Angle can be adjusted vertically.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity

Technical data

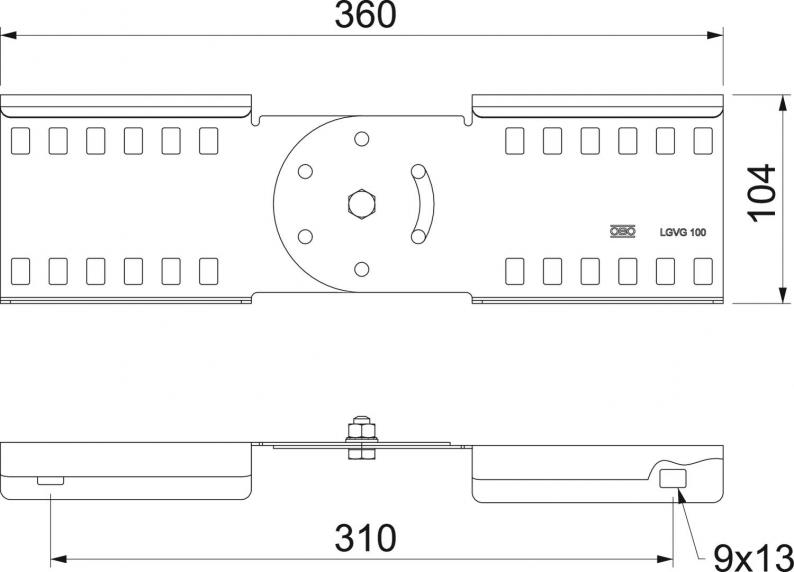

Dimensions

Length360 mm
Height100 mm

Technical data

Suitable for cable tray system height100 mm
Dimension100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (5)
Declarations (2)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

LGVG 100 FT
Item no.
6487309
Height
100
