Add-on tee 100, with cover FT
Type GKSAA 120 FT
|Item no. 6483452
|EAN 4012195509141
Item no. / Type
Width
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description

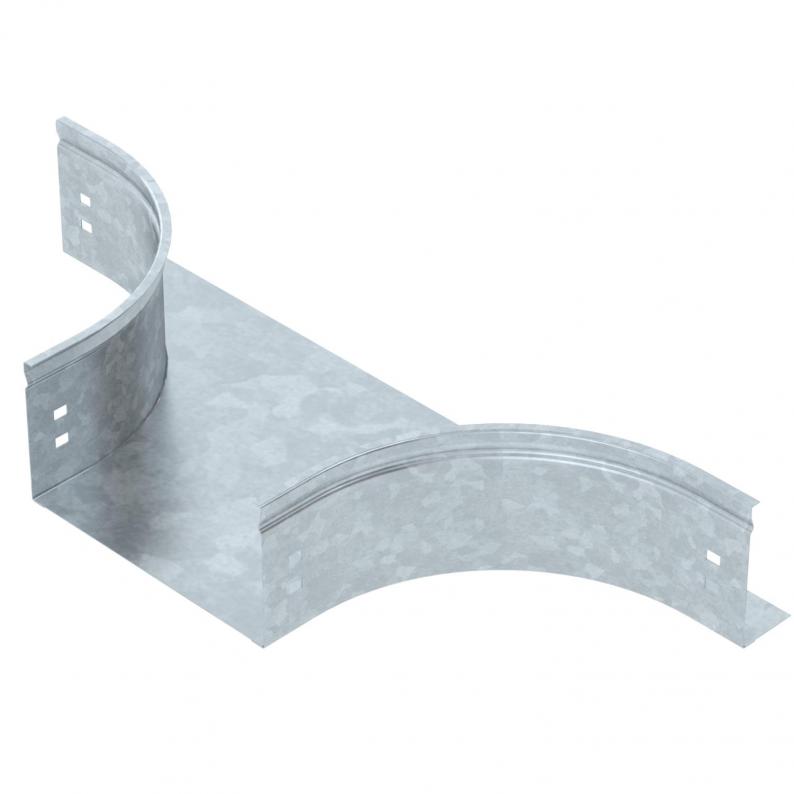

Add-on tee with cover for all GKS... cable tray types of 100 mm side height.
Technical data

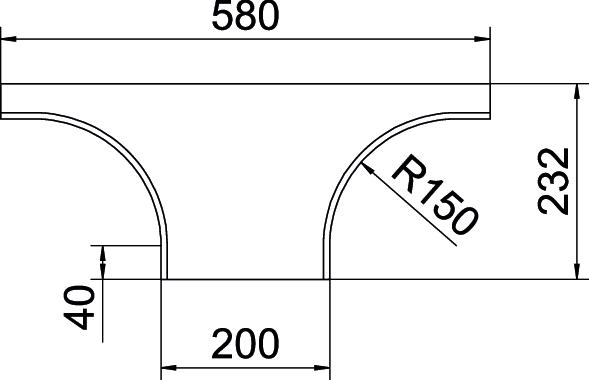

Dimensions
| Width | 200 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Dimension | 100x200 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Colour
Item no.
GKSAA 115 FT
150
zinc
6483451
GKSAA 120 FT
200
zinc
6483452
GKSAA 130 FT
300
zinc
6483453
GKSAA 140 FT
400
zinc
6483454
GKSAA 150 FT
500
zinc
6483455
