Add-on tee 100, with cover FS
Type GKSAA 120 FS
|Item no. 6480452
|EAN 4012195488750
Item no. / Type
Width
Smallest selling unit: 1 piece
1piece
piece
Description

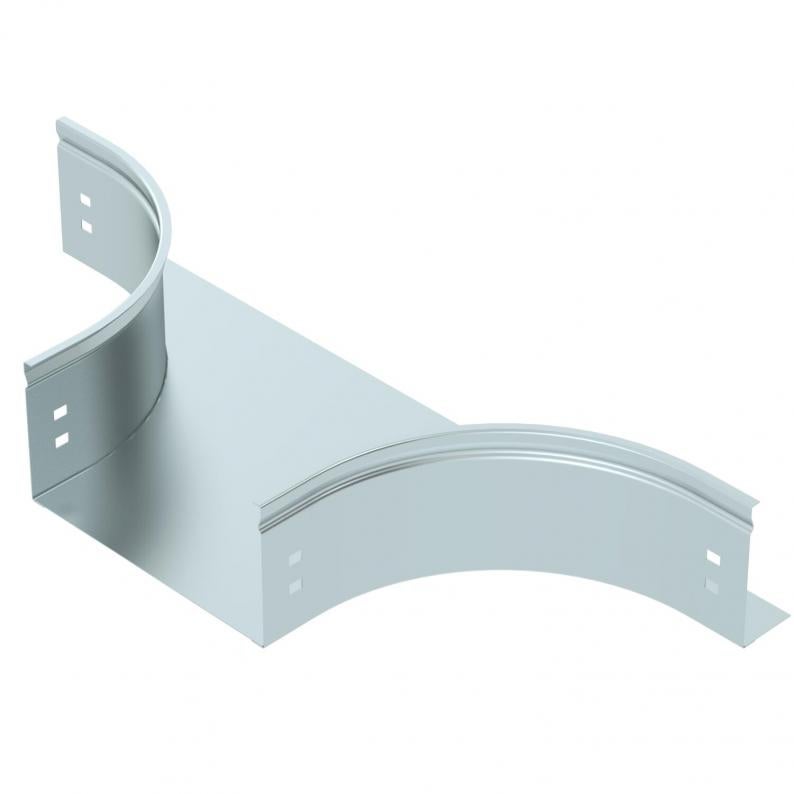

Add-on tee with cover for all GKS... cable tray types of 100 mm side height.
Technical data

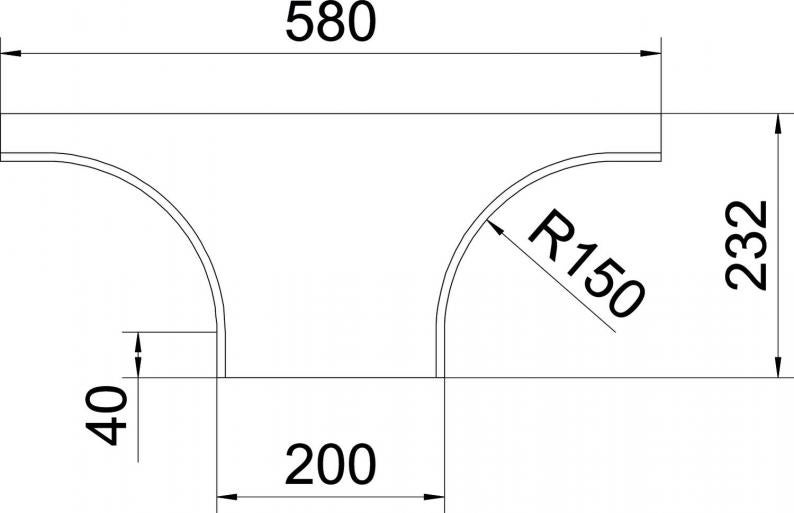

Dimensions
| Width | 200 mm |
|---|---|
| Height | 100 mm |
| Dimension B | 200 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Dimension | 100x200 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)
Variants
Type
Width
Colour
Item no.
GKSAA 115 FS
150
zinc
6480451
GKSAA 120 FS
200
zinc
6480452
GKSAA 130 FS
300
zinc
6480453
GKSAA 140 FS
400
zinc
6480454
GKSAA 150 FS
500
zinc
6480455
Width
GKSAA 115 FS
Item no.
6480451
Width
150
Colour
zinc
GKSAA 120 FS
Item no.
6480452
Width
200
Colour
zinc
GKSAA 130 FS
Item no.
6480453
Width
300
Colour
zinc
GKSAA 140 FS
Item no.
6480454
Width
400
Colour
zinc
GKSAA 150 FS
Item no.
6480455
Width
500
Colour
zinc
