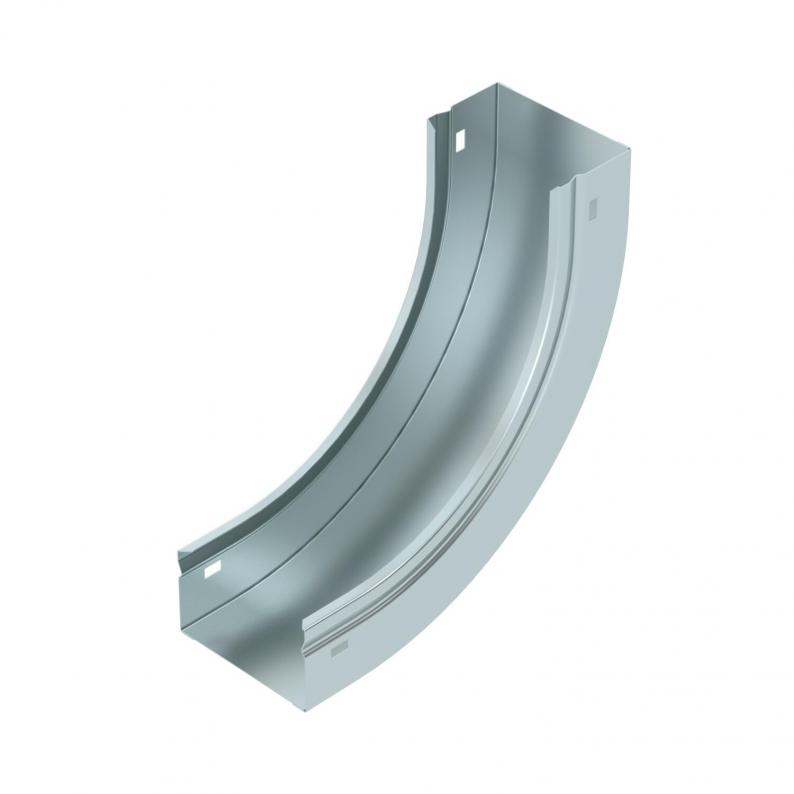

90° vertical bend, rising 60 FS

90° vertical bend, rising 60 FS

Type GKSBV 90610S FS
|
Item no. 6480201
|
EAN 4012195487258
Show all variants
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° rising vertical bend, for all GKS... cable tray types of 60 mm side height.

Technical data

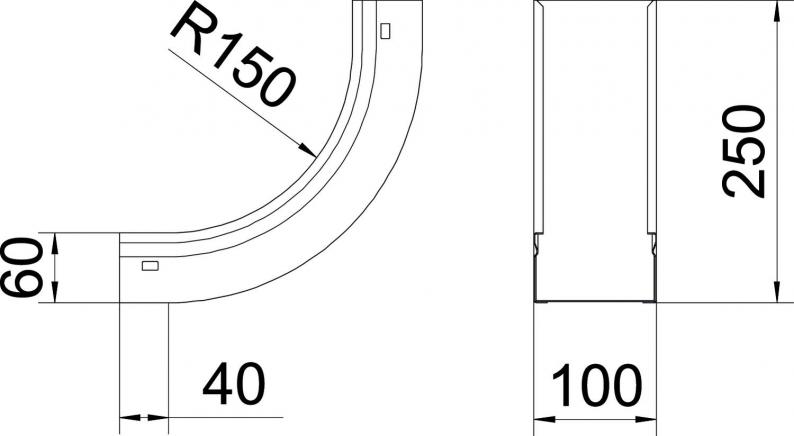

Dimensions

Width100 mm
Height60 mm
Dimension A250 mm
Dimension B100 mm
Dimension H60 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical rising
Dimension60x100
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSBV 90610S FS
Item no.
6480201
Width
100
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90615S FS
Item no.
6480202
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90620S FS
Item no.
6480203
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90630S FS
Item no.
6480204
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90640S FS
Item no.
6480205
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90650S FS
Item no.
6480206
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
