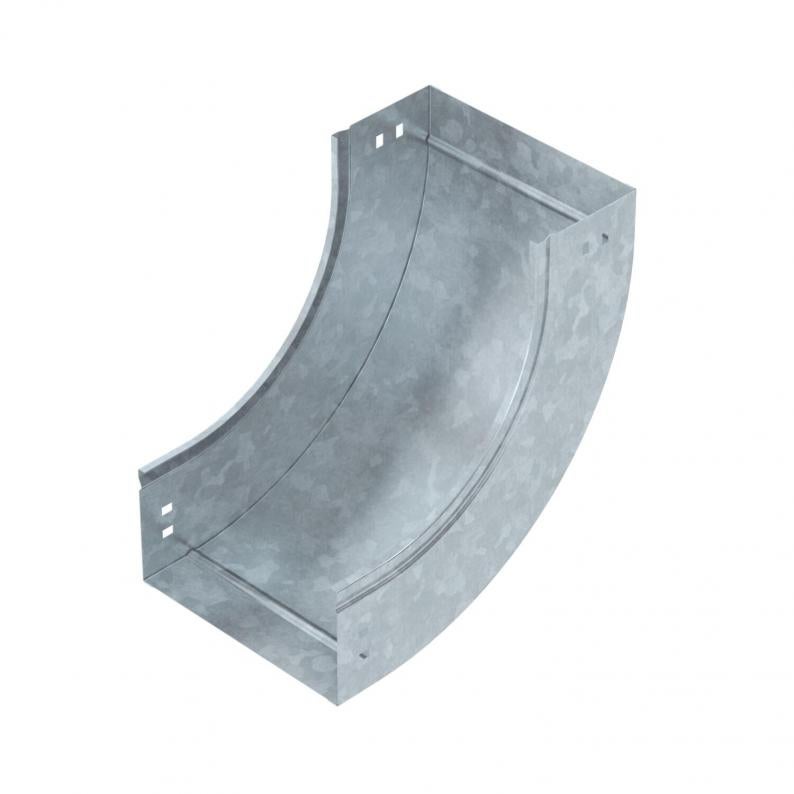

90° vertical bend, rising, 100 FT

90° vertical bend, rising, 100 FT

Type GKSBV 90120S FT
|
Item no. 6483223
|
EAN 4012195507550
Show all variants
Item no. / Type
Width

Smallest selling unit: 1 piece

piece

Description

90° rising vertical bend, for all GKS... cable tray types of 100 mm side height.


  • Communautés Européennes, EC declaration of conformity according to EC directives

Technical data

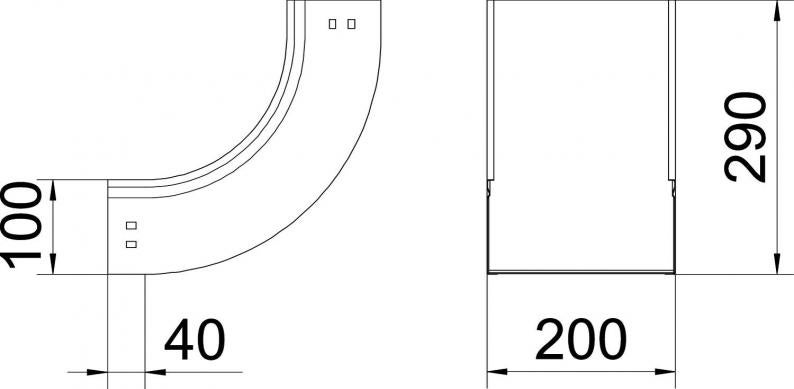

Dimensions

Width200 mm
Height100 mm
Dimension A295 mm
Dimension B200 mm
Dimension H100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical rising
Dimension100x200
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (1)

Variants

Width
GKSBV 90115S FT
Item no.
6483222
Width
150
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90120S FT
Item no.
6483223
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90130S FT
Item no.
6483224
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90140S FT
Item no.
6483225
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
GKSBV 90150S FT
Item no.
6483226
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
