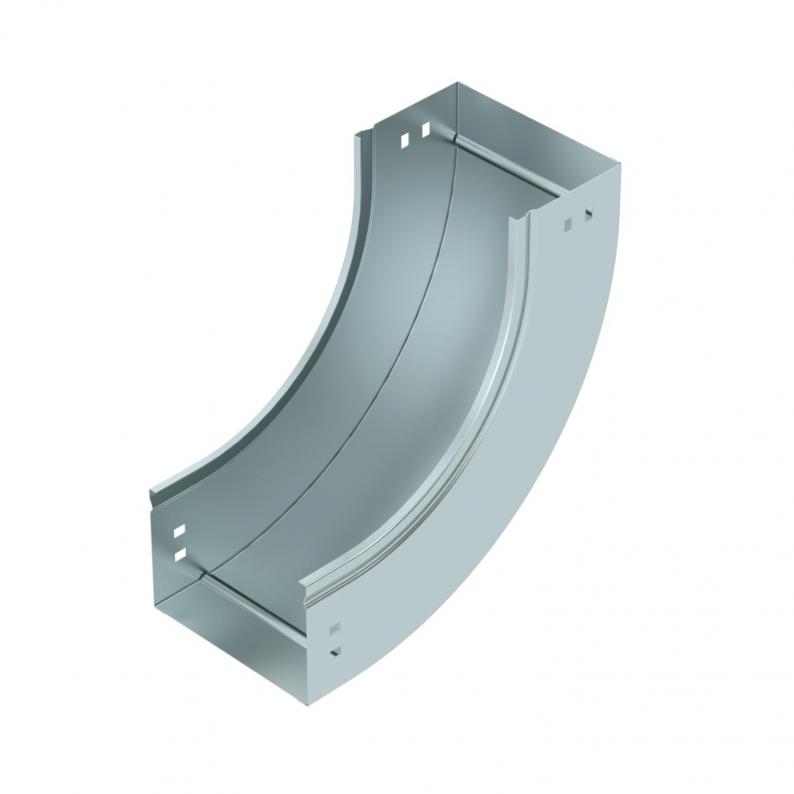

90° vertical bend, rising, 100 FS

90° vertical bend, rising, 100 FS

Type GKSBV 90115S FS
|
Item no. 6480222
|
EAN 4012195487395
Show all variants
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

90° rising vertical bend, for all GKS... cable tray types of 100 mm side height.


Technical data

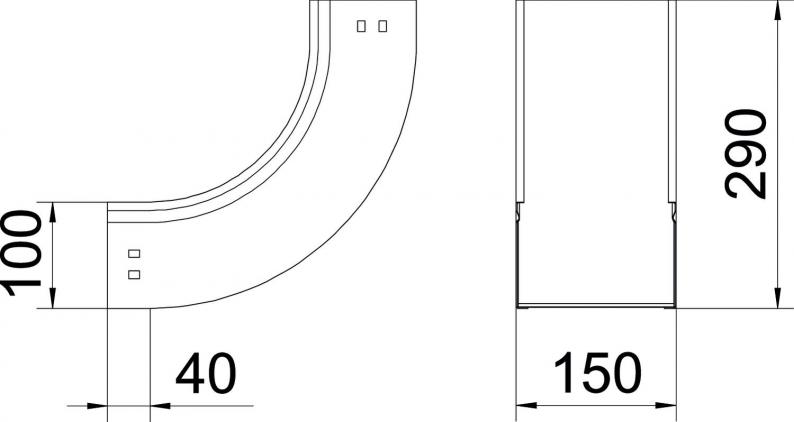

Dimensions

Width150 mm
Height100 mm
Dimension A295 mm
Dimension B150 mm
Dimension H100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionVertical rising
Dimension100x150
SurfaceStrip galvanized
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Width
GKSBV 90115S FS
Item no.
6480222
Width
150
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90120S FS
Item no.
6480223
Width
200
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90130S FS
Item no.
6480224
Width
300
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90140S FS
Item no.
6480225
Width
400
Surface
Strip galvanized
Material
Steel
Colour
zinc
GKSBV 90150S FS
Item no.
6480226
Width
500
Surface
Strip galvanized
Material
Steel
Colour
zinc
