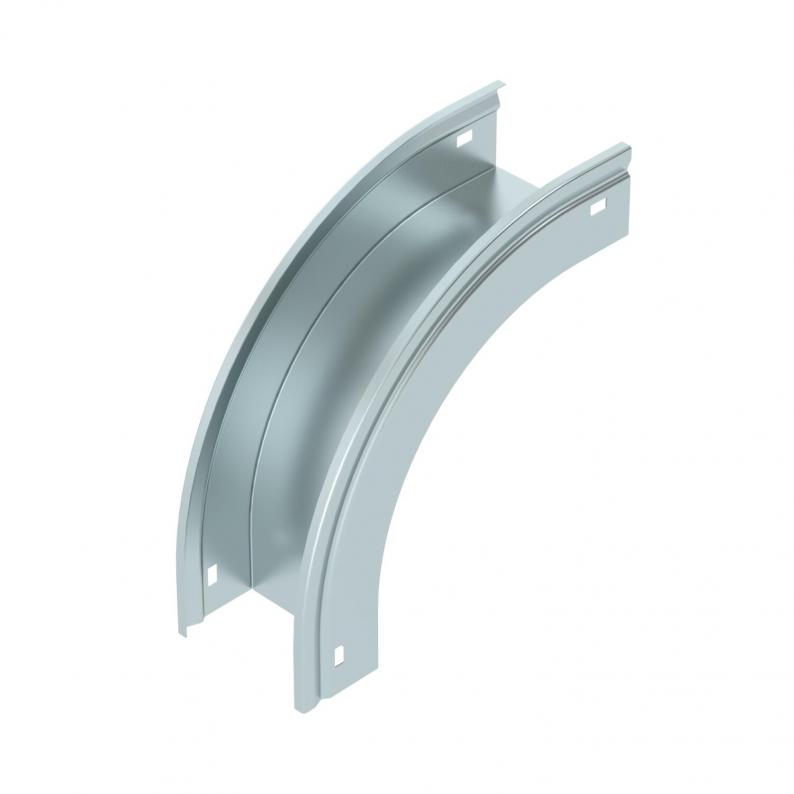

90° vertical bend, falling 60 FS
Type GKSBV 90610F FS
|Item no. 6480281
|EAN 4012195487753
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, falling, for all GKS... cable tray types of 60 mm side height.
Technical data

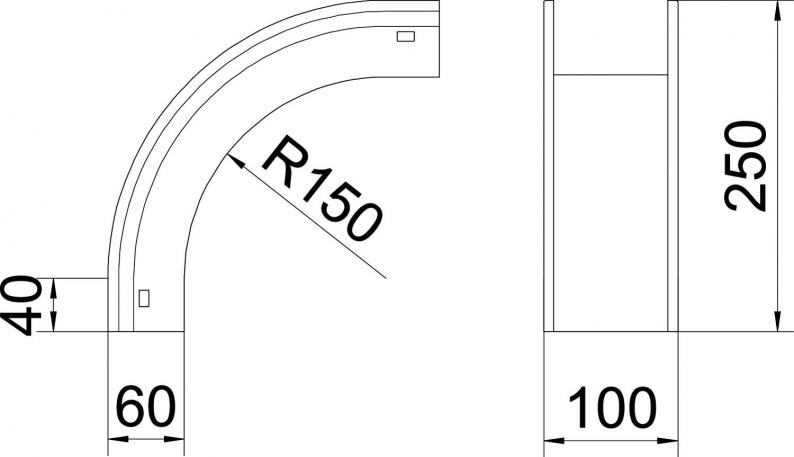

Dimensions
| Width | 100 mm |
|---|---|
| Height | 60 mm |
| Dimension A | 255 mm |
| Dimension B | 100 mm |
| Dimension H | 60 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, falling |
| Dimension | 60x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSBV 90610F FS
100
Strip galvanized
Steel
zinc
6480281
GKSBV 90615F FS
150
Strip galvanized
Steel
zinc
6480282
GKSBV 90620F FS
200
Strip galvanized
Steel
zinc
6480283
GKSBV 90630F FS
300
Strip galvanized
Steel
zinc
6480284
GKSBV 90640F FS
400
Strip galvanized
Steel
zinc
6480285
GKSBV 90650F FS
500
Strip galvanized
Steel
zinc
6480286
