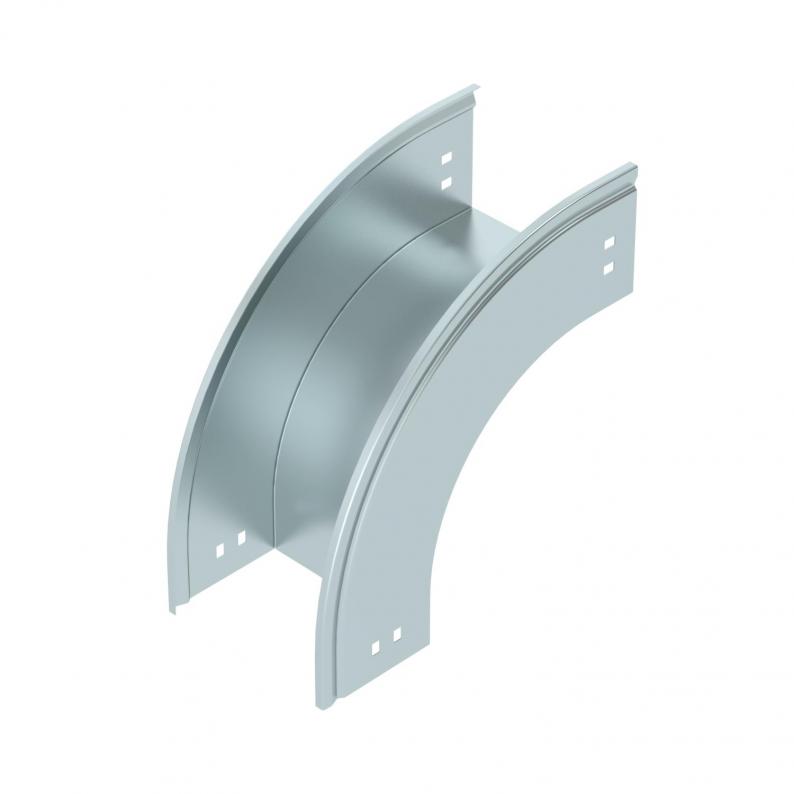

90° vertical bend, falling 100 FS
Type GKSBV 90115F FS
|Item no. 6480302
|EAN 4012195487890
Item no. / Type
Width
Surface
Strip galvanized
Material
Steel
Colour
zinc
Smallest selling unit: 1 piece
1piece
piece
Description
90° vertical bend, falling, for all GKS... cable tray types of 100 mm side height.
Technical data

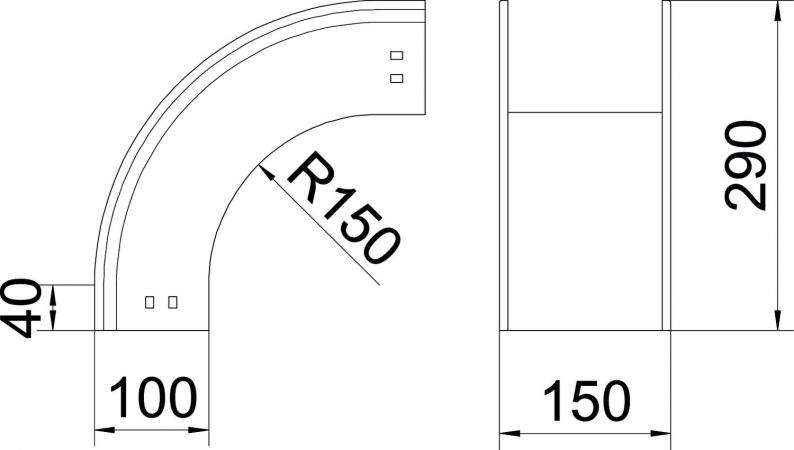

Dimensions
| Width | 150 mm |
|---|---|
| Height | 100 mm |
| Dimension A | 295 mm |
| Dimension B | 150 mm |
| Dimension H | 100 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Side perforation | no |
| Connector version | Without connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Vertical, falling |
| Dimension | 100x150 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (6)
Declarations (1)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)
Variants
Type
Width
Surface
Material
Colour
Item no.
GKSBV 90115F FS
150
Strip galvanized
Steel
zinc
6480302
GKSBV 90120F FS
200
Strip galvanized
Steel
zinc
6480303
GKSBV 90130F FS
300
Strip galvanized
Steel
zinc
6480304
GKSBV 90140F FS
400
Strip galvanized
Steel
zinc
6480305
GKSBV 90150F FS
500
Strip galvanized
Steel
zinc
6480306
