90° Quick pipe bend, pure white

90° Quick pipe bend, pure white

Type 3000 BMS M16 RW
|
Item no. 2154062
|
EAN 4012196869817
Show all variants
Item no. / Type

Smallest selling unit: 10 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

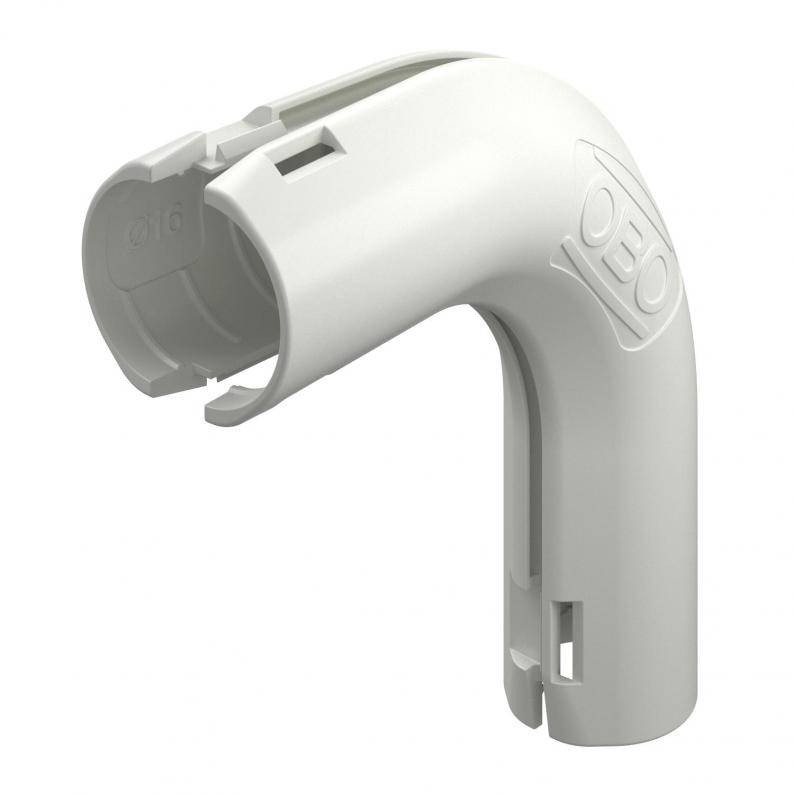

Fitting for plastic electrical installation pipes to create 90° bends. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

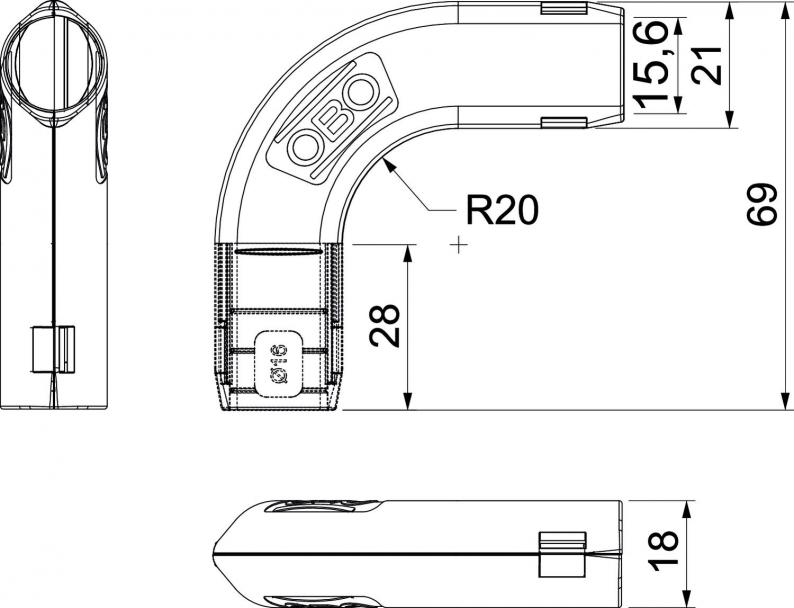

Dimensions

Dimension L69 mm
Dimension d15,6 mm
Dimension B21,4 mm
Dimension R20 mm
Dimension L128 mm

Technical data

Halogen-freeyes
Angle of the bend90 °
Polished surfaceno
With sleeveno
Flexibleno
Brushed surfaceno
With inspection opening and lidno
Two-partyes
Version forConnector
Permitted temperature range, min.0 °C
Permitted temperature range, max.60 °C
DimensionM16
MaterialPolypropylene
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,0295 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (2)

Variants

3000 BMS M16 RW
Item no.
2154062
3000 BMS M25 RW
Item no.
2154066
3000 BMS M20 RW
Item no.
2154064
3000 BMS M32 RW
Item no.
2154068
